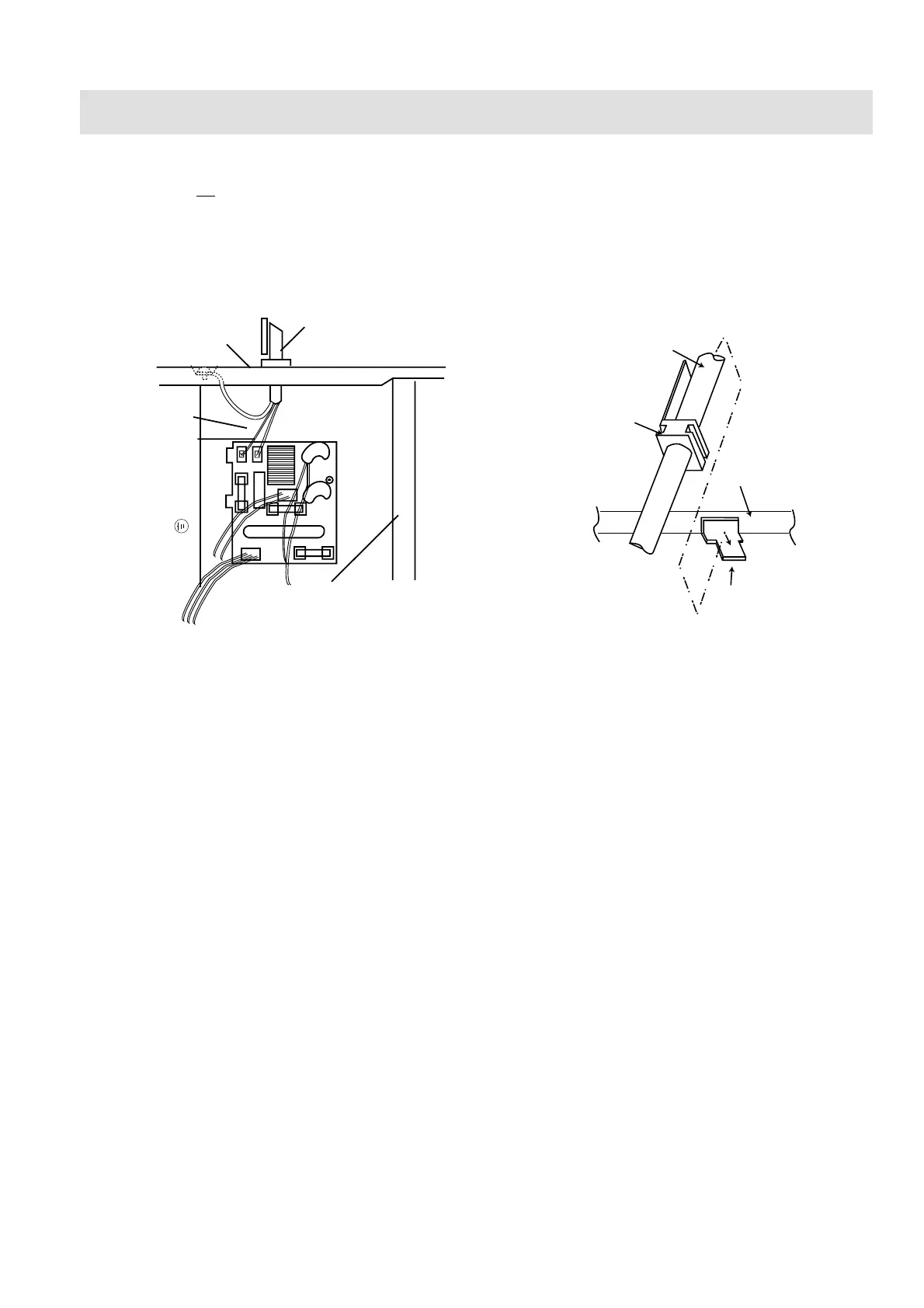

Figure C-5 (a) Replacement of Power Supply Cord Figure C-5 (b) Replacement of Power Supply Cord
COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE
OVEN CAVITY
BACK PLATE
SQUARE HOLE
MOULDING
CORD
STOPPER
POWER
SUPPLY
CORD
POWER SUPPLY CORD REPLACEMENT
Removal
1. CARRY OUT
3D CHECKS.
2. Remove the single (1) screw holding the green/yellow
wire to the cavity.
3. Disconnect the leads of the power supply cord from the
noise filter, referring to the Figure C-5 (a).
4. Release the power supply cord from the rear cabinet.
5. Now, the power supply cord is free.
Re-install
1. Insert the moulding cord stopper of power supply cord
into the square hole of the rear cabinet, referring to the
Figure C-5 (b).
2. Install the earth wire lead of power supply cord and the
earth angle to the cavity with one (1) screw and tight the
screw.
3. Connect the brown and blue wire leads of power supply
cord to the noise filter correctly, referring to the Pictorial
Diagram.
OVEN CAVITY
BACK PLATE
BROWN WIRE
NOISE FILTER
POWER SUPPLY CORD
BLUE WIRE
CHASSIS SUPPORT
