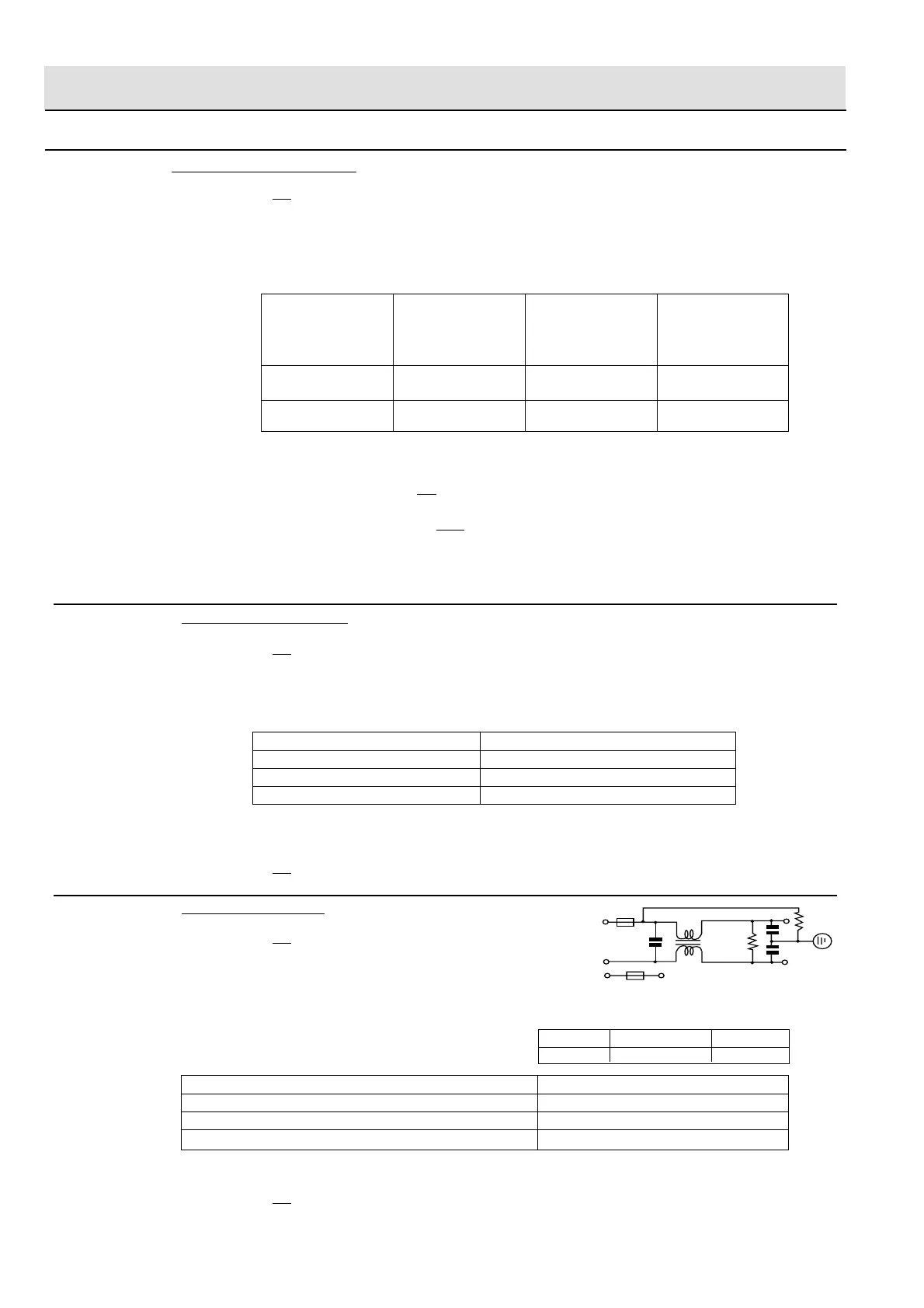

Disconnect the leads from the terminals of the thermal cut-out. Then using an ohmmeter, make a
continuity test across the two terminals as described in the below.
CARRY OUT 4R CHECKS
Table: Thermal Cut-out Test
Temperature of Temperature of Indication of
"ON" condition "OFF" condition ohmmeter
Parts Name (closed circuit). (open circuit). (When room
(˚C) (˚C) temperature is
approx. 20˚C.)
Thermal cut-out Below 130˚C Above 150˚C Closed circuit
150˚C TC1
Thermal cut-out This is not resetable Above 125˚C Closed circuit
125˚C TC2 type
H MOTOR WINDING TEST
CARRY OUT
3D CHECKS
Disconnect the leads from the motor. Using an ohmmeter, check the
resistance between the two terminals as described in the table below.
I NOISE FILTER TEST
CARRY OUT
3D CHECKS
Disconnect the leads from the terminals of
noise filter.
Using an ohmmeter, check between the ter-
minals as described in the following table.
MEASURING POINTS INDICATION OF OHMMETER
Between N and L Approx. 680 kΩ
Between terminal N and WHITE Short circuit
Between terminal L and RED Short circuit
L (min) Cx ± 20% Cy ± 20%
1.0mH 0.22µF 4700pF
Table: Resistance of Motor
Motors Resistance
Fan motor Approximately 292Ω
Turntable motor Approximately 14.5kΩ
Convection fan motor Approximately 290 Ω
If incorrect readings are obtained, replace the thermal cut-out.
An open circuit thermal cut-out (MG)
TC2 indicates that the magnetron has overheated, this may be due
to resistricted ventilation, cooling fan failure.
An open circuit thermal cut-out (OVEN)
TC1 indicates that the oven cavity has overheated, this may be
due to no load operation.
If incorrect readings are obtained, replace the motor.
CARRY OUT
4R CHECKS
R1: 10 MΩ ± 20%
R2 : 680 kΩ ± 20%
If incorrect readings are absorbed, replace the noise filter unit.
CARRY OUT
4R CHECKS
RED
WHT
L
L
R1
L
R2
N
Cx
Cy
R1: 10M ohm ± 20%
R2: 680k ohm ± 20%
F8A
20A
