Sharp R-84ST Service Manual

8
R-84ST -

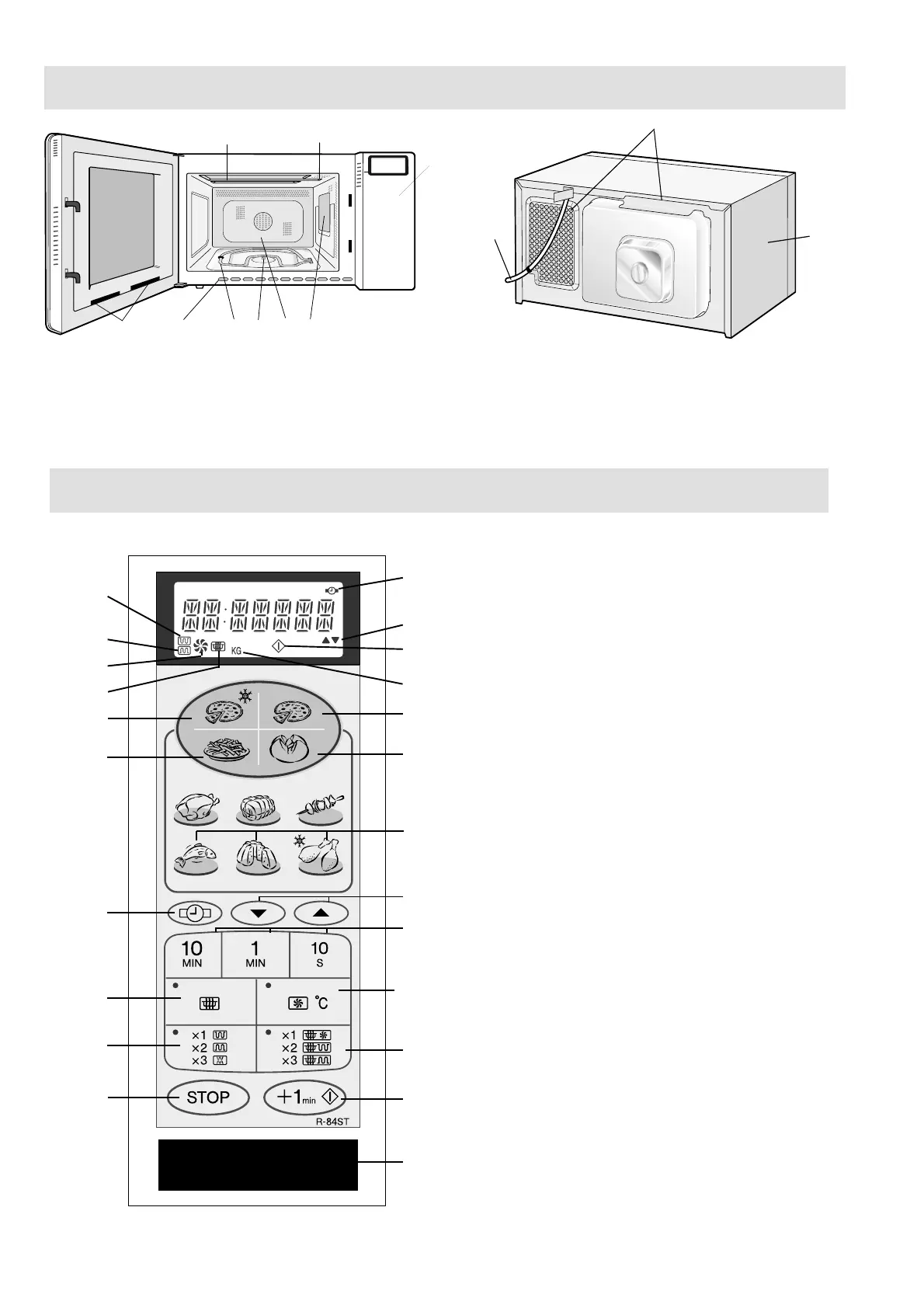

APPEARANCE VIEW
OVEN
CONTROL PANEL
Digital display and indicators:
1 TOP GRILL indicator
2 BOTTOM GRILL indicator
3 CONVECTION indicator
4 MICROWAVE indicator
5 WEIGHT indicator
6 COOKING IN PROGRESS indicator
7 LESS/MOREindicator
8 CLOCK SETindicator
Operating buttons:
9 FRESH PIZZA/FRESH QUICHE key
10 BOILED/JACKET POTATOES key
11 INSTANT ACTION keys
12 LESS/MORE buttons
13 TIME keys
14 CONVECTION key
Press to change the convection setting
15 DUAL MODE key:
1 PRESS = MICROWAVE & CONVECTION
2 PRESSES = MICROWAVE & TOP GRILL
3 PRESSES = MICROWAVE & BOTTOM GRILL
16 +1 MIN/ START button
17 DOOR OPEN button
18 STOP key
19 GRILL MODE key:
1 PRESS = TOP GRILL
2 PRESSES = BOTTOM GRILL
3 PRESSES = TOP & BOTTOM GRILL
20 MICROWAVE POWER LEVEL key
Press to change the microwave power setting
21 CLOCK SETTING key
22 FRENCH FRIED POTATO key
23 FROZEN PIZZA/FROZEN QUICHE key
4
3
2
1
8
23
22
11
21
13
12
20
19
18
17
10
12
11
1. Grill heating element (top grill)
2. Oven lamp
3. Control panel
4. Waveguide cover
5. Oven cavity
6. Turntable motor shaft
7. Grill heating element (bottom grill)
8. Air-vent openings
9. Door seals
10. Air vent openings
11. Outer cabinet
12. Power cord
1
2
3
4
6598
7
3
5
6
7
15
14
9
10
16
