27
R-930CS

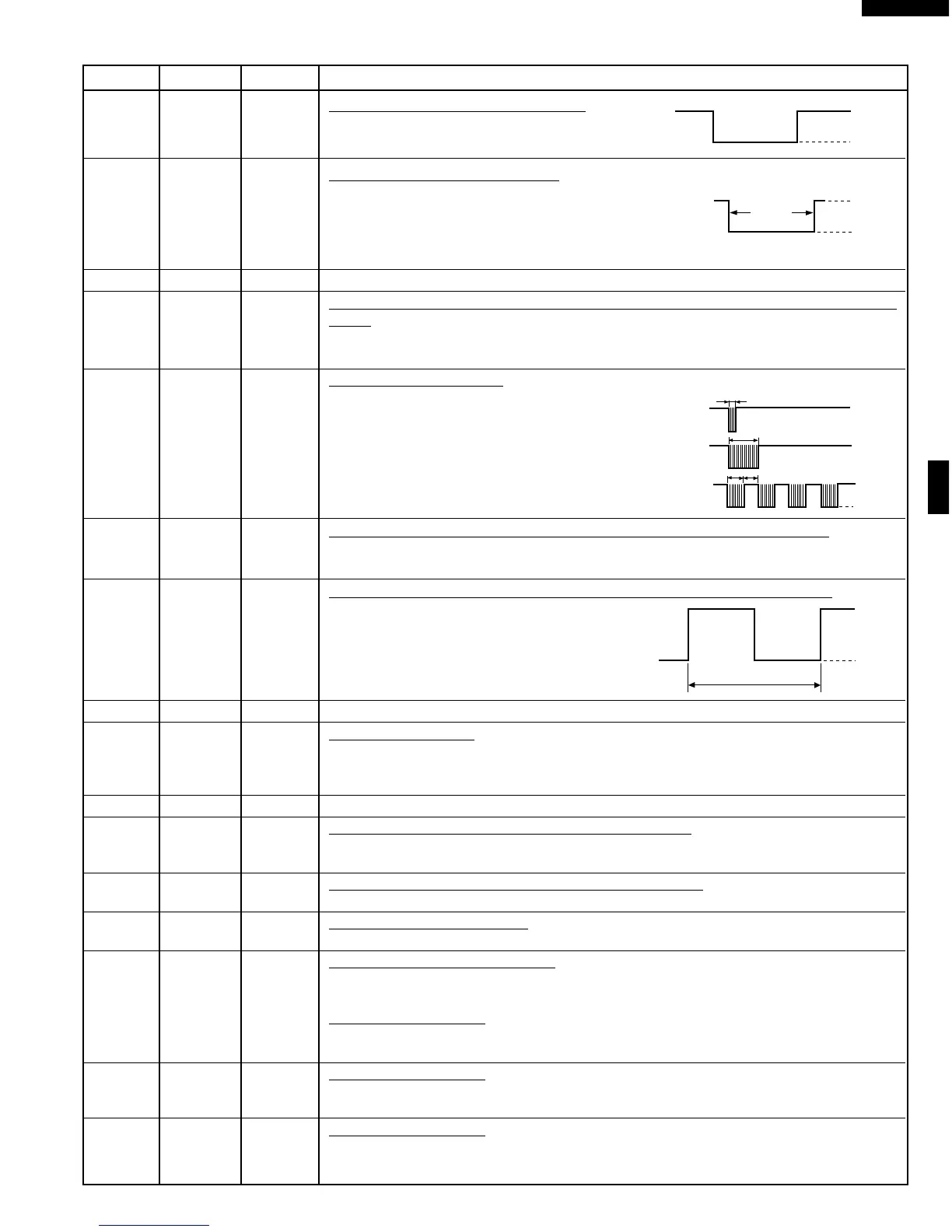

Pin No. Signal I/O Description
18 P50 OUT Damper motor relay driving signal.
To turn on and off shut-off relay(RY4).
19 P47 OUT Heating element driving signal.
To turn on and off shut-off relay(RY3). "L" level
during convection cooking; "H" level otherwise. Dur-
ing convection cooking, the signal becomes "H" level
when the temperature of the oven cavity exceeds the
predetermined temperature.
20-21 P46-P45 OUT Terminal not used.
22 P44 OUT Timing signal output terminal for temperature measurement(OVEN THERMIS-
TOR).
"H" level (GND) : Thermistor OPEN timing.
"L" level (-5V) : Temperature measuring timing.(Convection cooking)
23 P43 OUT Signal to sound buzzer.
A: key touch sound.
B: Completion sound.
C: When the temperature of the oven cav-
ity reaches the preset temperature in
the preheating mode, or when the
preheating hold time (30 minutes) is
elapsed.
24 P42 OUT Timing signal output terminal for temperature measurement(OVEN).
"H" level (GND) : Thermistor OPEN timing.
"L" level (-5V) : Temperature measuring timing.(Convection cooking)
25 INT1 IN Signal to synchronize LSI with commercial power source frequency.
This is the basic timing for all real time
processing of LSI.
26 P40 IN Connected to GND.
27 RST IN Auto clear terminal.
Signal is input to reset the LSI to the initial state when power is applied. Temporarily
set to "L" level the moment power is applied, at this time the LSI is reset. Thereafter
set at "H" level.
28/29 XCIN/XCOUT OUT Terminal not used.
30 XIN IN Internal clock oscillation frequency setting input.
The internal clock frequency is set by inserting the ceramic filter oscillation circuit with
respect to XOUT terminal.
31 XOUT OUT Internal clock oscillation frequency control output.
Output to control oscillation input of XIN.
32 VSS IN Power source voltage: -5V.
VC voltage of power source circuit input.
33 P27 IN Signal coming from touch key.
When any one of G-1 line keys on key matrix is touched, a corresponding signal from
P10 - P17 will be input into P27. When no key is touched, the signal is held at "L" level.
34 P26 IN Signal similar to P27.
When any one of G-2 line key on key matrix is touched, a corresponding signal will be
input into P26.
35 P25 IN Signal similar to P27.
When any one of G-3 line key on key matrix is touched, a corresponding signal will be
input into P25.
36 P24 IN Signal similar to P27.
When any one of G-4 line key on key matrix is touched, a corresponding signal will be
input into P24.
ON
OFF
H : GND
L
ON
OFF
During
cooking
L
GND
H.
(Convection)
A
B
C
H: GND
L
0.1 sec
2.0 sec
1.0 sec
1.0 sec
16.7 msec.
H : GND
L (-5V)
To Next Page
