Electrical Requirements
The electrical requirements are a 115 -120 volt 60 Hz, AC only,
15 or 20 amp. fused electrical supply. It is recommended that a separate
circuit serving only this appliance be provided. When installing this
appliance, observe all applicable codes and ordinances.
A short power-supply cord is provided to reduce risks of becoming
entangled in or tripping over a longer cord.
Where a two-pronged wall-receptacle is encountered, it is the personal
responsibility and obligation of the customer to contact a qualified
electrician and have it replaced with a properly grounded three-pronged
wall receptacle or have a grounding adapter properly grounded and
polarized. If an extension cord must be used, it should be a 3-wire, 15
amp. or more cord. Do not drape over a countertop or table where it can
be pulled on by children or tripped over accidentally.
3-Pronged Plug
Grounded
Receptacle Box
Grounding Pin
3-Pronged Receptacle
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING PRONG FROM
THIS PLUG.

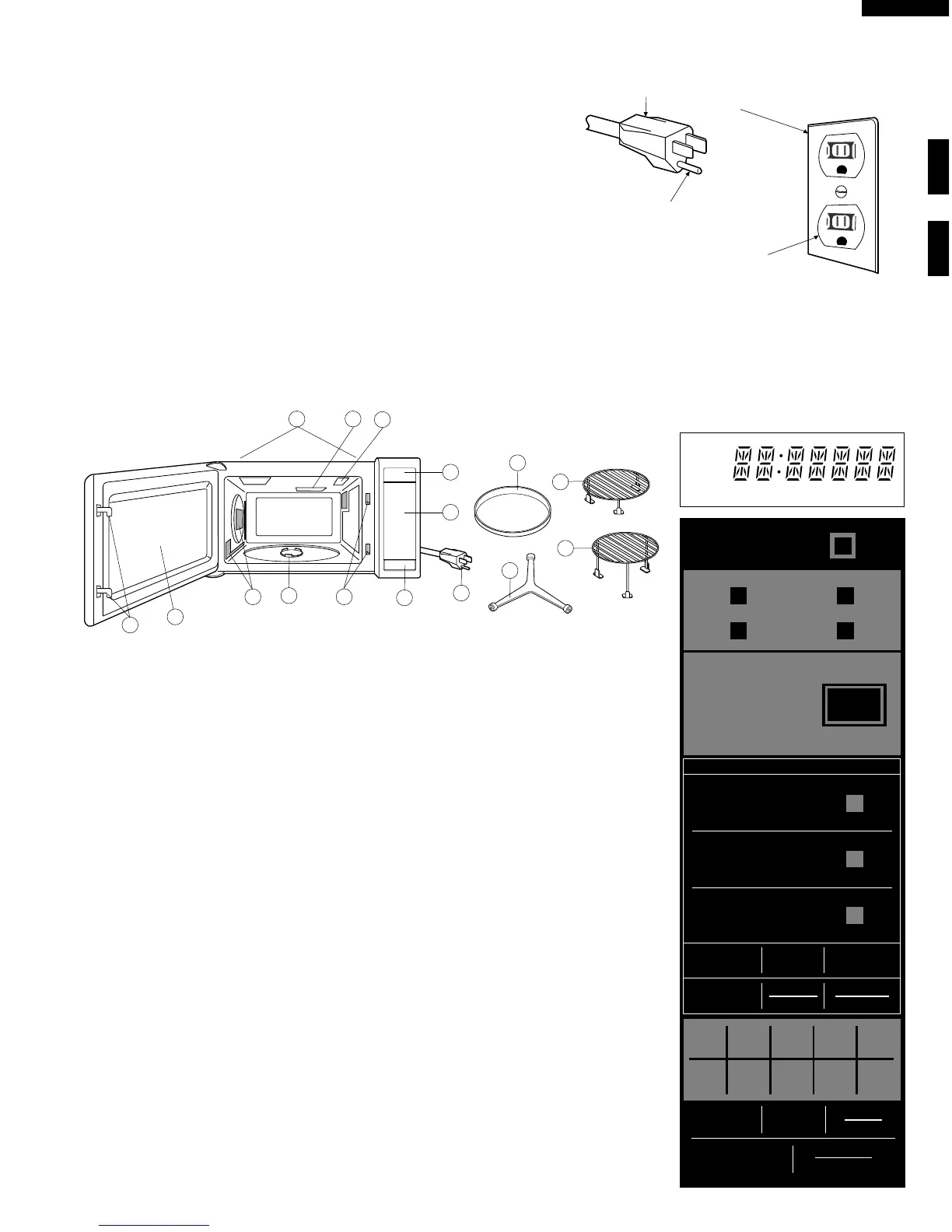

OVEN DIAGRAM
1. Ventilation openings. (Rear side)
2. Oven door with see-through window.
3. Oven lamp.
4. Turntable support.
5. Removable turntable.
The turntable will rotate clockwise or
counterclockwise.
6. Safety door latches.
The oven will not operate unless the door is
securely closed.
7. Wave guide cover.
8. Door open button.
9. Auto-Touch control panel.
10. Lighted digital display.
11. Convection air openings.
12. Removable low rack. (Broiling trivet)
13. Removable low rack. (Baking rack)
14. Power supply cord.
15. Turntable motor shaft.
TOUCH CONTROL PANEL
MIX CONV
DEFROST
SENSOR
COOK LBS OZ KG HELP
Sensor
Cook
Convection
Sensor Reheat
Popcorn
Elevate PKG
Minute Plus
Compu Defrost
Preheat Convec Broil
Slow
Cook
Kitchen
Timer
Power
Level
Clock
Low Mix
Bake
Stop
Clear
Start
Touch On
High Mix
Roast
1 Baked potatoes
2 Frozen vegetables
3 Fresh veg-soft
4 Fresh veg-hard
5 Frozen entrees
6 Hot dogs
7 Bacon
8 Fish, seafood
1 Hamburgers
2 Chicken pieces
3 Steaks
4 Fish steaks
1 Chicken
2 Turkey
3 Turkey breast
4 Pork
1 Bundt cake
2 Cookies
3 Muffins
4 French fries
Interactive
12345
67890
100˚F 150˚F 275˚F 300˚F 325˚F
350˚F 375˚F 400˚F 425˚F 450˚F
Compu
Broil
Compu
Roast
Compu
Bake
Custom
Help
1
7
3
10
9
8
2
5
4
12
13
14
15
11 6
6
