R-9320 R -$

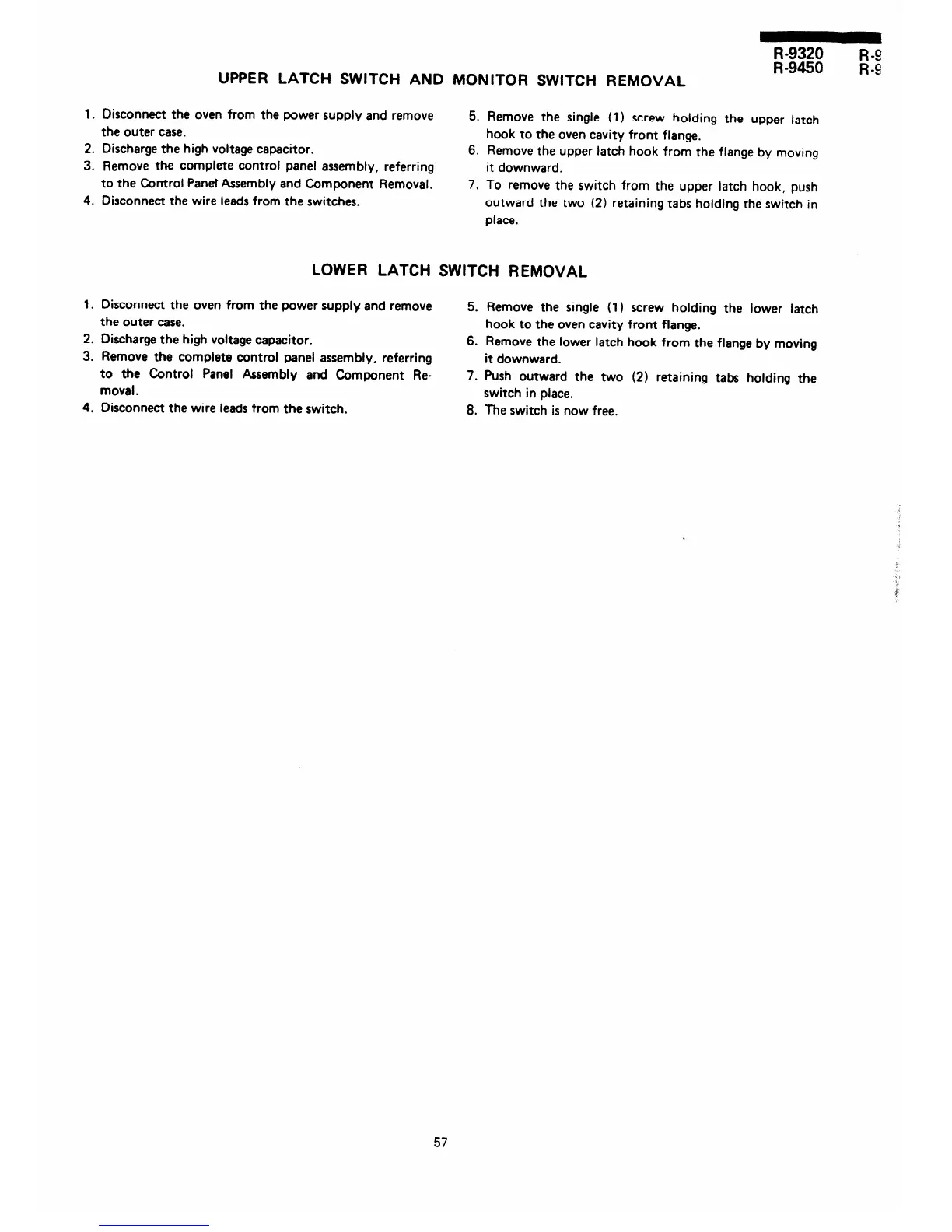

UPPER LATCH SWITCH AND MONITOR SWITCH REMOVAL
R-9450 R-e
1. Disconnect the oven from the power supply and remove
the outer case.
2. Discharge the high voltage capacitor.
3. Remove the complete control panel assembly, referring
to the Control PaneC Assembly and Component Removal.
4. Disconnect the wire leads from the switches.
5. Remove the single (1) screw holding the upper latch
hook to the oven cavity front flange.
6. Remove the upper latch hook from the flange by moving
it downward.
7. To remove the switch from the upper latch hook, push
outward the two (2) retaining tabs holding the switch in
place.
LOWER LATCH SWITCH REMOVAL
I, Disconnect the oven from the power supply and remove
the outer case.
2. Discharge the high voltage capacitor.
3. Remove the complete control panel assembly, referring
5. Remove the single (1) screw holding the lower latch
hook to the oven cavity front flange.
6. Remove the lower latch hook from the flange by moving
it downward.
to the Control Panel Assembly and Component Re-
7. Push outward the two (2) retaining tabs holding the
moval.
switch in place.
4. Disconnect the wire leads from the switch.
8. The switch is now free.
57
