Sharp R-950A Service Manual

R-950A
18
TEST PROCEDURES
PROCEDURE
LETTER
COMPONENT TEST

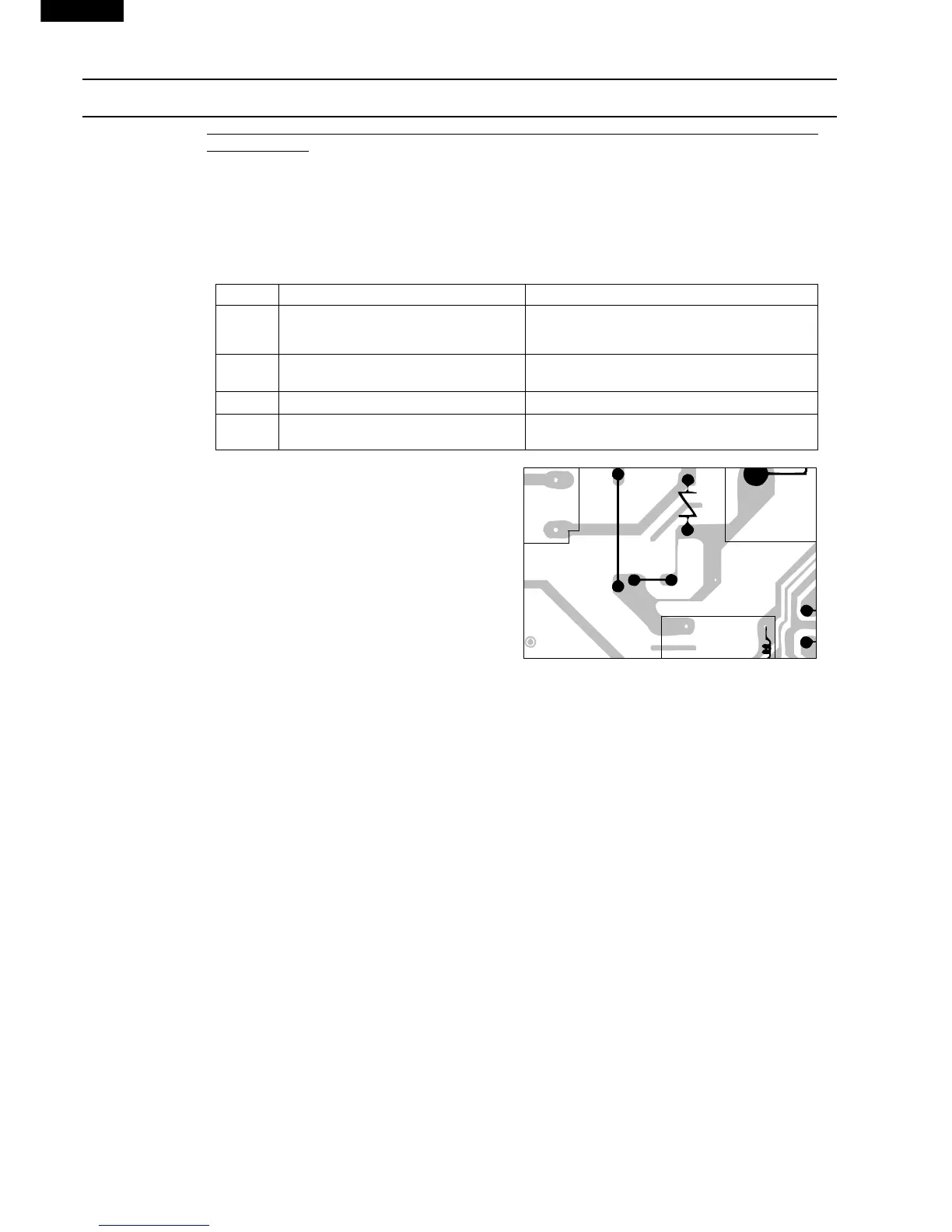

To protect the electronic circuits, this model is provided with a fine foil pattern added to the primary
on the PWB, this foil pattern acts as a fuse. If the foil pattern is open, follow the troubleshooting guide
given below for repair.
Problem: POWER ON, indicator does not light up.
Q PROCEDURES TO BE TAKEN WHEN THE FOIL PATTERN ON THE PRINTED WIRING BOARD
(PWB) IS OPEN
STEPS OCCURRENCE CAUSE OR CORRECTION
1 The rated voltage is not applied between Pin Check supply voltage and oven power cord.
No. 7 of the 4-pin connector (A) and the
common terminal of the relay RY1.
2 The rated voltage is applied to primary Power transformer or secondary circuit defective.
side of power transformer. Check and repair.
3 Only pattern at "a" is broken. *Insert jumper wire J1 and solder.
4 Pattern at "a" and "b" are broken. *Insert the coil RCILF2003YAZZ between "c" and "d".
NOTE: *At the time of making these repairs,
make a visual inspection of the varistor.
check for burned damage and examine
the transformer with an ohmmeter for
the presence of layer short-circuit
(check primary coil resistance). If any
abnormal condition is detected, replace
the defective parts.
RY6
a
b
c
d
3
T1
CN - A
34
VRS1
7

Sharp R-950A Specifications

Power

ac line voltage	220 V
microwave frequency	2450 MHz
ac power required (microwave)	1.6 kW
ac power required (convection)	1.6 kW
ac power required (grill)	1.05 kW
ac power required (simul)	3.15 kW

Oven Specifications

oven capacity	41 litre
output power (microwave)	900 W
output power (convection heater)	1500 W
output power (grill heater)	1000 W

Weight and Dimensions

width	627 mm
height	378 mm
depth	492 mm
cavity width	410 mm
cavity height	245 mm
cavity depth	410 mm
weight	29 kg
