Sharp R-950A Service Manual

R-950A
29
Note: After any service to the door;
(A)Make sure that the upper and lower latch switches are
operating properly.
(Refer to chapter “Test Procedures”.)
(B)An approved microwave survey meter should be used
to assure compliance with proper microwave radiation
emission limitation standards.
DOOR ADJUSTMENT
The door is adjusted by keeping the screws of each hinge
loose. The lower oven hinge can be loosened.
After adjustment, make sure of the following :
1. Door latch heads smoothly catch the latch hook through
the latch holes, and the latch head goes through the
center of the latch hole.
2. Deviation of the door alignment from horizontal line of
cavity face plate is to be less than 1.0mm.
3. The door is positioned with its face depressed toward
the cavity face plate.
4. Re-install outer case and check for microwave leakage
around the door with an approved microwave survey
meter. (Refer to Microwave Measurement Procedure.)
Note: The door on a microwave oven is designed to act
as an electronic seal preventing the leakage of
microwave energy from the oven cavity during the
cook cycle. This function does not require that the
door be air-tight, moisture (condensation)-tight or
light-tight. Therefore, the occasional apperance of
moisture, light or the sensing of gentle warm air
movement around the oven door is not abnormal
and do not of themselves, indicate a leakage of
microwave energy from the oven cavity. If such
were the case, your oven could not be equipped
with a vent, the very purpose of which is to exhaust
the vapor-laden air from the oven cavity.

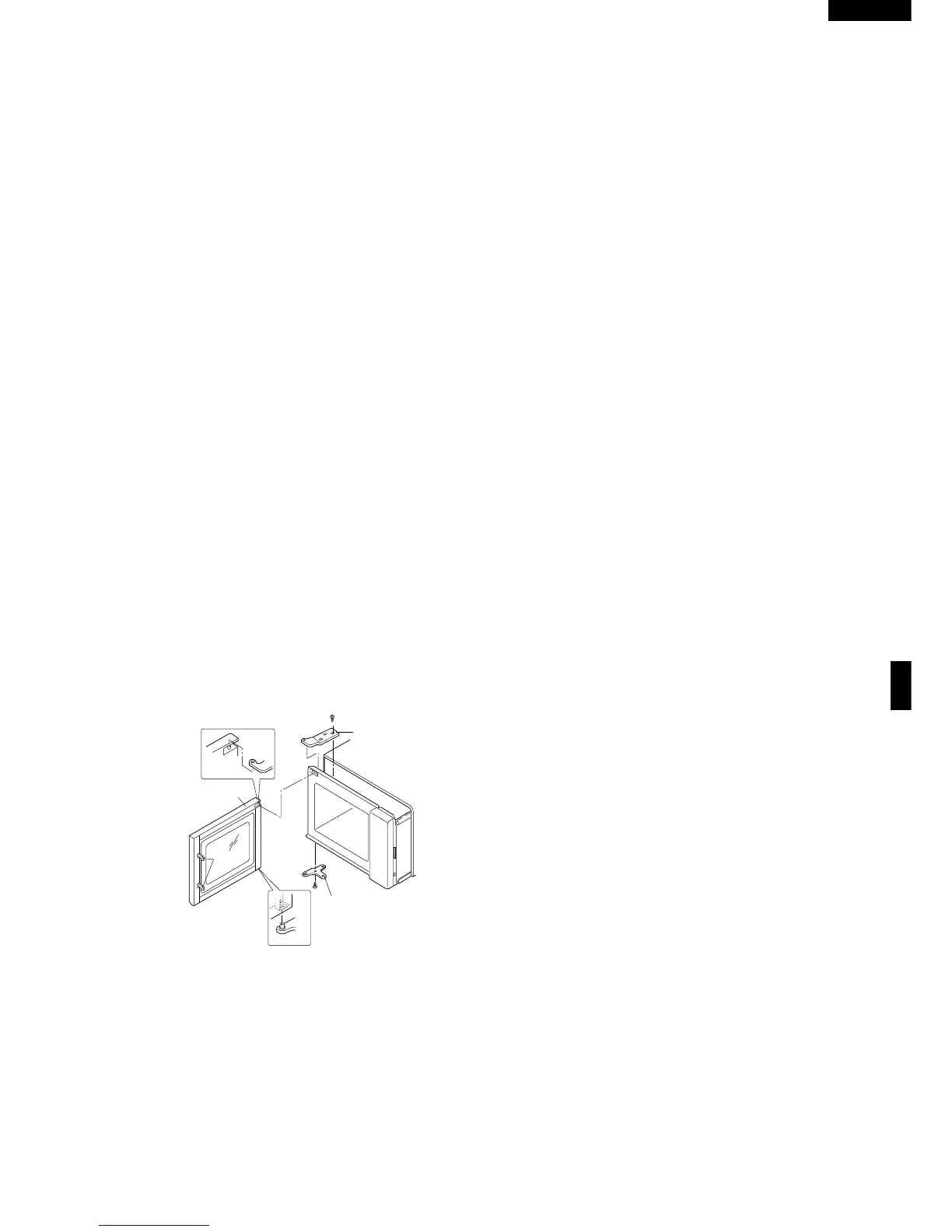

RE-INSTALL
RE-INSTALL
LOWER OVEN HINGE
UPPER OVEN HINGE
DOOR ASSEMBLY
LATCH
HEADS

Sharp R-950A Specifications

Power

ac line voltage	220 V
microwave frequency	2450 MHz
ac power required (microwave)	1.6 kW
ac power required (convection)	1.6 kW
ac power required (grill)	1.05 kW
ac power required (simul)	3.15 kW

Oven Specifications

oven capacity	41 litre
output power (microwave)	900 W
output power (convection heater)	1500 W
output power (grill heater)	1000 W

Weight and Dimensions

width	627 mm
height	378 mm
depth	492 mm
cavity width	410 mm
cavity height	245 mm
cavity depth	410 mm
weight	29 kg
