19
CARRY OUT 3D CHECKS.
Remove the outer case and check voltage between Pin Nos. 1 and 3 of the 4 pin connector (E) on the
control unit with an A.C. voltmeter.
The meter should indicate 230 volts, if not check oven circuit.
Relay Test
Check voltage at the relay coil with a D.C. voltmeter during the microwave cooking operation, grill
operation, convection operation or dual operation.
DC. voltage indicated .......... Defective relay.
DC. voltage not indicated .... Check diode which is connected to the relay coil. If diode is good,
control unit is defective.
RELAY SYMBOL OPERATIONAL VOLTAGE CONNECTED COMPONENTS
RY1 Approx. 18.0V D.C. Oven lamp / Turntable motor
RY2 Approx. 18.0V D.C. High voltage transformer
RY3 Approx. 24.0V D.C. Grill (Top) heating element
RY4 Approx. 24.0V D.C. Convection heating element
RY5 Approx. 24.0V D.C. Touch control transformer
RY6 Approx. 24.0V D.C. Fan motor
RY7 Approx. 24.0V D.C. Convection motor
RY8 Approx. 24.0V D.C. Damper motor
CARRY OUT 4R CHECKS.

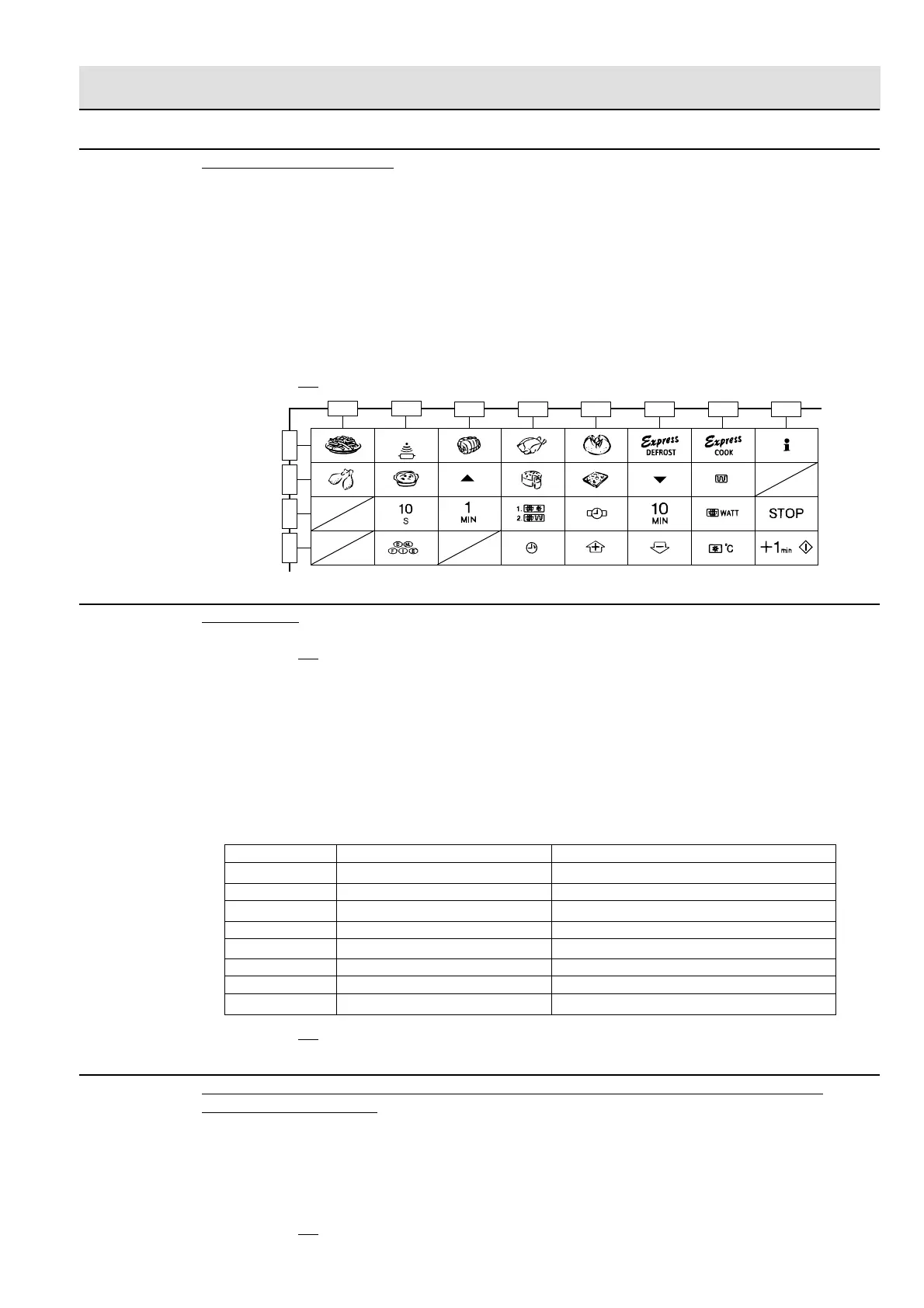

TEST PROCEDURES
PROCEDURE
LETTER
COMPONENT TEST
N KEY AND JOG UNIT TEST
O RELAY TEST
If the display fails to clear when the STOP pad is depressed, first verify the flat ribbon cable is marking
good contact, verify that the door sensing switch (stop switch) operates properly; that is the contacts
are closed when the door is closed and open when the door is open. If the door sensing switch (stop
switch) is good, disconnect the flat ribbon cable that connects the key unit to the control unit and make
sure the door sensing switch is closed (either close the door or short the door sensing switch
connecter). Use the Key unit matrix indicated on the control panel schematic and place a jumper wire
between the pins that correspond to the STOP pad marking momentary contact. If the control unit
responds by clearing with a beep the key unit is faulty and must be replaced. If the control unit does
not respond, it is faulty and must be replaced. If a specific pad does not respond, the above method
may be used (after clearing the control unit) to determine if the control unit or key pad is at fault.
CARRY OUT 4R CHECKS.
To protect the electronic circuits, this model is provided with a fine foil pattern added to the input circuit
on the PWB, this foil pattern acts as a fuse. If the foil pattern is open, follow the troubleshooting guide
given below for repair.
Problem: POWER ON, indicator does not light up.
CARRY OUT 3D CHECKS.
P PROCEDURES TO BE TAKEN WHEN THE FOIL PATTERN ON THE PRINTED WIRING
BOARD (PWB) IS OPEN
G12 G11 G10 G 9
G 8 G 7
SENSOR COOK
G 6 G 5 G 4 G 3 G 2 G 1
To Next Page
