R-980E
9
(RY4) is energized, and the damper is returned to the
open position.
NOTE: If the damper door is not in the proper position,
closed during convection or open during
microwave, the control unit will stop oven operation
after 1 minute.
Cooking Mode Operation of Damper
Microwave cooking OPEN
Convection cooking CLOSE
Sensor cooking OPEN
Automatic mix cooking CLOSE
Grill cooking CLOSE
Slow cooking CLOSE

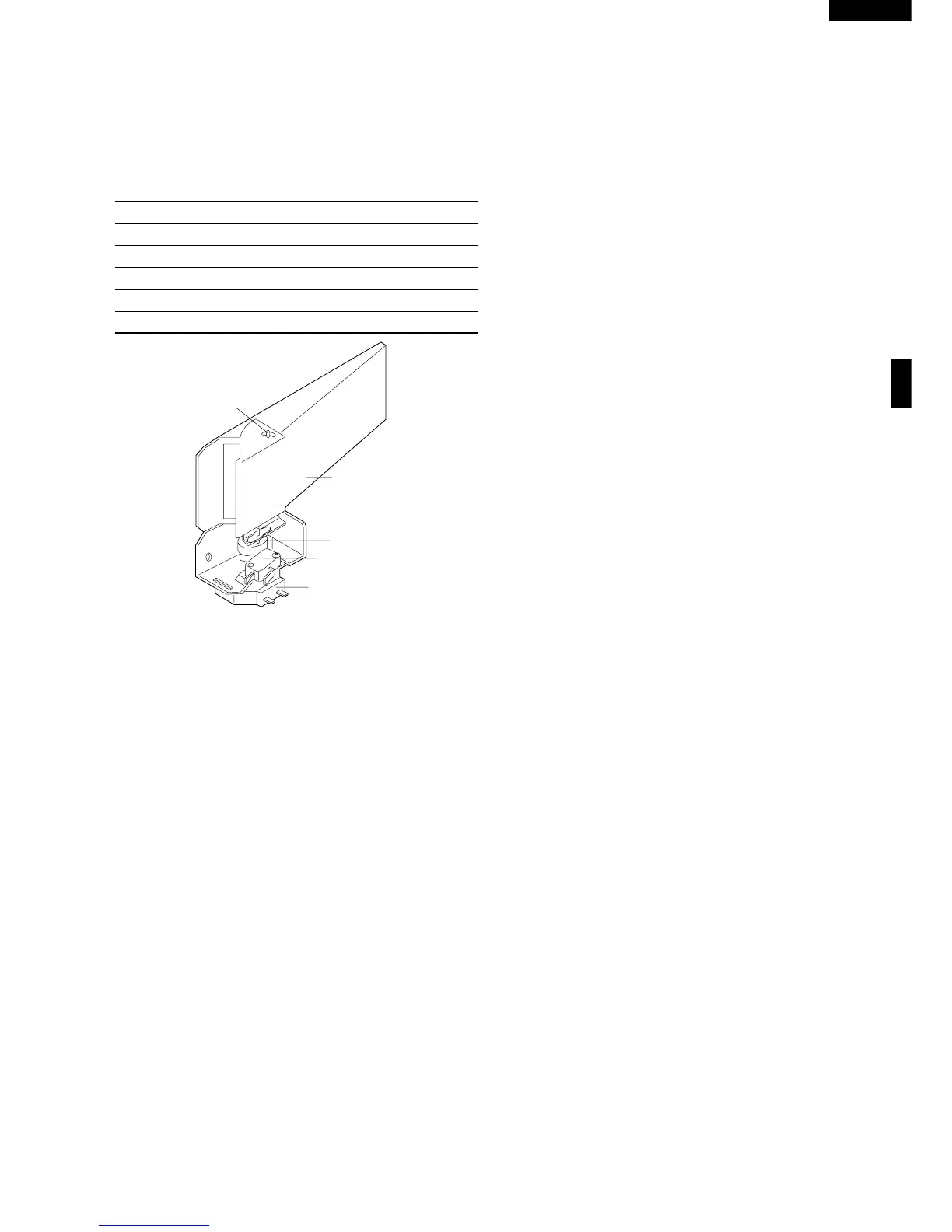

Figure D-2. Damper Mechanism
NOISE FILTER
The noise filter prevents the radio frequency interference
that might flow back in the power circuit.
DAMPER DUCT
DAMPER
DAMPER CAM
DAMPER MOTOR
DAMPER SWITCH
DAMPER SHAFT
