Sharp SJ-48H-S

20
SJ-48H-S
SJ-51H-S
SJ-55H-S
COOLING UNIT
SJ-48H

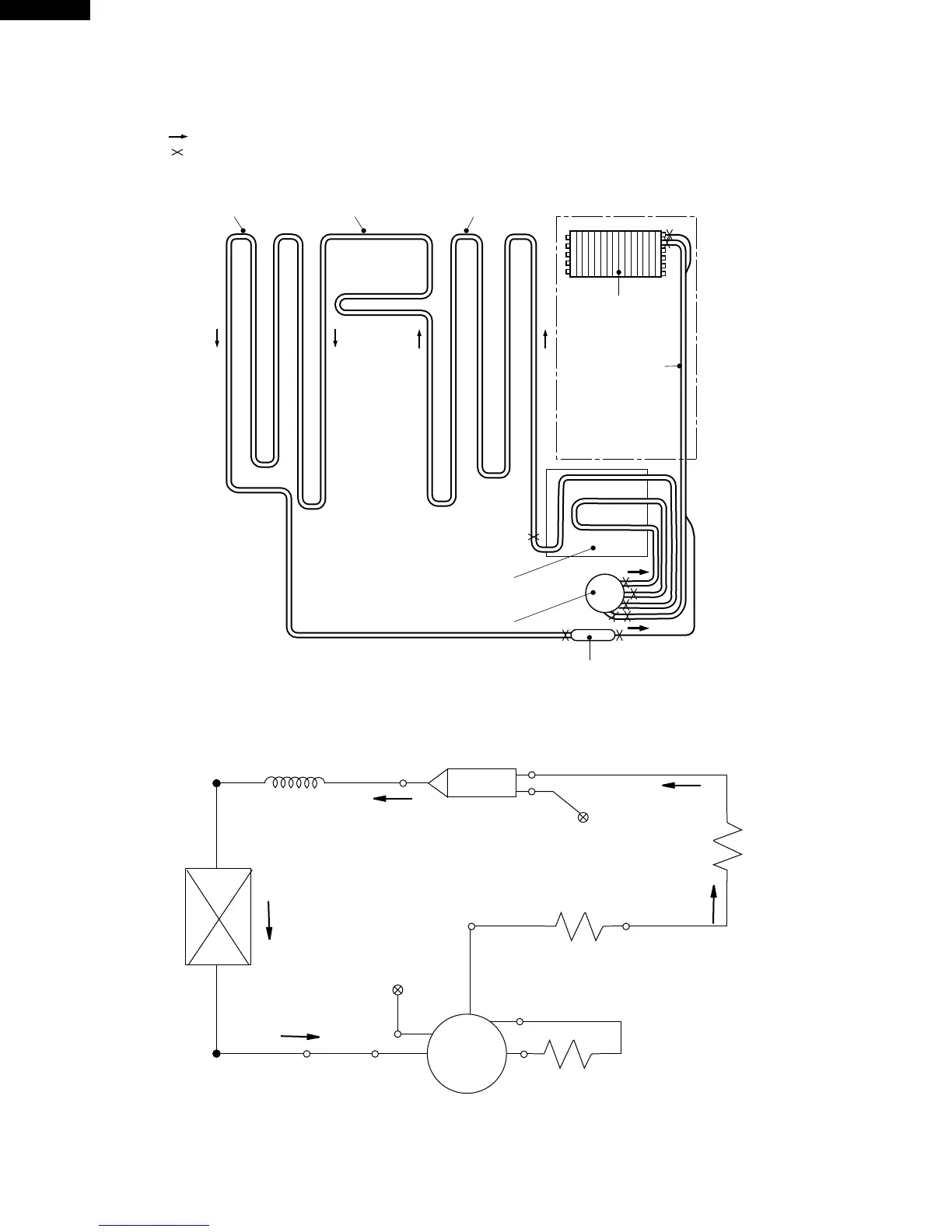

Figure C-2. Location
Figure C-1. Cooling unit
Compressor
Suction pipe
Charge pipe L
Charge pipe L
Capillary tube
Dryer
Hot pipe
S.P. connector
Sub. condenser
Sub. condenser
Evaporator
Hot pipe L
(Side condenser)
Hot pipe
(DP-condenser)
Hot pipe R
(Side condenser)
Evaporator
Suction pipe
Sub. condenser
Compressor
Capillary tube
Dryer
Mark: Refrigerant flow
Mark: Brazing portion
