Sharp SJ-F800SP-SL - Page 30

SJF800SPSL
11 – 6

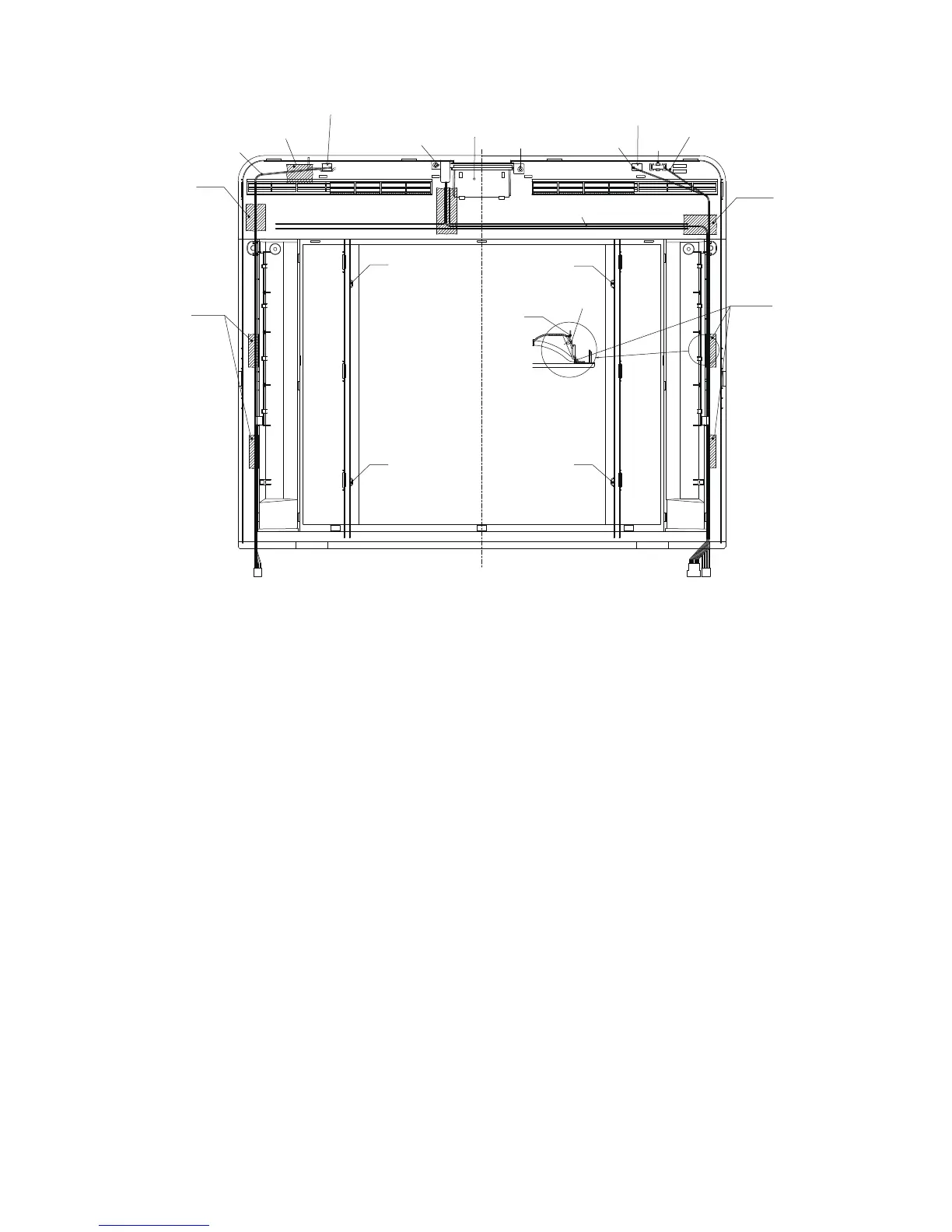

16.Fix each harness by buffalo tape to R-louver.
Lr led harness
R-thermistor
Pass the harness
through the hole.
Pass the harness
through the hole.
Tapping
screw
R-louver
Hook Hook
Hook
Lr led pwb ass’y
Hook
Hook
Pci indicator harness
Lr led harness
Fix R-thermistor with hooks.
Hook
Buffalo tape
30 x 40
Tapping
screw
Buffalo tape
30x40
Buffalo tape
30x50
Buffalo tape
30 x 50
Buffalo tape
30 x 50
