Sharp SJ-F800SP-SL

SJF800SPSL
12 – 2

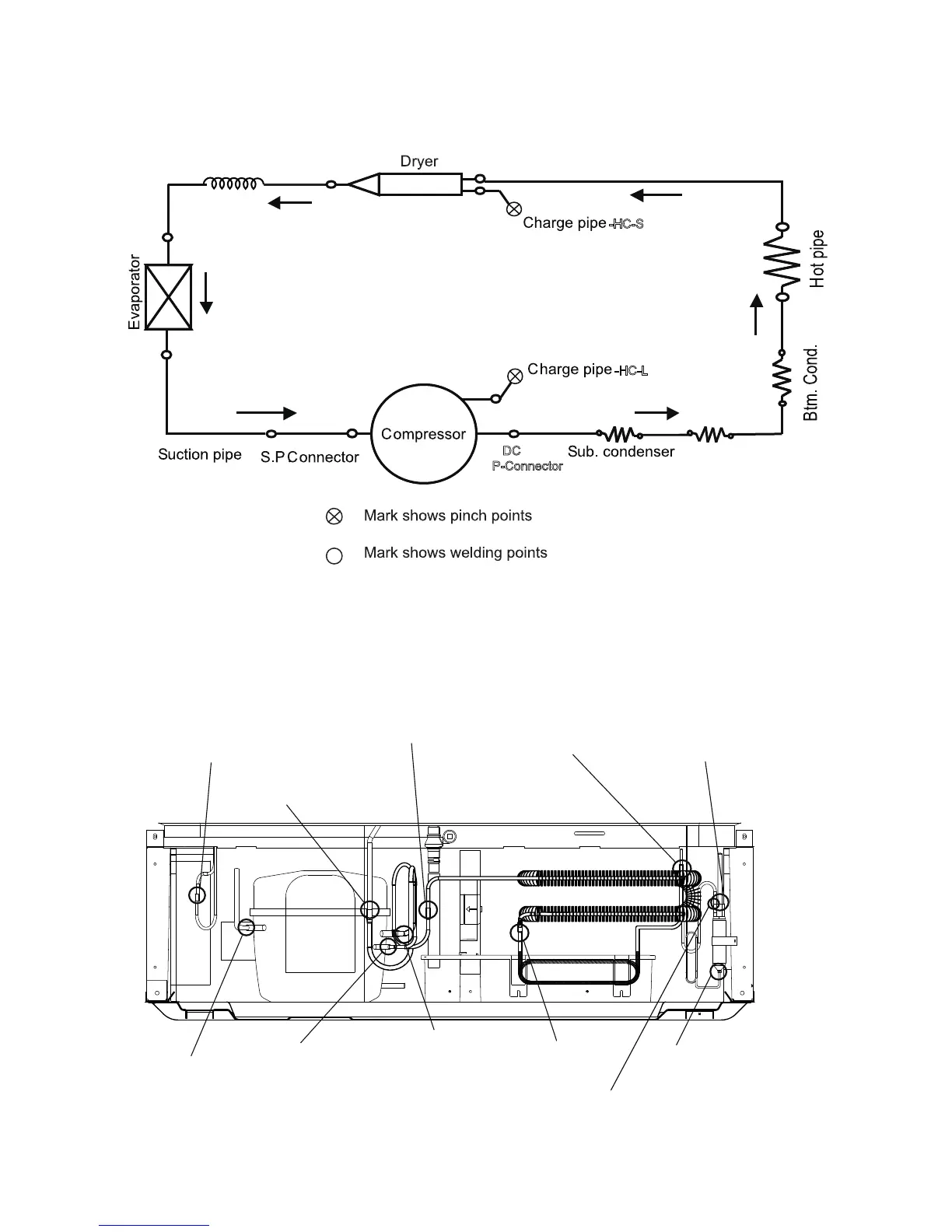

[2] LOCATION
1. Location 1
2. Location 2
Capillary tube
Eva. pan
pipe ass’y
-HC-L
-HC-S
DC
P-Connector
From Bottom condenser
to Hot pipe
From Compressor
to CHRG-PIPR-HC-
From CHRG-PIPE-HC-S
to Dryer
From Suction pipe ass
to S Connector
From S connector
to Compressor
From Compressor
to DC P-Connector
From DC P-Connector
to Sub condernser
From Sub condenser
to E pan pipe s ass
From E pan pipe s ass
to BTM condenser
From Hot pipe
to Dryer
Form Dryer
to Capillary tube
