SJF800SPSL
11 – 10

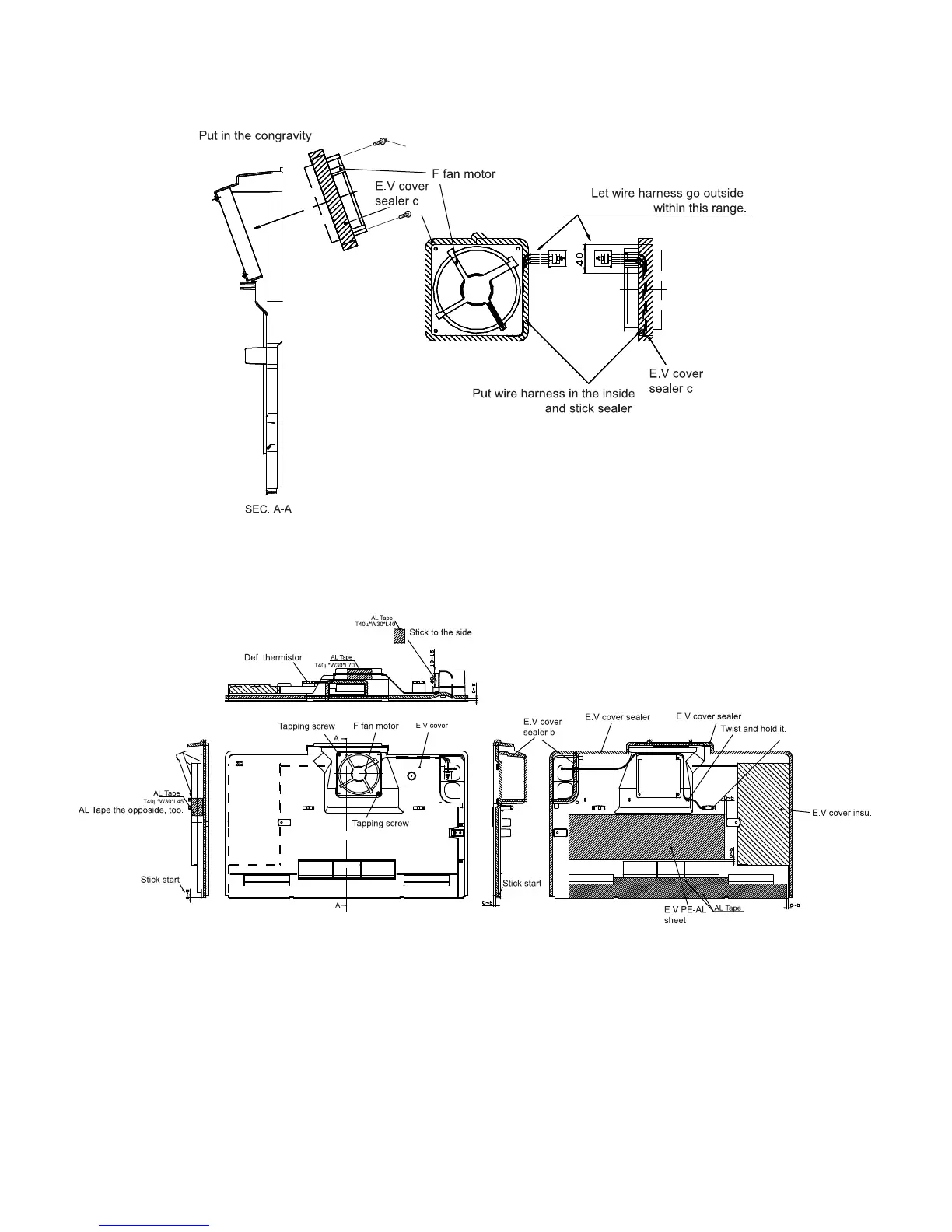

1. Assembly F fan motor
i) Sticking of sealer to F fan motor.
ii) Insert F fan motor to E.V cover .Then fix with tapping screw.
2. Sticking of sealers and PE-AL sheet to E.V cover.
3. Insert F/df-thermistor ( wire color : Blue) to E.V cover.
4. Insert E.V cover insulation to E.V cover.
5. Insert F/df-themistor ( wire color : White) to connect cover.
6. Fix 5) ass’y to E.v cover with tapping screw.
To Next Page
