Sharp SJ-P43N-SL

10
SJ-P43N/43N
SJ-P47N/47N
WIRING DIAGRAM
Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set.

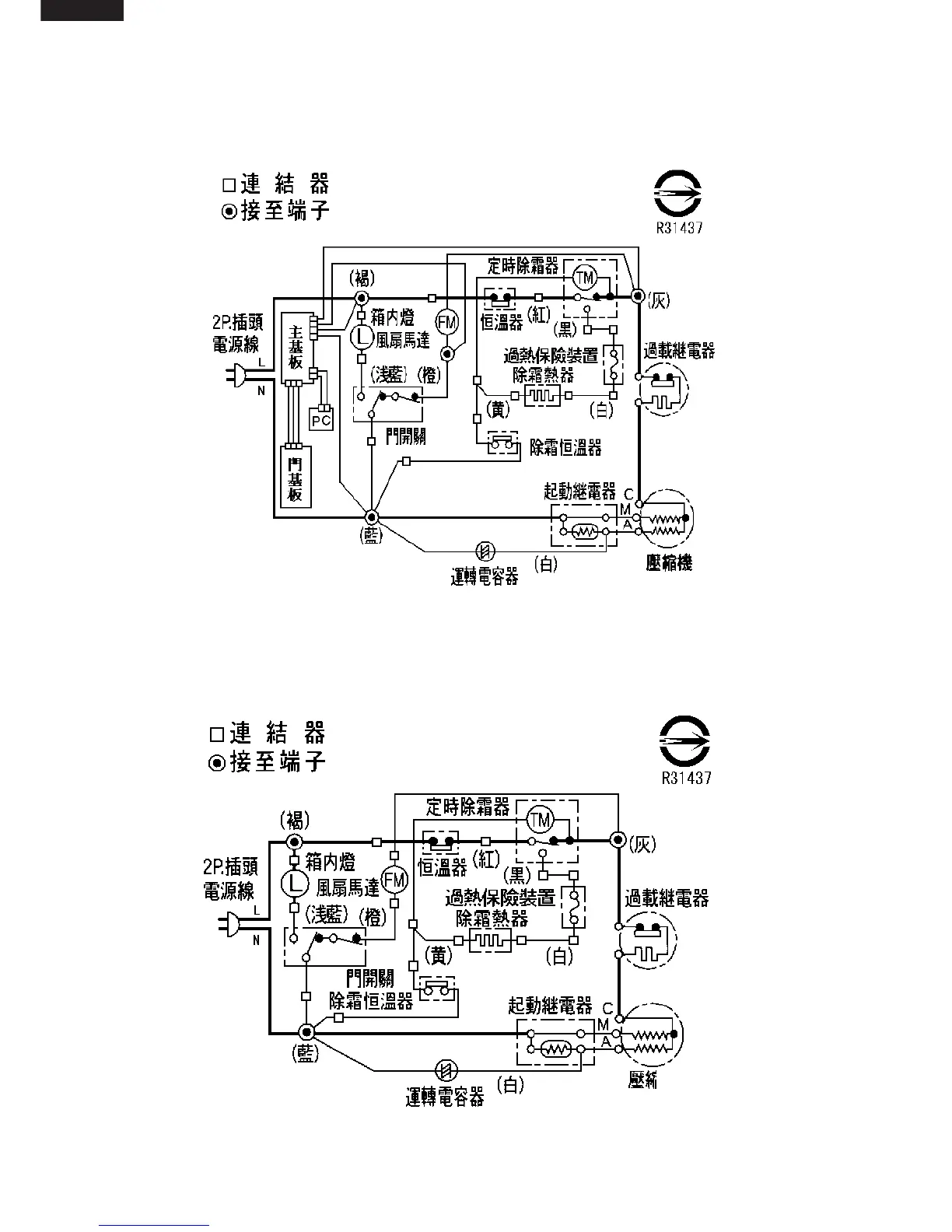

Figure W-1. Wiring Diagram (SJ-P43N,P47N)
Figure W-2. Wiring Diagram (SJ-43N,47N)
