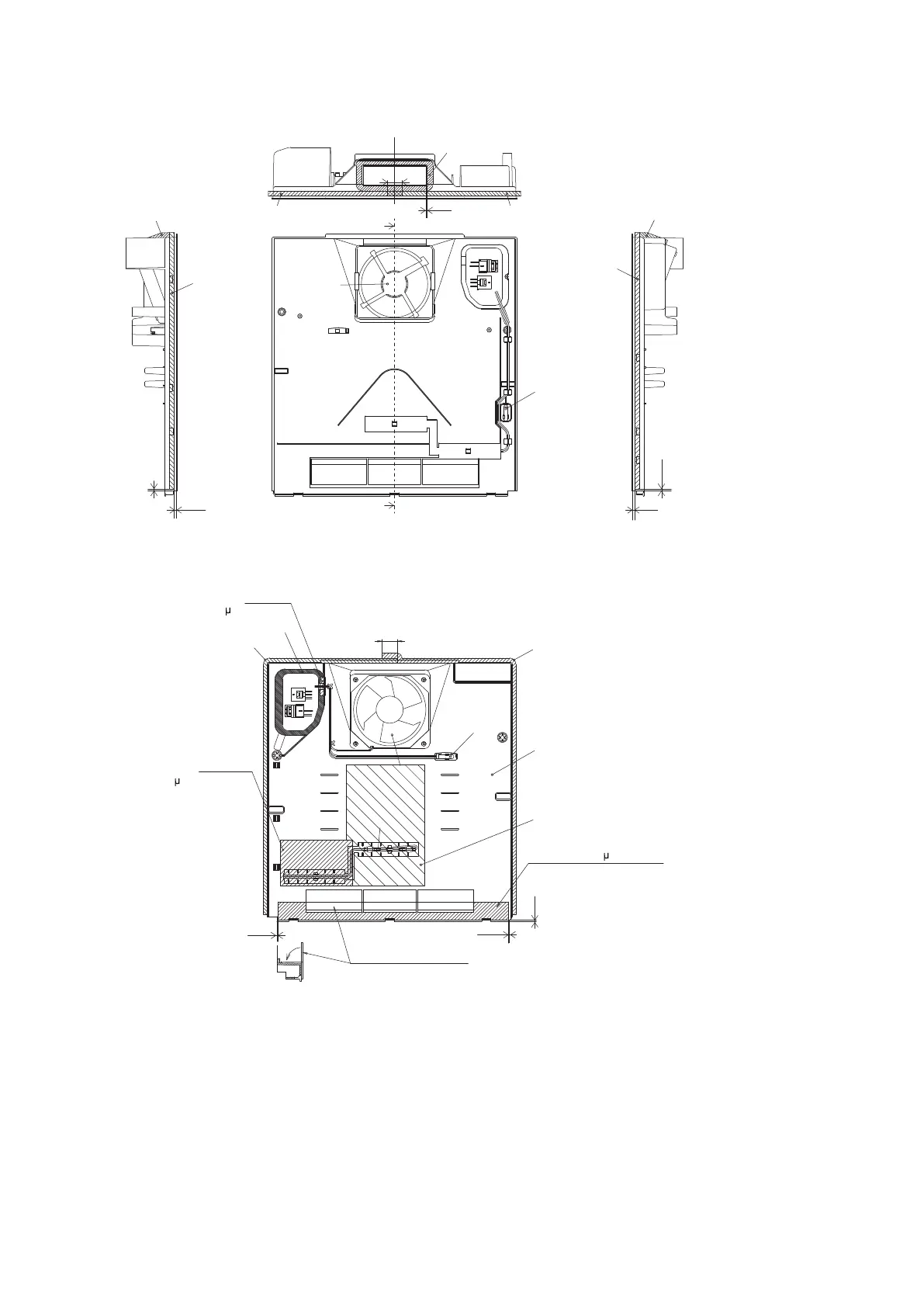

3. Stick E.v cover sealer a, b to E.v cover.
4. Set F fan motor, F-thermistor, Def-thermistor, F fuse ass’y in the E.v cover and stick Ev cover al.
F fan motor
E.v cover
E.v cover sealer a
E.v cover sealer a
Ev cover al
Def-thermistor
Fuse ass’y
AL TAPE (T40 ×W40×L380)
OVER LAP
20~30
Ev-cov.sealer d
(T40 ×Ｗ30×L30）
(T40 ×Ｗ100×L150）
AL TAPE
AL TAPE
Bend and stick Al tape.
0~2
0~2
0~2
F fan motor
E.v cover sealer a
E.v cover sealer a
E.v cover sealer a E.v cover sealer a
E.v cover sealer b
E.v cover sealer b E.v cover sealer b
F-thermistor
All around
A
A
OVER LAP
40~50
0~2
0~5
0~5
0~5
0~5
