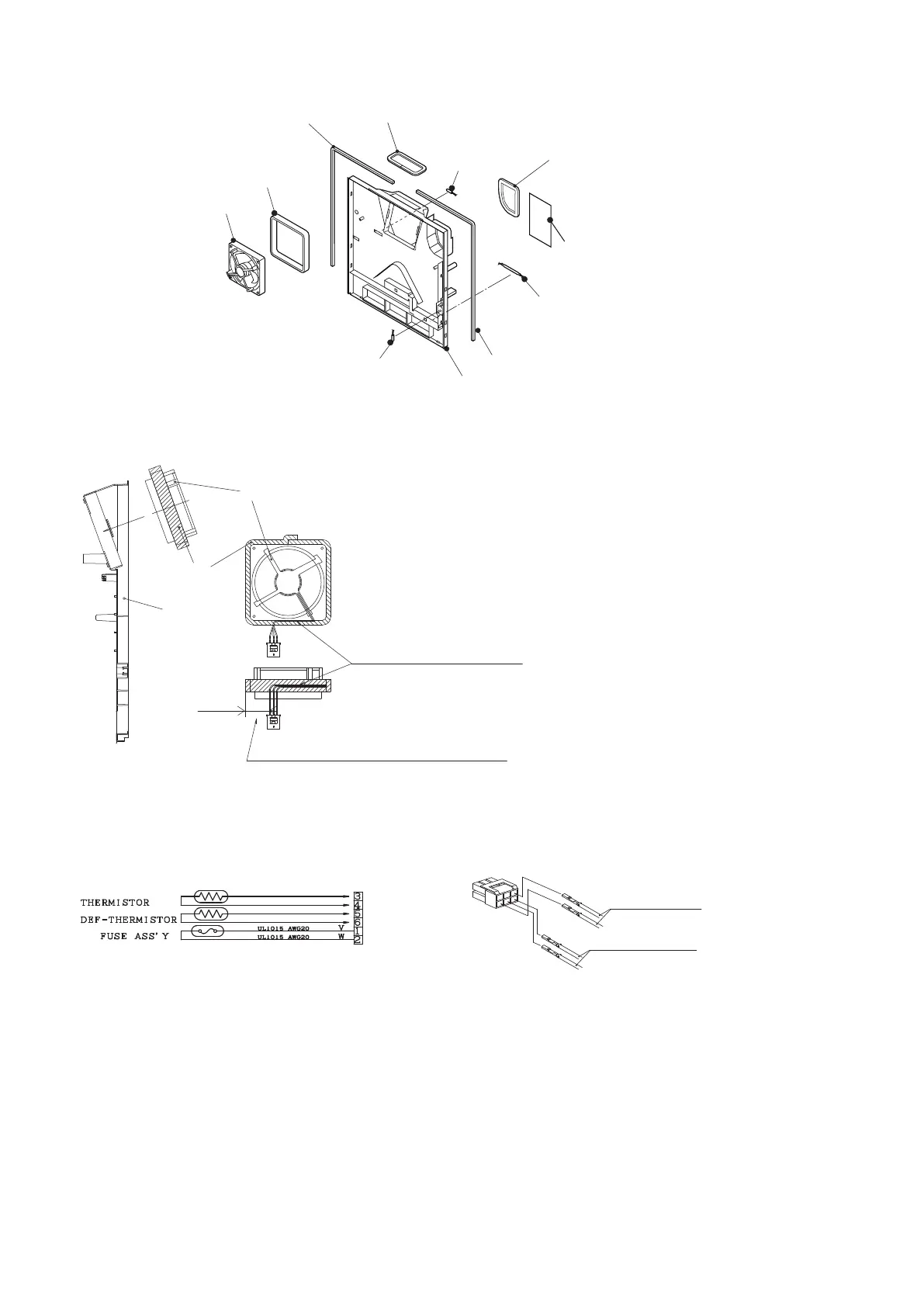

2. Assembling procedures of E.v cover ass’y
1. Stick Ev-cov.sealer c to F fan motor.
2. Insert terminal F-thermistor and Def-thermistor in the housing.
F fan motor
E.v cover sealer a
E.v cover sealer a
Ev cover al
E.v cover sealer b
Def-thermistor
F-thermistor
E.v cover
Fuse ass’y
Ev-cov.sealer c
E.v cover sealer d
F fan motor
Put in the concavity
E.v cover
Let wire harness go outside within this range.
Put wire harness in the inside,
and stick saeler.
Ev-cov.sealer c
40~50
SEC. AA
Def-thermistor
F-thermistor
1
2
3
4
5
6
YLP-06V-B (V0)
