2. FREEZER COMPARTMENT
Parents parts name Included main parts
E.v cover ass’y Fuse ass’y, Def-thermistor, F-thermistor, F fan motor

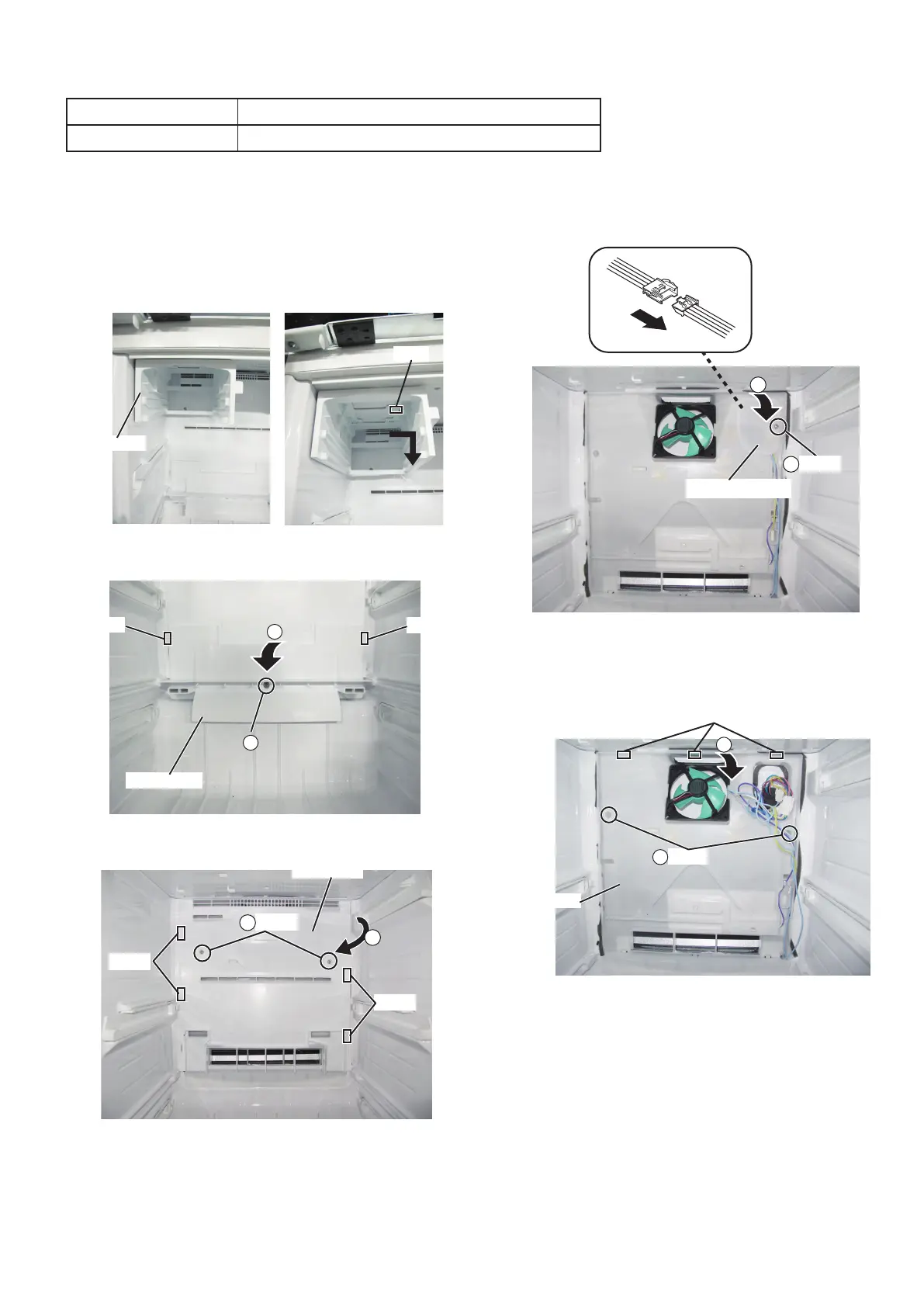

1. Disassembling procedures
1. Disconnect the accessories(shelf, case, etc.).
2. Remove the Ice frame.
Inserttheat-headscrewdriverintothelatch,and
lift and move it to the right.
3. Remove the Fan louver s.
4. Remove the Fan louver.
Latch
Ice frame
Latch
Latch
2
Screw
1
Fan louver s
Fan louver
Latch
2
Latch
Screw
1
5. Remove the Ev terminal cover, and disconnect the
connectros.
6. Remove the E.v. cover.
When installing the E.v cover, take care not to tuck
lead wires.
Ev terminal cover
Screw
1
2
Screw
1
Latch
2
E.v. cover
