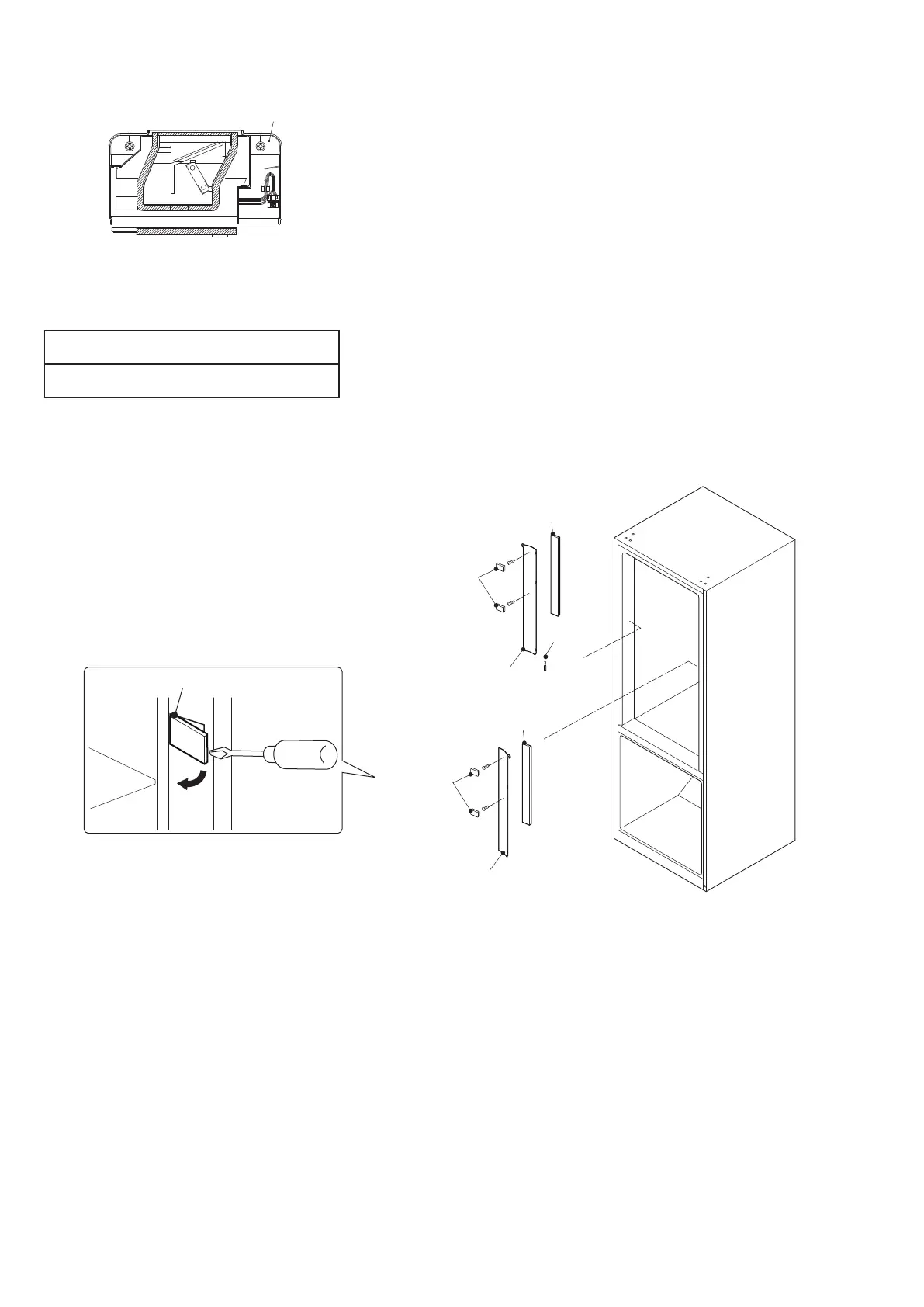

8. Fix 7) ass’y to Rc box cover.
4. How to remove the LED cover
Included main parts
LED lamp pwb ass’y ( Inside LED cover)
1. Remove the Screw cover, and the Screw.
2. Remove the Led cover.
R-c box cover
Hook Hook
A217
A295
＞PP＜
＞PS＜
Led cover L
Led cover R
Screw cover
Led lamp pwb ass’y
Led lamp pwb ass’y
Screw cover
R-thermistor
Screw cover
→
Front
