SJ-WS320T-S
45

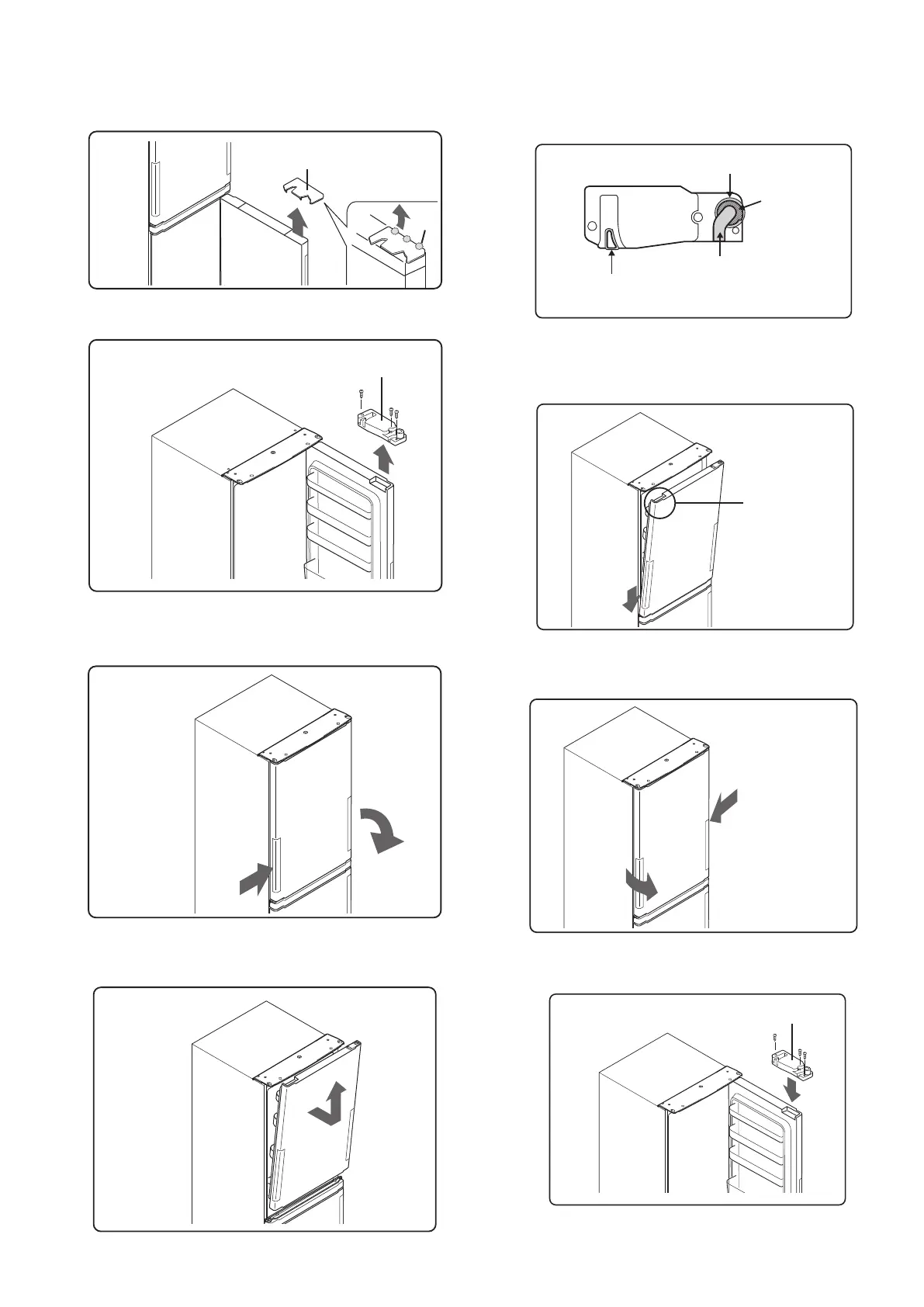

3. How to remove the door (R and F doors)
(1) Remove the Door cam cover l. (F door only)
(2) Open the Door and remove the Door cam tl-k.
(3) Close the door. While pressing it in the direction as
showninthegure,opentheoppositeside.
(4) The upper part of the door is disengaged.Pull the
door upward and remove.
Door cam cover l
Craw
Door cam tl-k
[2] Open
[1] While pressing
Side face
Side face
Inner side face
and inner bottom face
Upper face
4. How to install the door (R and F doors)
(1) To four corner Door cams, apply silicone oil to the
partshowninthegurebelow.
(2) Engage the edge of the door with the left hinge pin
(*).
* Without door cam
(3) Close the door. While pressing it from the right
side, open it at the opposite side.
(4) Install the Door cam tl-k.
(5) Install the Door cam cover l. (For F door only)
Door cam
is not present
Caution
Do not omit the step [1]
above.
Otherwise, the door will
fall as you open it,
causing bodily injury.
[2] Open
[1] While pressing
Door cam tl-k
