SJ-WS320T-S
46

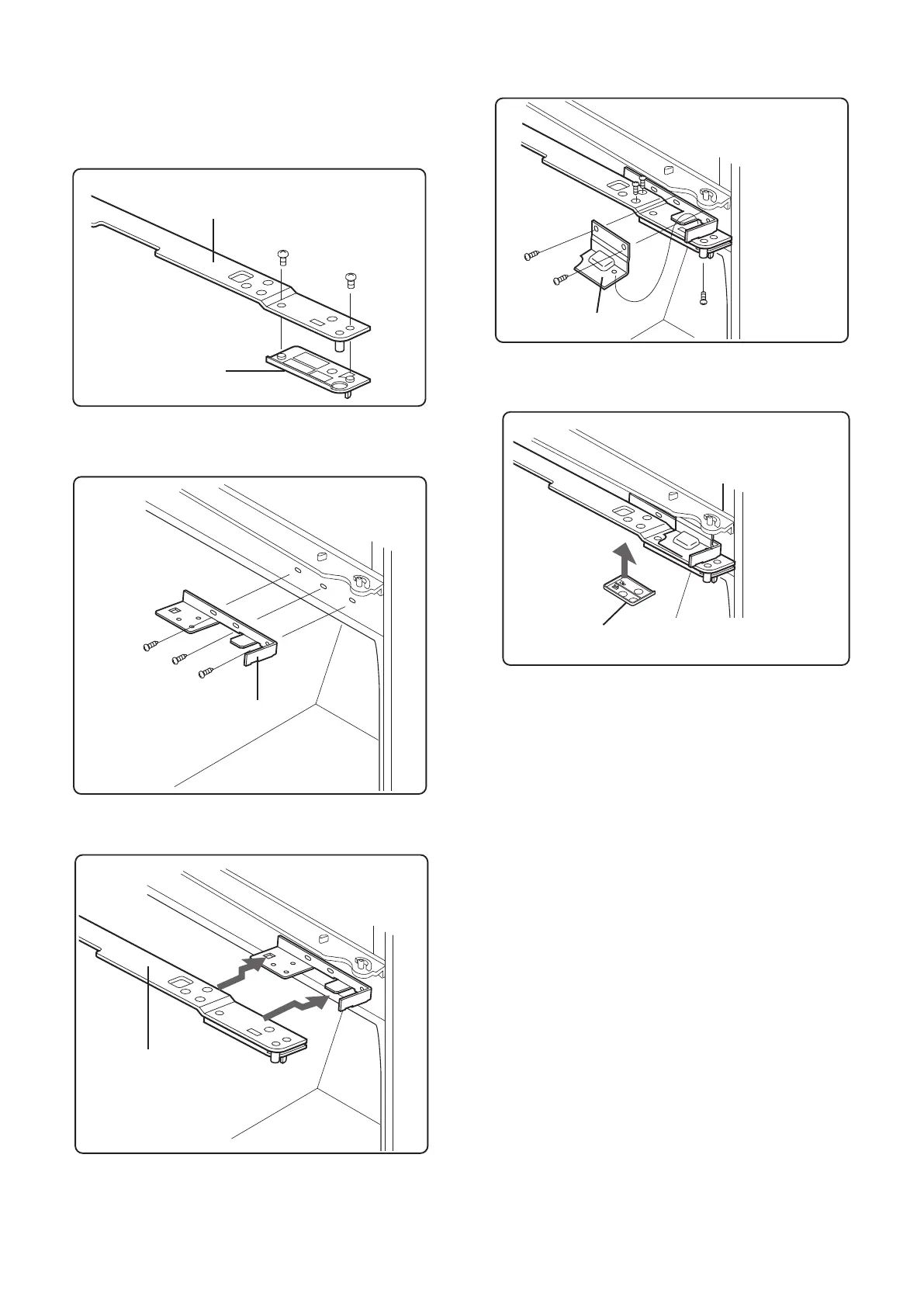

5. Assembling procedure of F Door upper
hinge ass’y and associated parts
(1) Install F-hinge cam tr and tl to right and left
F-upper hinge ass’y, respectively.
(2) Install C-hinge support r and l to the Cabinet,
respectively.
(3) Install F-upper hinge ass’y.
(4) Install C-hinge support tr and tl.
(5) Install C-hinge cover r and l.
F-upper hinge ass’y
F-hinge cam tr
C-hinge support r
F-upper hinge ass’y
C-hinge support tr
C-hinge cover r
To Next Page
