27
VC-A560U(A)/A560U/A560U(B)
VC-H960U/H960U(B)/H961U
Figure 4-37.

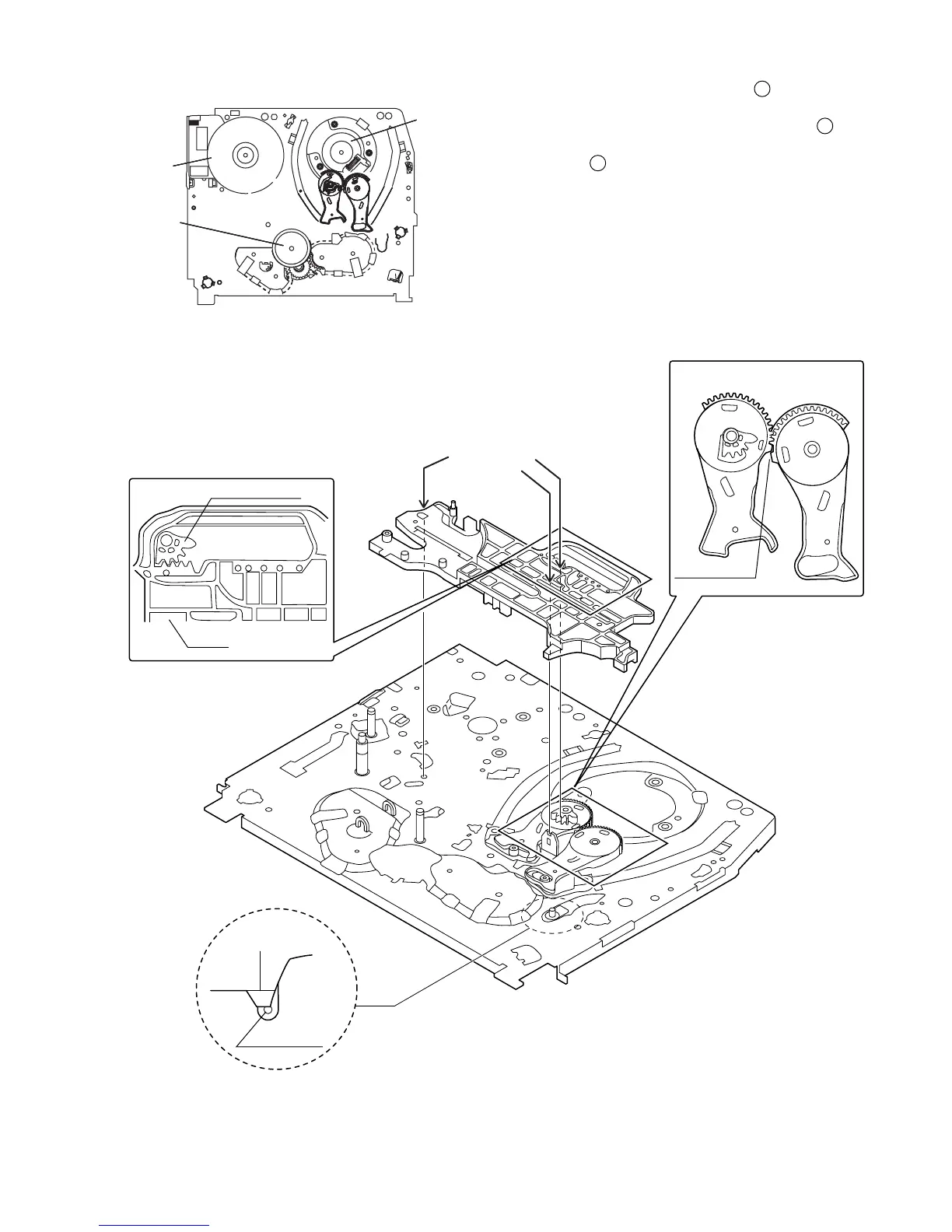

4-22 INSTALLING THE SHIFTER
Figure 4-36.
1. Make sure that the loading arm T and S are at the Phase-
Matching point as shown below .
2. Fix the shifter position setting part to the roading arm T
position setting part as shown in figure .
3. Make sure tension arm not run on the shifter as shown
in figure .
a
b
c
Loading arm (T)
Shifter
Insert point
Loading arm (T)
Loading arm (S)
Phase matting
*Not run on the
sifter.
Sifter
Tension arm
Drum
Limiter
pully
Capstan D.D.
motor
(Bottom side of mechanism chassis)
