Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
74
VC-AA350A/L/M/W
VC-AA352W,AA360A,AA370A
VC-AA550A/L/W,AA560A,AA570A
MECHANISM CHASSIS PARTS
1 LBNDK1021AJZZ V Tension Band Ass’y AC
2 LBOSZ1022AJZZ V Tension Arm Boss AB
4 LBOSZ1006AJZZ V Cassette Stay L AD
5 LCHSM0186AJZZ V Main Chassis Ass’y AQ
6 LHLDZA049WJZZ V Loading Motor Block AD
7 LPOLM0085GEZZ J Supply Pole Base Ass’y AF
8 LPOLM0086GEZZ J Take-up Pole Base Ass’y AF
9 MLEVF0544AJZZ V Tension Arm Ass’y AE
10 MARMP0061AJZZ V Loading Arm Take-up AC
11 MARMP0062AJZZ V Loading Arm Supply AC
12 MLEVF0545GEZZ J Pinch Roller Lever Ass’y AM
13 NBRGP0031AJZZ V Pinch Guide Bearing AB
16 LANGFA008WJFW V A/C Head Plate AD
17 LHLDW1895AJZZ V A/C Head FFC Holder AB
18 MLEVP0347AJZZ V Pinch Double Action LeverAC
19 MLEVP0344AJZZ V Reverse Guide Lever Ass’yAE
20 MLEVP0342AJZZ V Loading Link Take-up AB
21 MLEVP0343AJZZ V Loading Link Supply AB
23 MLEVP0346AJZZ V Clutch Lever AC
24 MLEVP0348AJZZ V Supply Main Brake AB
25 MLEVP0349AJZZ V Take-up Main Brake Ass’yAC
27 MSLiP0016AJZZ V Shifter AD
28 MSPRD0210AJFJ V Reverse Guide Spring AB
29 MSPRD0213AJFJ V Take-up Load Double AB
Action Spring
30 MSPRD0214AJFJ V Supply Load Double AB
Action Spring
31 MSPRT0439AJFJ V
Pinch Double Action Spring
AB
32 MSPRT0438AJFJ V Main Brake Spring AB
33 MSPRT0416AJFJ V Tension Spring AD
34 NBLTK0069AJ00 V H-Reel Belt AC
35 NDAiV1093AJ00 V Reel Disk AC
36 NGERW1082AJZZ V Worm Wheel Gear AC
37 NGERH1344AJZZ V Master Cam AD
38 NGERH1343AJZZ V Synchro Gear AB
41 NGERH1345AJZZ V Pinch Drive Cam AC
43 NGERH1299AJZZ V Reel Relay Gear AE
44 NGERW1081AJZZ V Worm Gear AB
45 NGERH1342AJZZ V Loading Connect Gear AB
46 NiDR-0036AJZZ V Idler Ass’y AD
48 NPLYV0173AJZZ V Limiter Pully Ass’y AF
49 NROLP0131GEZZ J Guide Roller AL
51 MSPRC0217AJFJ V Guide Roller Spring AC
52 PREFL1025AJZZ V Light Guide AC
53 QCNW-A245WJZZ V Drum Motor FFC AE
55 QCNW-A247WJZZ V A/C Head FFC AD
56 QPWBFB112WJZZ V A/C Head PWB AC
58 RHEDTA001WJZZ V Full Erase Head AH
59 RHEDUA002WJZZ V A/C Head Ass'y With AE AP
60 RMOTMA001WJZZ V Loading Motor AK
61 RMOTNA001WJZZ V Capstan Motor AX
62 RMOTP1139GEZZ J Drum Drive Motor AT
63 DDRMW0041TEX1 V Upper and Lower Drum BF
(AA350A/L/M/W,AA352W,AA360A)
63 DDRMW0041TEX2 V Upper and Lower Drum BF
(AA370A)
63 DDRMW0042TEX2 V Upper and Lower Drum BF
(AA550A/L/W,AA560A,AA570A)
64 QCNW-A244WJZZ V Loading Motor Wire AB
65 QBRSK0041GEZZ J Earth Brush Ass'y AD
66 XBPSD26P04500 V 2.6P+4.5A(D/M) AB
67 PGiDM0187AJZZ V Open Guide AC
70 MSPRC0228AJFJ V Azimuth Spring AB
71 MSPRC0224AJFJ V Height Adjusting Spring AC
72 LHLDW1894AJZZ V R/T FFC Holder AB
73 MLEVP0355AJZZ V Auto Head Cleaner AC
201 XBPSD26P08000 V 2.6P+8S A/C Head AA
202 LX-BZ3096GEFD J Tilt Adjusting Screw AA
203 LX-HZ3082GEZZ J WSW 2.6+6(AC) AD
204 XJPSD26P06000 V 2.6+6S(CAPST) AA
205 LX-RZ3015GEFJ J CS Washer AB
208 XRESJ30-06000 V E-3(MASTERCAM) AA
209 XWHJZ31-03052 V Reel Washer 0.3 AC
210 XWHJZ31-04052 V Reel Washer 0.4 AC
211 XWHJZ31-05052 V Reel Washer 0.5 AC
212 XWHJZ31-06052 V Reel Washer 0.6 AC
213 XWHJZ31-07052 V Reel Washer 0.7 AC
214 XWHJZ31-08052 V Reel Washer 0.8 AC
215 XHPSD26P05WS0 V L/M Block Screw AC
216 LX-WZ1041GE00 J CW2.6-6-0.5 ARM AA
219 LX-WZ1098GE00 J CW2.6-4.7-0.5 AB
221 XBPSD26P06000 V Azimuth Adjusting Screw AA
222 XBPSD26P14000 V A/C Head Screw AA
224 XBPSD30P06000 V 3P+6S (DRM FIX) AA
SCREW, NUTS AND WASHERS
CASSETTE HOUSING CONTROL PARTS
300 CHLDX3083TEV1 V Cassette Housing Control AP
Ass’y
301 LANGF9661AJFW V Upper Plate AD
302 LHLDX1049AJ00 V Frame (L) AD
303 LHLDX1050AJ00 V Frame (R) AE
304 LHLDX1051AJZZ V Holder (L) AC
305 LHLDX1052AJZZ V Holder (R) AC
306 MARMP0063AJZZ V Drive Arm (L) AB
307 MARMP0064AJZZ V Drive Arm (R) AC
308 MLEVP0350AJZZ V Drive Lever AD
309 MLEVP0351AJZZ V Proof Lever AC
310 MLEVP0352AJ00 V Sensor Plate AB
311 MLEVP0353AJ00 V Open Lever AB
312 MSLiF0079AJFW V Slider AD
313 MSPRD0212AJFJ V Drive Arm Spring AB
314 MSPRP0175AJFJ V Cassette Spring AE
315 MSPRD0215AJFJ V Proof Lever Spring AB
317 NSFTD0065AJFD V Main Shaft AD

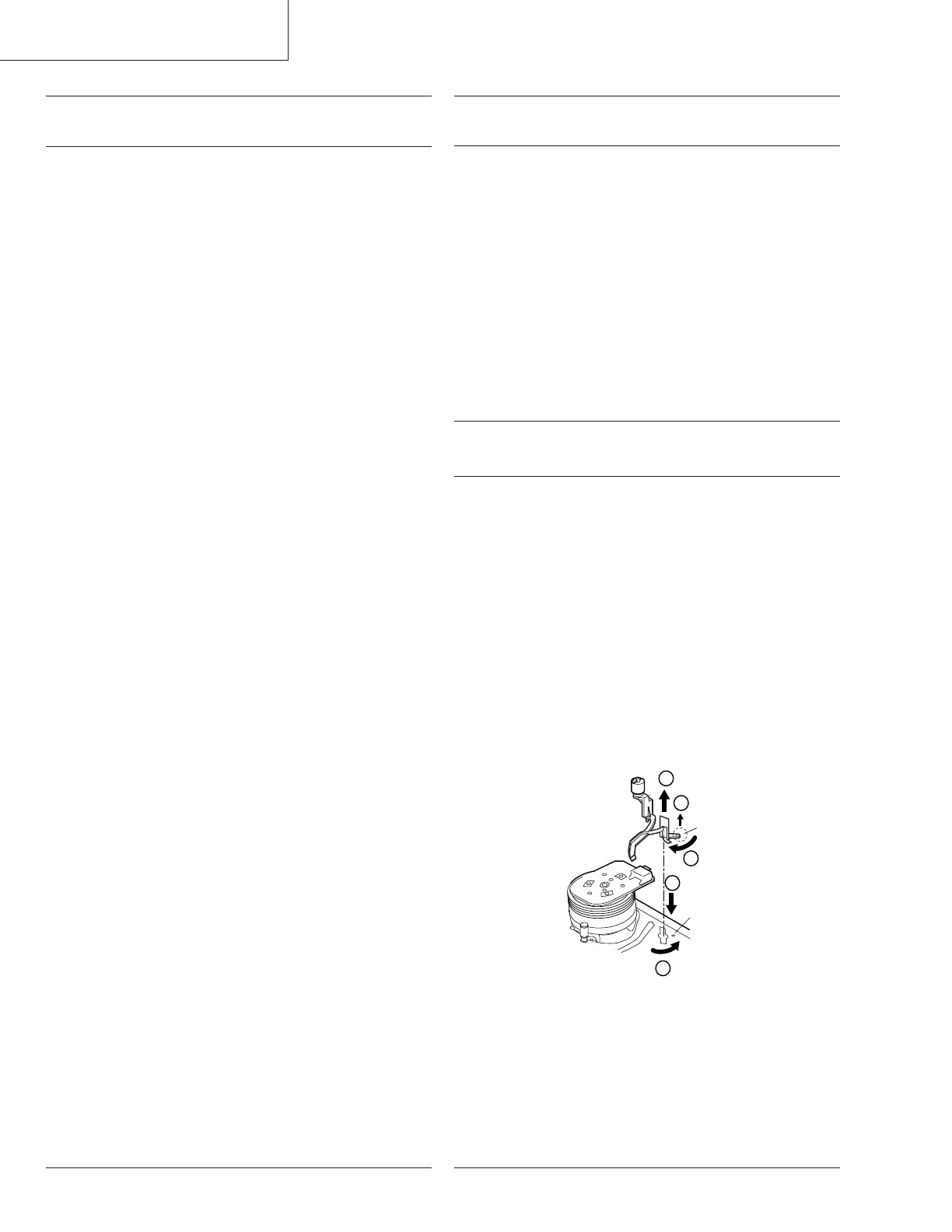

• How to remove
Turn the H-AHC ass'y in the direction of (2), lifting the hook of the H-
AHC ass'y in the direction of (1). When the hook is undone, pull out
the H-AHC ass'y in the direction of (3).
• How to install
Insert the H-AHC ass'y into the hole on the chassis in the direction
of (4) and turn it in the direction of (5). Check that the chassis hook
and hook of the H-AHC ass'y are engaged.
* Caution when replacing
• Do not allow the AHC ass'y to contact with the drum.
• Do not contaminate the cleaner section of the AHC ass'y with grease,
etc.
• Replacing the AHC (Auto Head Cleaner)
