Sharp VC-MH75HM

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
82
VC-MH75HM
TUNER
TU101 VTUATMDB2-633 U VHF Tuner
INTEGRATED CIRCUITS
IC201 VHiHA8617F/-1 V HA118617F AX
IC601 VHiTC4S66F/-1Y V TC4S66F AD
IC651 VHiAN3651FB-1 V AN3651FBP AU
IC701 RH-iXA045WJZZQ U MN101D06FTF
IC703 VHiPST3225N1EY V PST3225 AD
IC710 VHiBR24C04F-1Y V BR24C04F-WE2 AG
IC903 VHiKiA431//-1+ V KIA431 AE
IC8001 VHiBU9716BK-1Q V BU9716BK AM
TRANSISTORS
Q101 VS2PD601AR/-1Y V 2PD601AR AB
Q201 VS2PD601AR/-1Y V 2PD601AR AB
Q251 VS2PB709AR/-1Y V 2PB709AR AB
Q502 VSKRA102S//-1Y V KRA102S AA
Q503 VSKRC102S//-1Y V KRC102S AA
Q601 VS2PB709AR/-1Y V 2PB709AR AB
Q602 VS2SC3203Y/-1+ V 2SC3203Y AC
Q603 VS2PD601AR/-1Y V 2PD601AR AB
Q604 VSKRA103S//-1Y V KRA103S AA
Q605 VS2PD601AR/-1Y V 2PD601AR AB
Q606 VS2PD601AR/-1Y V 2PD601AR AB
Q613 VS2PD601AR/-1Y V 2PD601AR AB
Q651 VS2PD601AR/-1Y V 2PD601AR AB
Q652 VS2PD601AR/-1Y V 2PD601AR AB
Q655 VS2PD601AR/-1Y V 2PD601AR AB
Q658 VSKRA104S//-1Y V KRA104S AA
Q704 VS2PB709AR/-1Y V 2PB709AR AB
Q705 VS2PD601AR/-1Y V 2PD601AR AB
Q706 VS2PB709AR/-1Y V 2PB709AR AB
Q710 VS2PD601AR/-1Y V 2PD601AR AB
Q711 VS2PD601AR/-1Y V 2PD601AR AB
å Q901 VS2SK2848//-1 V 2SK2848 AH
å Q902 VS2SC2001LK-1+ V 2SC2001LK AA
Q903 VS2PD601AR/-1Y V 2PD601AR AB
Q961 VS2SD471-KL1E+ V 2SD471-KL AC
Q966 VS2SB1443TV1E+ V 2SB1443TV AE
Q967 VSKRC102S//-1Y V KRC102S AA
Q971 VS2PB709AR/-1Y V 2PB709AR AB
Q972 VSKRC103S//-1Y V KRC103S AA
Q992 VS2SB1443TV1E+ V 2SB1443TV AE
Q993 VSKRC102S//-1Y V KRC102S AA
DIODES AND LED'S
D351 VHD1SS119//-1Y V 1SS119 AA
D701 RH-PX0270GEZZ+ V PhotoDiode AC
D702 VHD1SS119//-1Y V 1SS119 AA
D706 RH-PX0252GEZZ V GP1S563 AF
D707 RH-PX0252GEZZ V GP1S563 AF
D712 VHD1SS119//-1Y V 1SS119 AA
D721 VHD1SS119//-1Y V 1SS119 AA
D731 VHD1SS119//-1Y V 1SS119 AA
å D901 VHDRL1N4005-1Y U RL1N4005
å D902 VHDRL1N4005-1Y U RL1N4005
å D903 VHDRL1N4005-1Y U RL1N4005
å D904 VHDRL1N4005-1Y U RL1N4005
D905 VHDERA2206/-1Y V ERA2206 AC
D906 VHDRL1N4005-1Y U RL1N4005
D908 VHD1SS119//-1Y V 1SS119 AA
D910 VHD1SS119//-1Y V 1SS119 AA
D911 RH-EX0613GEZZY U Zener Diode
D912 RH-EX0645GEZZY V Zener Diode AB
D914 RH-EX0622GEZZY U Zener Diode
D916 VHD1SS244//-1Y V 1SS244 AB
å D931 VHD10ELS4//-1Y V 10ELS4 AD
å D933 VHD15DF1FC/1E V 15DF1FC AD
å D934 VHDSB240L++1E V SB240L++ AD
D961 VHD1SS119//-1Y V 1SS119 AA
10. REPLACEMENT PARTS LIST/
ERSATZTEILLISTE
PARTS REPLACEMENT/
EXPLOSIONSDARSTELLUNGEN
Parts marked with " å " are important for maintaining the safety of
the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
5. PRICE CODE

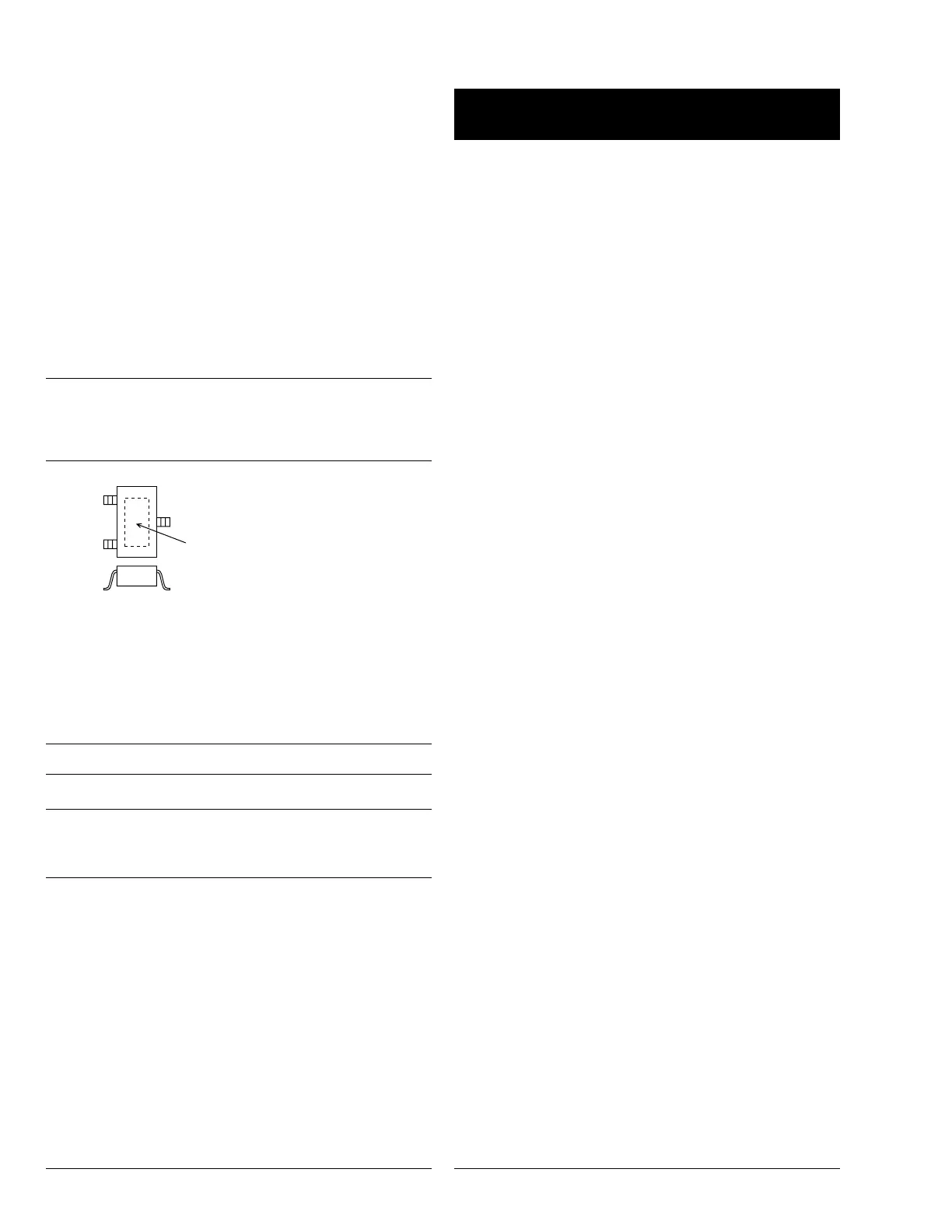

HOW TO IDENTIFY CHIP
TRANSISTORS AND
DIODES BY ITS MARKING
Package Marking Parts No. Code
Fig. 1 FQ VS2SA1037KQ-1 AA
Fig. 1 BQ VS2SC2412KQ-1 AA
Fig. 1 16 VSDTA144EK/-1 AC
Fig. 1 15 VSDTA124EK/-1 AB
Fig. 1 25 VSDTC124EK/-1 AB
(1) Base/Input
(2) Emitter/Ground
(3) Collector/Output
DUNTKB110TEX1 - Main Unit —
DUNTKB106TEX1 - Operation Unit —
DUNTKB107TEX1 - Back Light Unit —
DUNTKB111TEV3 - NICAM/IGR Unit —
DUNTKB206TEV1 - EUR-TERM Unit —
Marking
Fig. 1
(3)
(1)
(2)
MARK ★: SPARE PARTS-DELIVERY SECTION
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
Ref. No. Part No. ★ Description Code
DUNTKB110TEX1
MAIN Unit
