VC-M
H80
VC-MH90

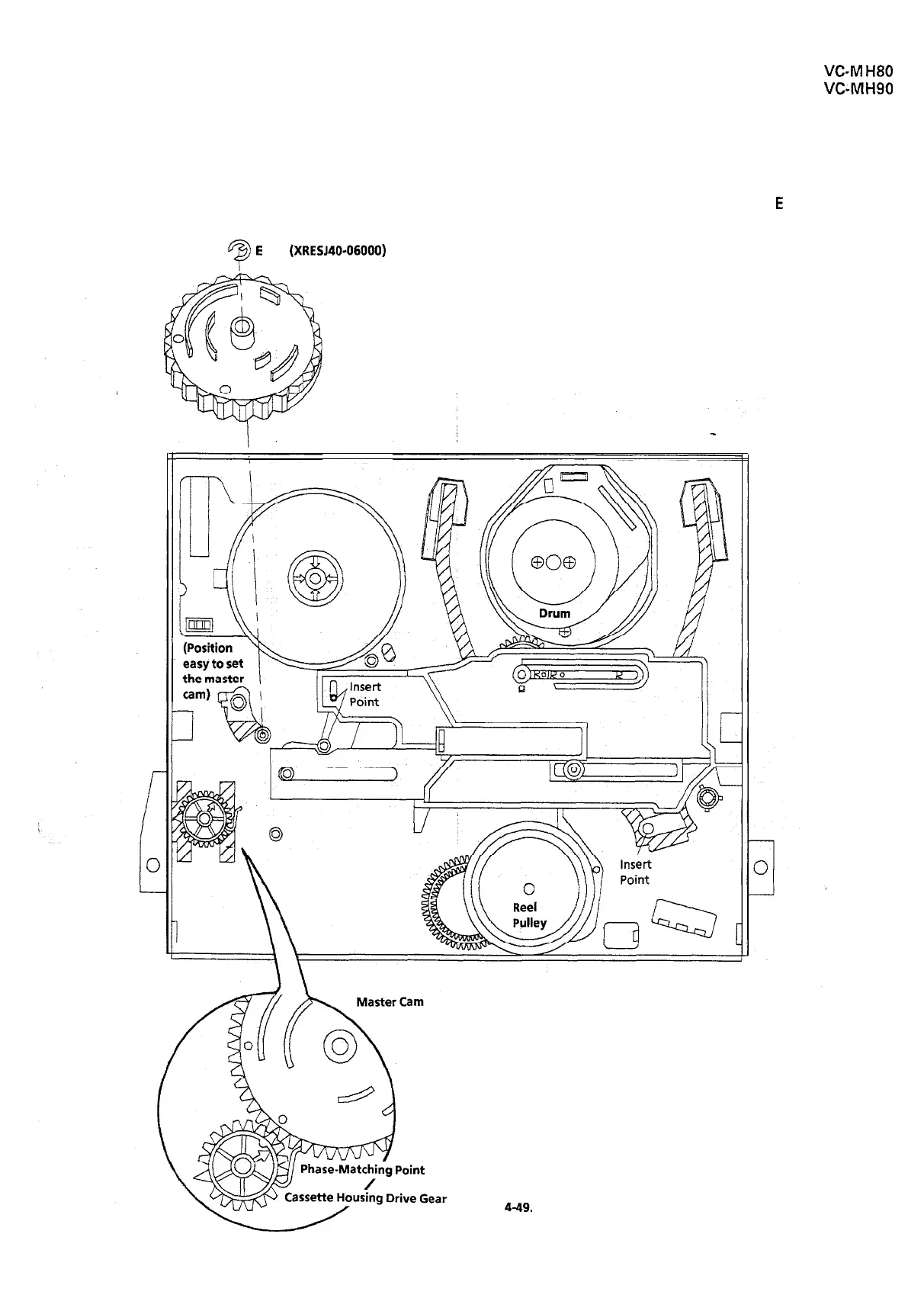

3. Mounting the master cam (on the back
of the mechanism chassis).
(1) Make sure beforehand that the shifter is at the
point as shown below.
(2) Place the-master cam in the position as shown
below.
?
E
ring
(XRESJ40-06000)
Master Cam
Note:
See the figure below for the phase matching be-
tween the master cam and the cassette control
drive gear.
(3)
Finally fix the master cam with
E
ring.
Figure 4-49.
29
