Sharp VT-G14 - Page 70

73
VT-G14
VT-G21
72
121110987654321
A
B
C
D
E
F
G
H

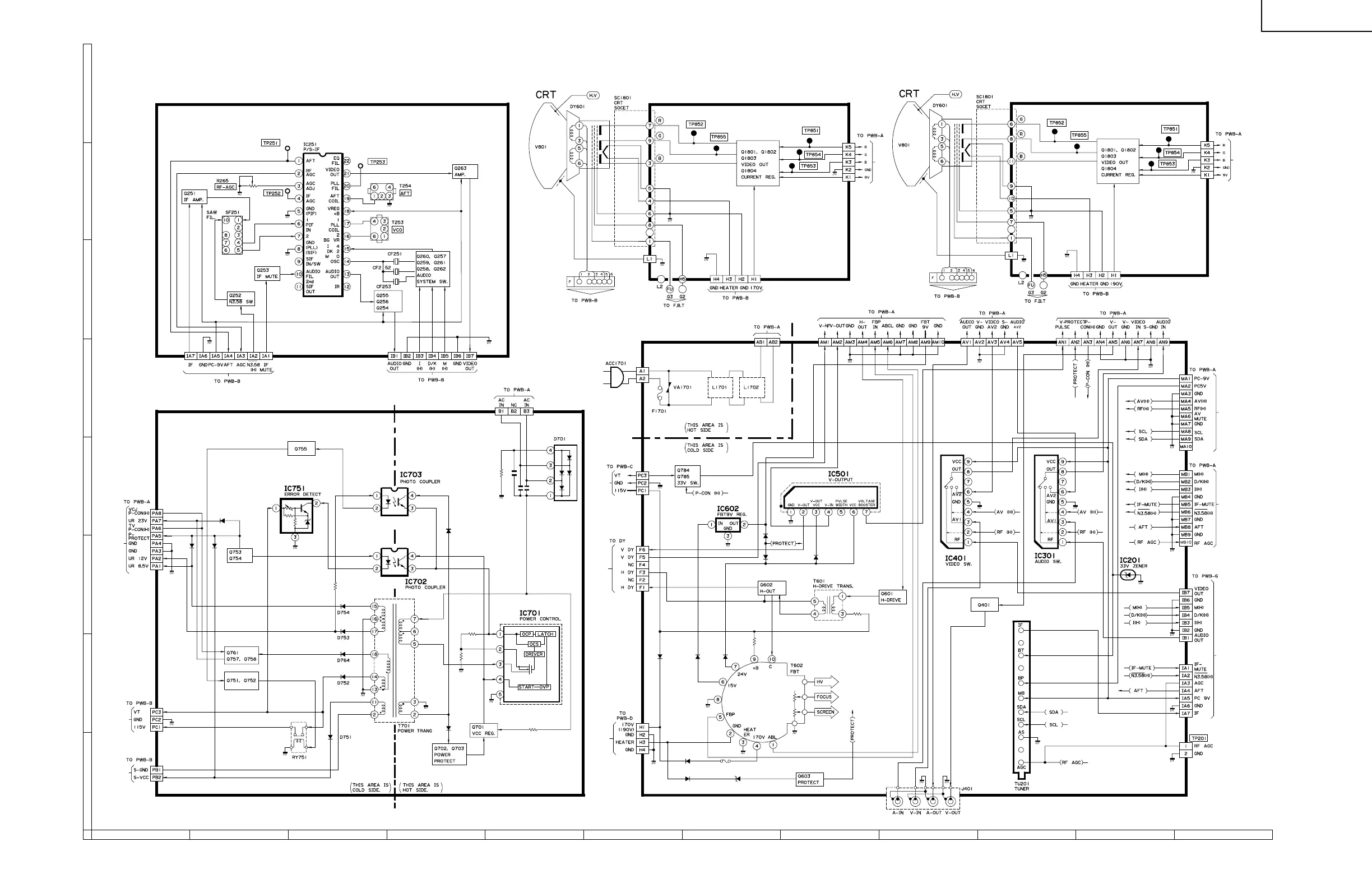

BLOCK DIAGRAM OF TV SECTION-2
PWB-D
CRT UNIT (Only for VT-G14)
PWB-D
CRT UNIT (Only for VT-G21)
PWB-B
TUNER/DEF UNIT
PWB-C
POWER UNIT
PWB-G
IF UNIT
