LOCATION OF USER'S CONTROL

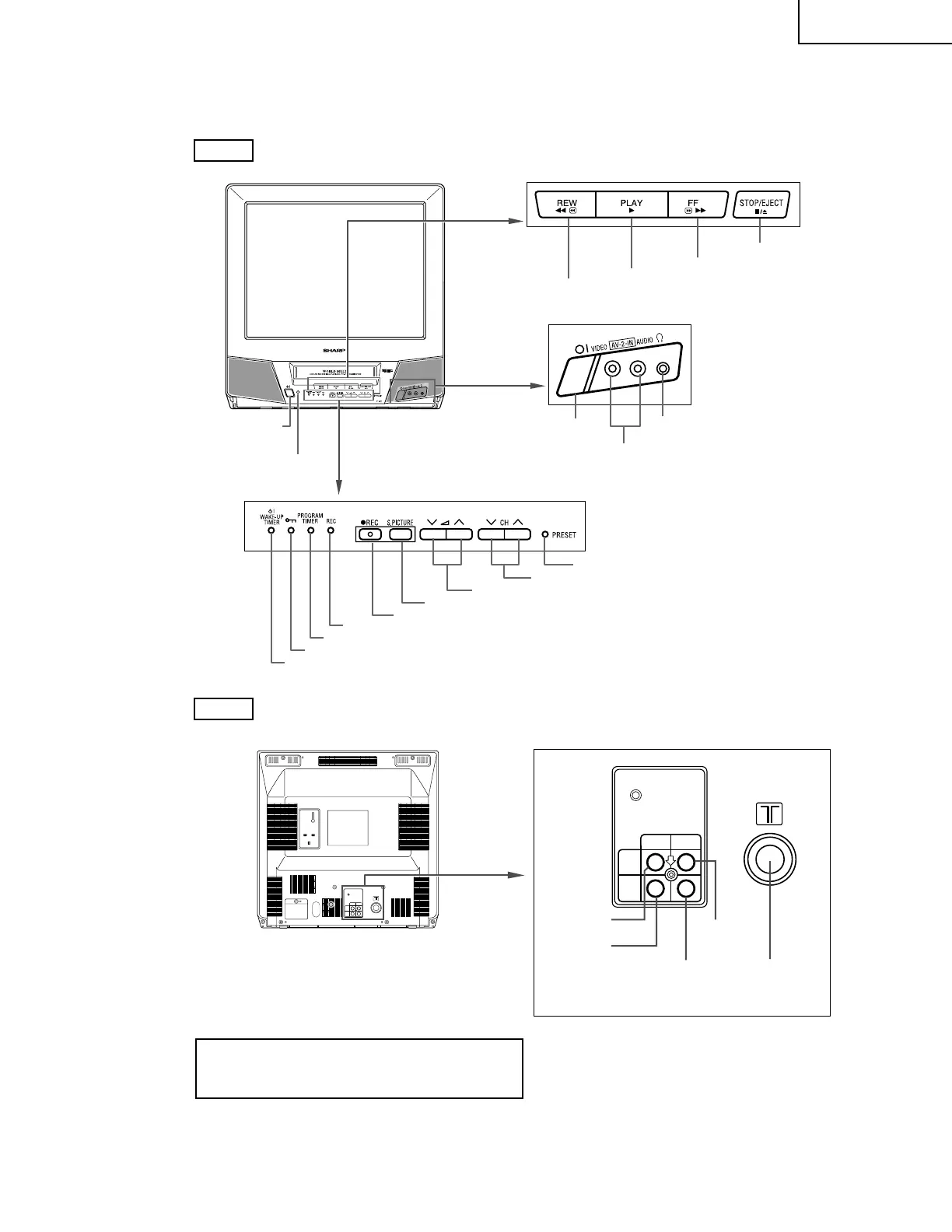

Front
AV-1
IN
OUT
VIDEO AUDIO
AV-1
IN
OUT
VIDEO AUDIO
This service manual is for VT-G14 and VT-G21. The
illustration of VT-G21 are used in this service
manual.
Rear
VIDEO
OUTPUT
ANTENNA IN
terminal
AUDIO
INPUT
AUDIO
OUTPUT
VIDEO
INPUT
HEADPHONE jack
(Speaker audio turns off when connected
to a pair of headphones)
POWER button
VIDEO/AUDIO INPUT terminals
STOP/EJECT button
FF (Forward Video
Search) button
PLAY button
REW (Reverse Video
Search) button
PRESET button
CHANNEL UP/DOWN buttons
VOLUME UP/DOWN buttons
SHARP SUPER PICTURE button (This function will create a clearer image during playback.)
REC (Recording) button
REC indicator
PROGRAM TIMER indicator
CHILD-LOCK indicator
POWER/WAKE-UP TIMER indicator
Infrared sensor
window
STANDBY/ON
button
