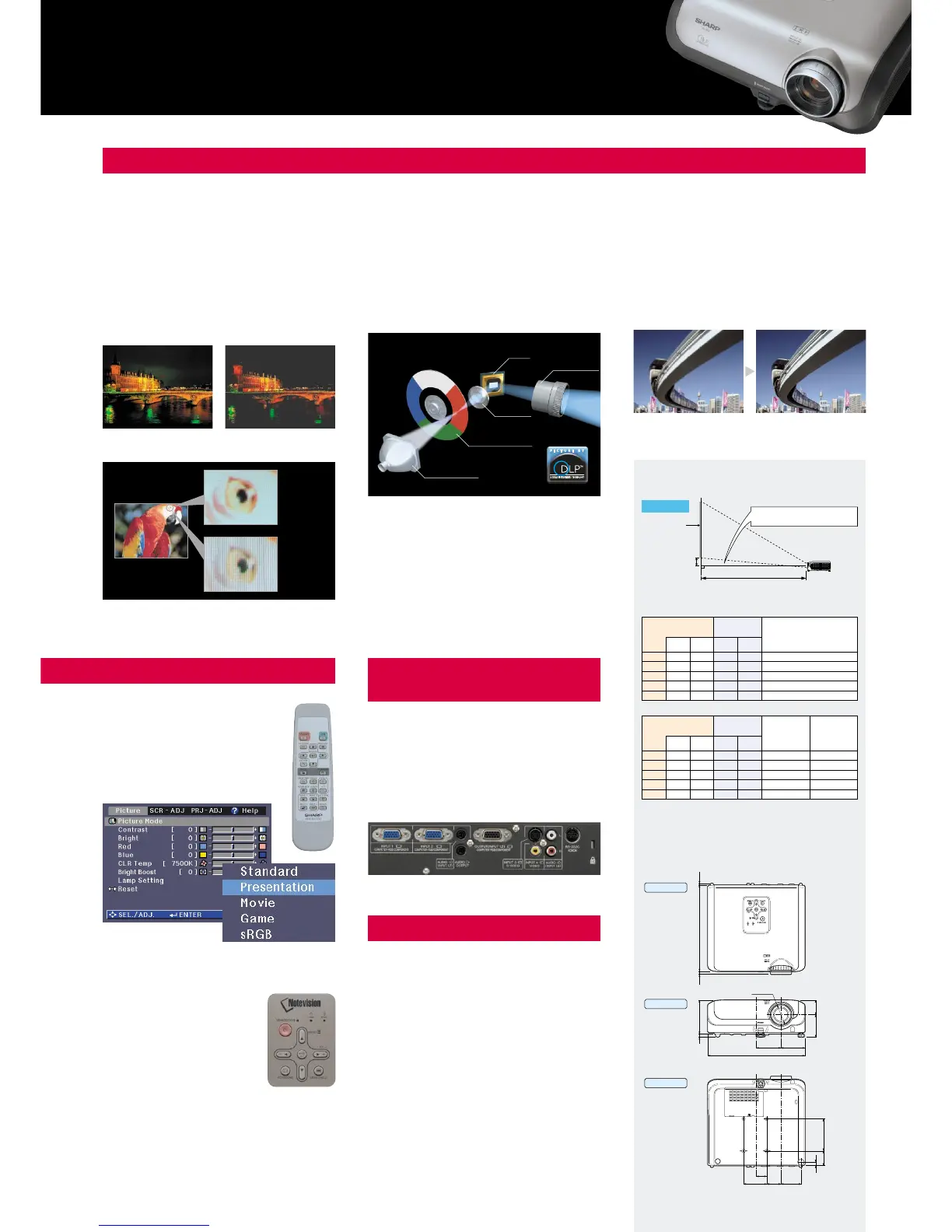

Sharp XR-20X User Manual

90˚
L: Projection distance.
Lens centre
Screen
H
315
10447.5
11
65.546.275
33.8
2809109
4773
69.2
80 77.5
11 5
Front
Back
Top
Multiple Connections for a
Wide Range of Applications
Multiple Input Terminals
Projectors can be connected to DVD players,
cable or satellite boxes, laptop and desktop
computers, HDTV tuners, VCRs and video
game consoles.
Other Outstanding Features
쐽 Dimensions (XR-20X/20S, 10X/10S)
Unit: mm
쎲 4:3 and 16:9 Aspect Ratios and
HDTV/DTV and DVD Compatible
(1080I, 1035I, 720P, 576P, 576I, 540P,
480P and 480I).
쎲
Image Shift Function
Images projected in 16 x 9 format can be
vertically shifted for better viewing in
limited spaces.
쎲 Auto Keystone Correction (XR-20X only)
쎲 Presentation Support: Freeze, AV Mute
쎲 Theft Deterrent Function “System Lock”
쎲 Key Lock Function
Operation to Deliver Multiple Use and Entertainment for Everyone
Use
Universal Design
The beeping sound informs the
user when the power is on and
cooling down has completed.
Also, intuitive button layout
allows the user to operate the
projector simply.
Quick Start
It takes only approx. 3 seconds to project the
image.
Advanced Picture Mode
Quickly and directly choose the
appropriate settings for the picture
mode and lamp brightness to
match the intended application.
Intuitive Button Layout
Comparison of Contrast Ratio
High-Resolution Seamless Image Comparison
“Picture Mode” triggers on the
Menu and the remote control.
Cutting Edge Technology Provides High-Quality Picture
2000:1 High-Contrast, High-Quality Image
By utilizing the DLP™ optical system and
Sharp’s optical technology, the projectors
produce crisp details and sharper blacks in
black parts thanks to a 2000:1 high contrast
ratio. Plus, DLP™ projection delivers film-like
seamless images.
3X Speed Colour Wheel
The projectors employ a colour wheel with a
3x speed engine, improving colour break-up
to an invisible level. Also, the non-contact
Fluid Dynamic Bearings for the high-speed
rotating colour wheel axle have a longer
lifespan.
IP Conversion from TrueVision™
Image Processing
TrueVision™ Image Processing provides
optimal video performance. The motion-
adaptive scan images produce smooth
moving scenes and ensure smooth natural
lines and edges.
Colour Wheel (CW)
Relay Lens
DMD™
Projection Lens
Projection Lamp
2000:1 400:1
XR-20X/20S, 10X/10S LCD
Without TrueVision™ Image
Processing
With TrueVision™ Image Processing
DLP™
Aperture Ratio:
90%
LCD
Aperture Ratio:
60%
쐽 Correlation of the XR-20X/20S and
XR-10X/10S to the screen
* Negative figures mean the lens center position is under the bottom
of the picture.
* Allow a margin of error in the above values.
Side View
NORMAL Mode (4:3)
Screen Size and Projection Distance
Picture size
Projection
distance [L]
Diag.
(inches)
300
200
100
60
40
610
406
203
122
81
Width
(cm)
Height
(cm)
Minimum Maximum
Distance from the
bottom of the
image to the lens
centre [H]
457
305
152
91
61
10.4m
7.0m
3.5m
2.1m
1.4m
12.1m
8.1m
4.0m
2.4m
1.6m
–48cm
–32cm
–16cm
–10cm
–6cm
STRETCH Mode (16:9)
Picture size
Projection
distance [L]
Diag.
(inches)
250
200
100
60
40
553
443
221
133
89
Width
(cm)
Height
(cm)
Minimum Maximum
Distance from the
bottom of the
image to the lens
centre [H]
311
249
125
75
50
9.5m
7.6m
3.8m
2.3m
1.5m
11.0m
8.8m
4.4m
2.6m
1.8m
–96cm
–77cm
–38cm
–23cm
–15cm
Adjustable
range of image
position [S]
±52cm
±42cm
±21cm
±12cm
±8cm
Horizontal line through the
lens centre

Sharp XR-20X Specifications

General

Brand	Sharp
Model	XR-20X
Category	Projector
Language	English
