Sharper Image 207367 - Reassembly and Battery Installation; Reassembly Instructions

- 3 -

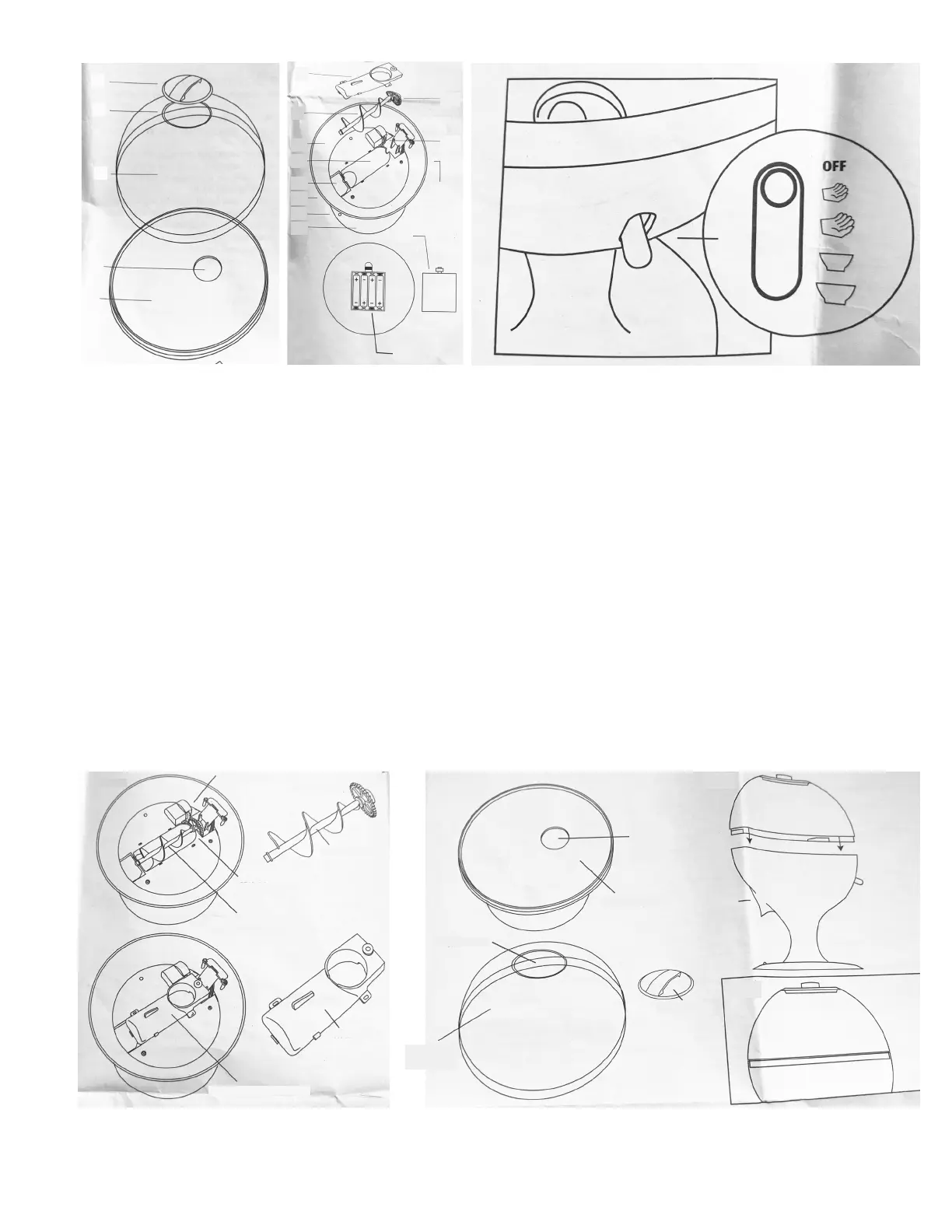

REASSEMBLY INSTRUCTIONS
1. Make sure the power/serving size switch is in the OFF position.
2. Replace the candy auger and be sure to properly position the auger gear with the drive
gear (Dia. A).
3. Replace the auger cover by aligning the raised tabs and recessed slots on the base with
the corresponding tabs and slots on the cover. (See Dia. B)
4. Replace the treat funnel by positioning the large hole in the funnel over the hole in the
auger cover. Align the hole on the treat funnel with the hole on the main body (Dia. C).
5. Replace the treat reservoir by engaging the locking slots on the treat reservoir into the
main body. Push down to engage and twist (rotate) right to lock into place.
6. Replace the filler cap.
7. Perform these steps in reverse to disassemble.
1
2
3
4
5
6
7
14
15
16
17
18
13
12
11
10
9
8
16
DIA. A
DIA. B
DRIVE GEAR
GEAR ASSEMBLY
CANDY AUGER POSITION
CANDY AUGER
AUGER GEAR
AUGER COVER
AUGER COVER POSITION
DIA. C
DIA. D
DIA. E
FILLER HOLE
TREAT FUNNEL
TREAT
FUNNEL
HOLE
FILLER CAP
SPOUT
TREAT
RESERVOIR
