Sharper Image 209472 - Installation Guide; Bracket Installation Methods

- 5 -
INSTALLATION
BRACKET INSTALLATION
METHOD 1

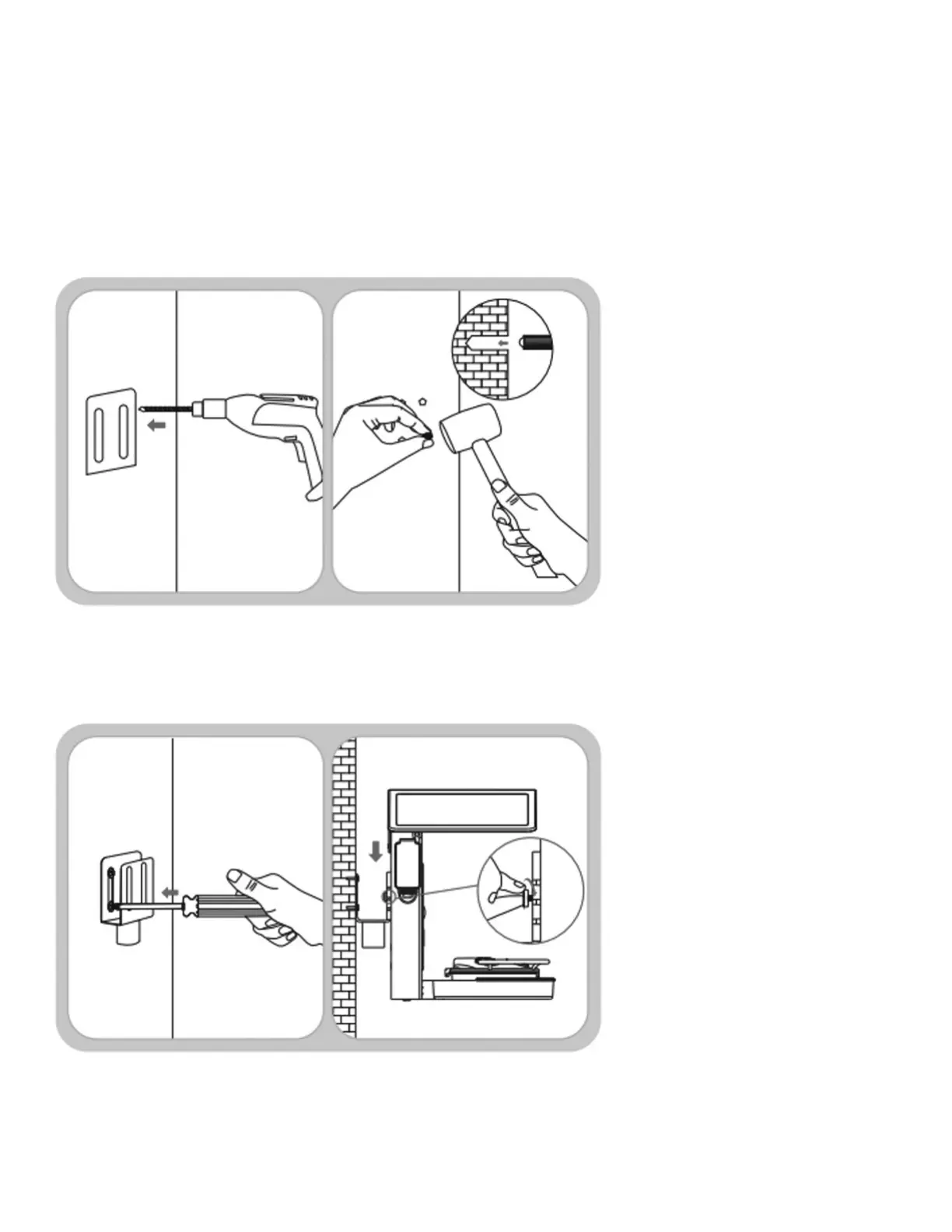

1. Use the provided template to mark the holes onto whatever surface you have chosen for
installation. Use a drill to drill 4 holes as indicated, then insert the provided green plastic wall anchor
screws into the holes.
2. Use the included long screws to mount the bracket as shown. Snap the feeder into the bracket
from the top and then attach it with the transparent nut screw.
