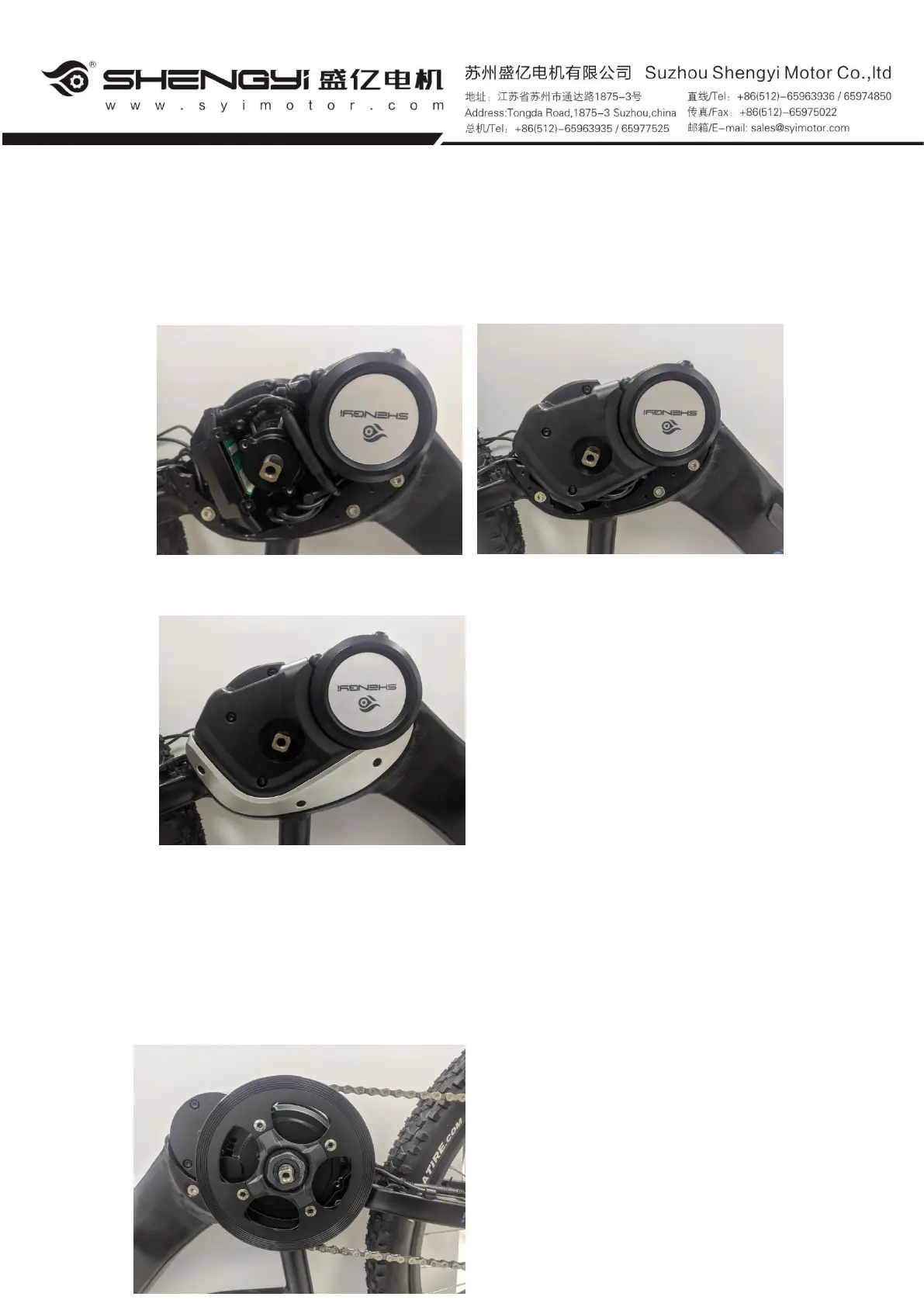

3.2.3 Install the plastic housing.
Fix the plastic shell to the motor;
Lock six M4X8 hexagon socket head screws as shown in the figure(locking
torque: <1Nm);
① ②
③
3.2.4 Install the tooth plate and lock the screw of the tooth plate.
Install the tooth disk assembly on the motor according to the spline groove
direction;
Tighten the nut (anti-tooth) of the tooth plate in the reverse direction(locking
torque: 20-24Nm);
