~ - 14 - ~

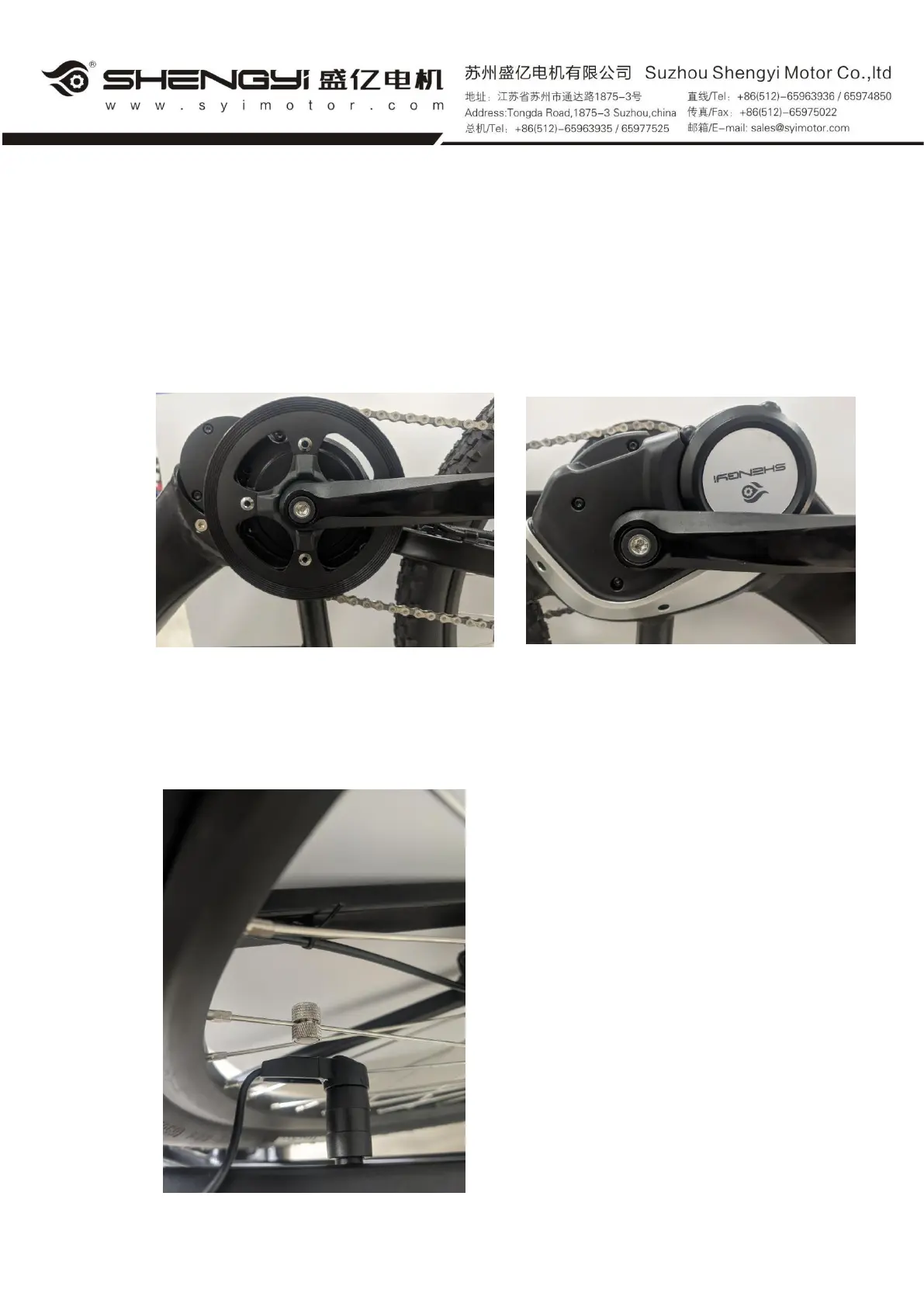

3.2.5 Install left and right cranks and lock crank screws.
Sleeve the crank on the central shaft (the included angle between the left and right
cranks is 180)(locking torque 30-35Nm);
Lock the crank screw as shown in the figure;
3.2.6 Install external speed sensor and magnetic steel.
See 2.2.3 Product Installation Diagram for installation requirements.
