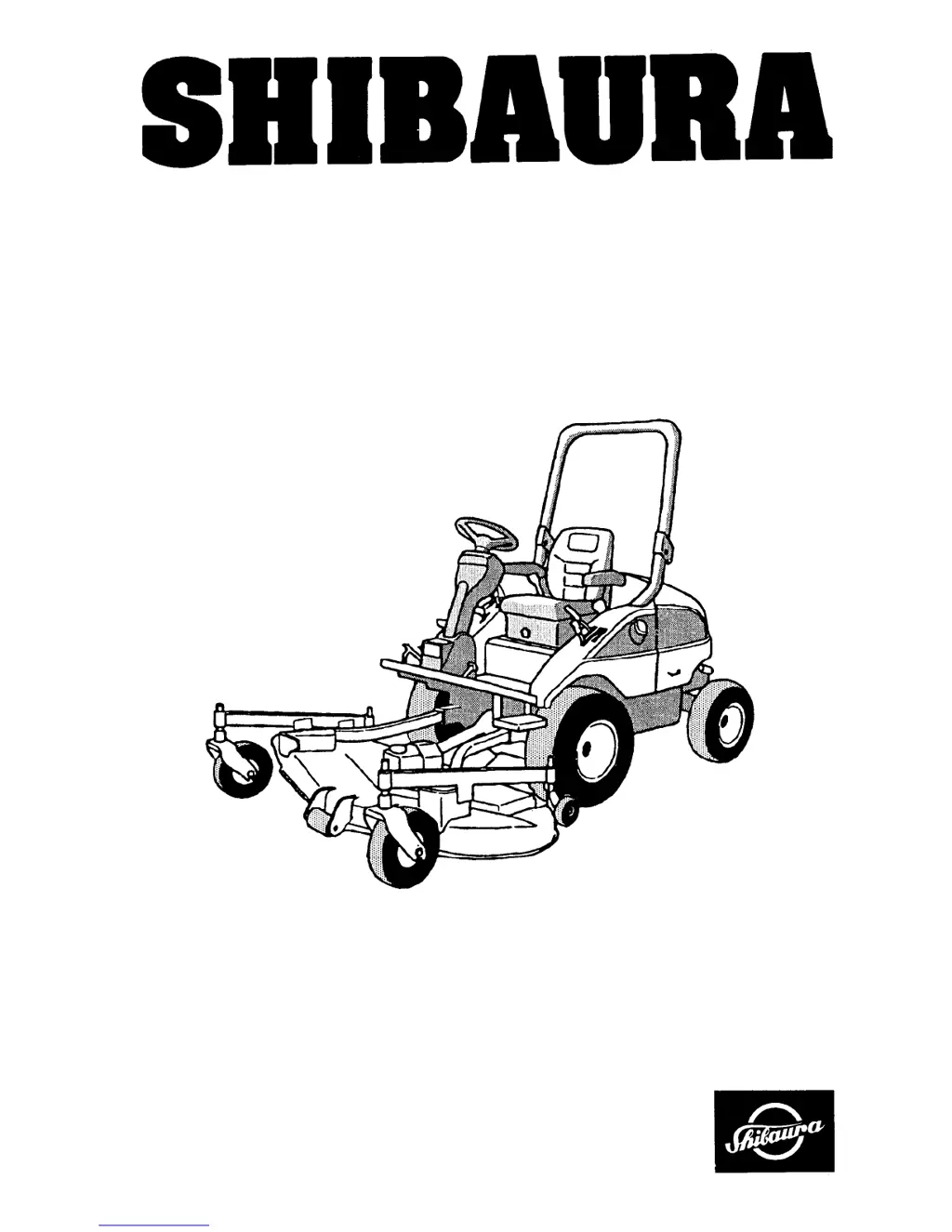

FRONT MOWER

CM284

CM364

WORKSHOP MANUAL

Table of Contents

Questions and Answers:

B
Bradley GriffithAug 8, 2025
What to do if my Shibaura CM364 Lawn Mower engine starts but will not stop at once?
- B
  burnsstaceyAug 8, 2025
  If your Shibaura Lawn Mower engine starts but doesn't stop immediately, several issues could be the cause. The filter or pipes might be clogged, requiring replacement or cleaning. Alternatively, air could be mixed in, necessitating a check of the fuel pipe and connections. A clogged fuel tank filter cap air breather could also be the culprit, requiring a wash. Finally, inspect the electric system of the engine stop solenoid for a short-circuit or disconnected wire and repair if needed.
K
Katie MaxwellAug 18, 2025
Why Shibaura Lawn Mower engine does not start?
- J
  James FriedmanAug 18, 2025
  The Shibaura Lawn Mower engine might fail to start due to a fuel shortage or air mixed in. Replenish the fuel, inspect the air entering the part, and bleed any air. Another potential cause is a defective engine stop solenoid. In this case, check and replace the electric system.
J
jessica31Aug 28, 2025
How to fix unstable engine output on Shibaura CM364?
- K
  Kristen AdamsAug 28, 2025
  If your Shibaura Lawn Mower's engine output is unstable, it could be due to air or water mixed in the fuel. Check the fuel pipe and connections to resolve air mixture issues. If water is present in the fuel, replace the fuel and the filter.
