The range gearbox housing also supports the differential
assembly, Figure 301X. The two-speed transmission
gearbox consists of constant mesh spur gears and sliding
gears. The range gearbox also contains a four wheel drive
output shaft and two way clutch.
The range selector lever is located on the left-hand panel
adjacent to the operator’s seat. The range selector lever can
be shifted when the HST pedals are in neutral. The range
selector lever and Four-Wheel-Drive (FWD) selector lever
are activated by the same lever.
The range selector lever has three positions; forward (high
range) mid-position (neutral) and rear ward (Low range).
In high range “H” forward speed ranges from 0 – 16.6
km/h and low range from 0 – 9.7 km/h. In reverse the high
speed ranges from 0 – 10.7 km/h and in low range from 0
– 6.3 km/h.
The differential assembly consists of a differential lock
coupler, pinion differential and two bevel side gears
splined directly to the axle shafts.
2) Brakes
The brakes are located in the front axle housing. The
brakes are wet type disc brakes and consists of stator, disc,
steel ball, spring, actuate plate and brake lever. The brakes
are mechanically applied by individual pedals located on
the left side of the steering column (Dealer option).
A master brake pedal, located on the right side, applies
both brakes evenly.
3) Differential Lock
A differential lock is provided to lock the differential so
that both front wheels rotate when power is provided by
the transmission even though one wheel may lose traction.
The differential lock control pedal is foot operated and is
located on the left side of the steering column.

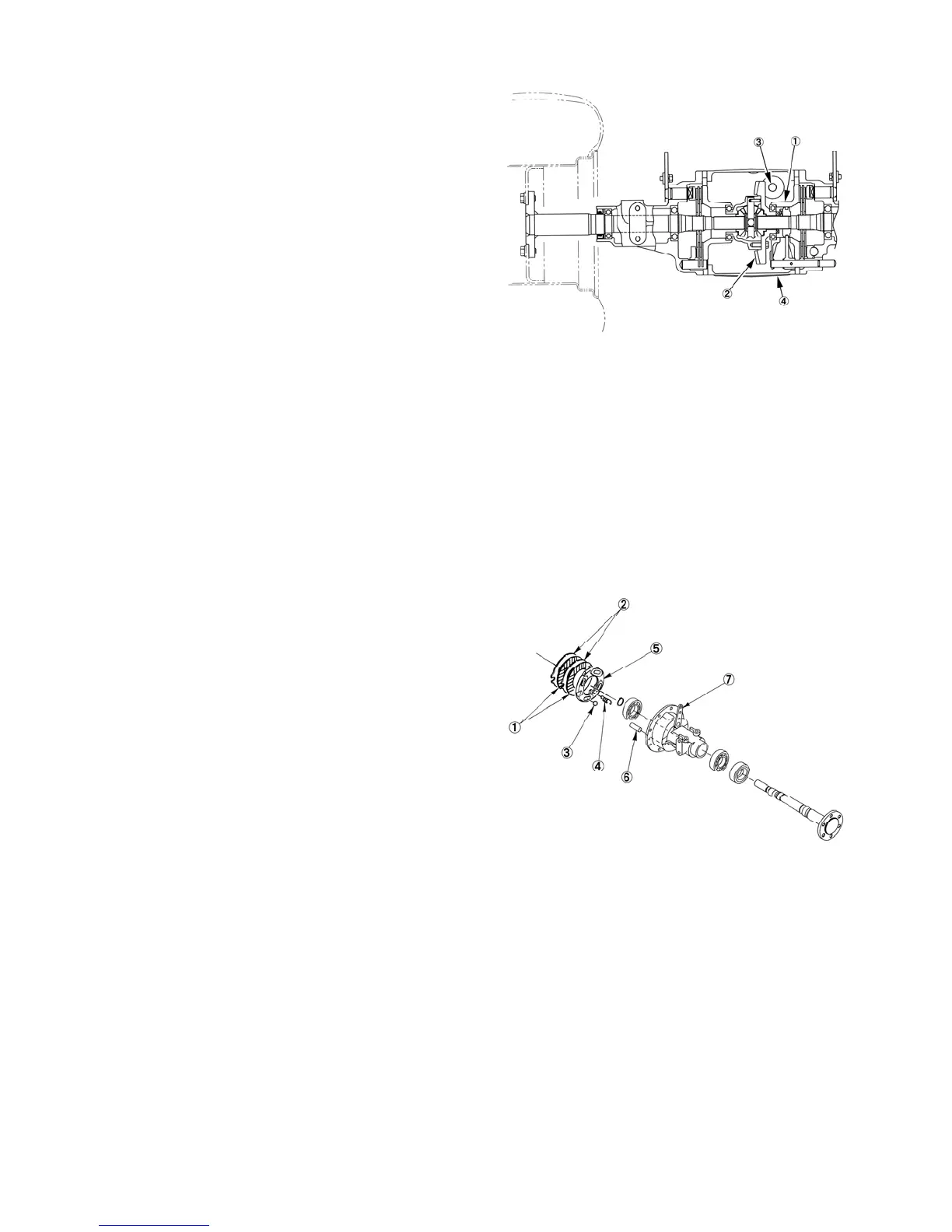

302X
Range Gear and Differential Housing
1. Differential Lock 3. PTO Shaft
Coupler 4. Gearbox Housing
2. Differential
303X
Brakes
1. Brake Disc 4. Spring
2. Stator 5. Actuator Plate
3. Steel Ball 6. Pin
7. Brake Lever
