Section 9 Periodical inspections and services
19. Inspection and Adjustment of Clutch
Belt
Before starting the inspection and
adjustment, be sure to stop the engine,
apply the parking brake, pull out the key
and set the mower clutch lever to OFF . If
not, you may be injured.
Inspection of belt
(1) Open the bonnet.
(2) Check the belt for wear and damage.

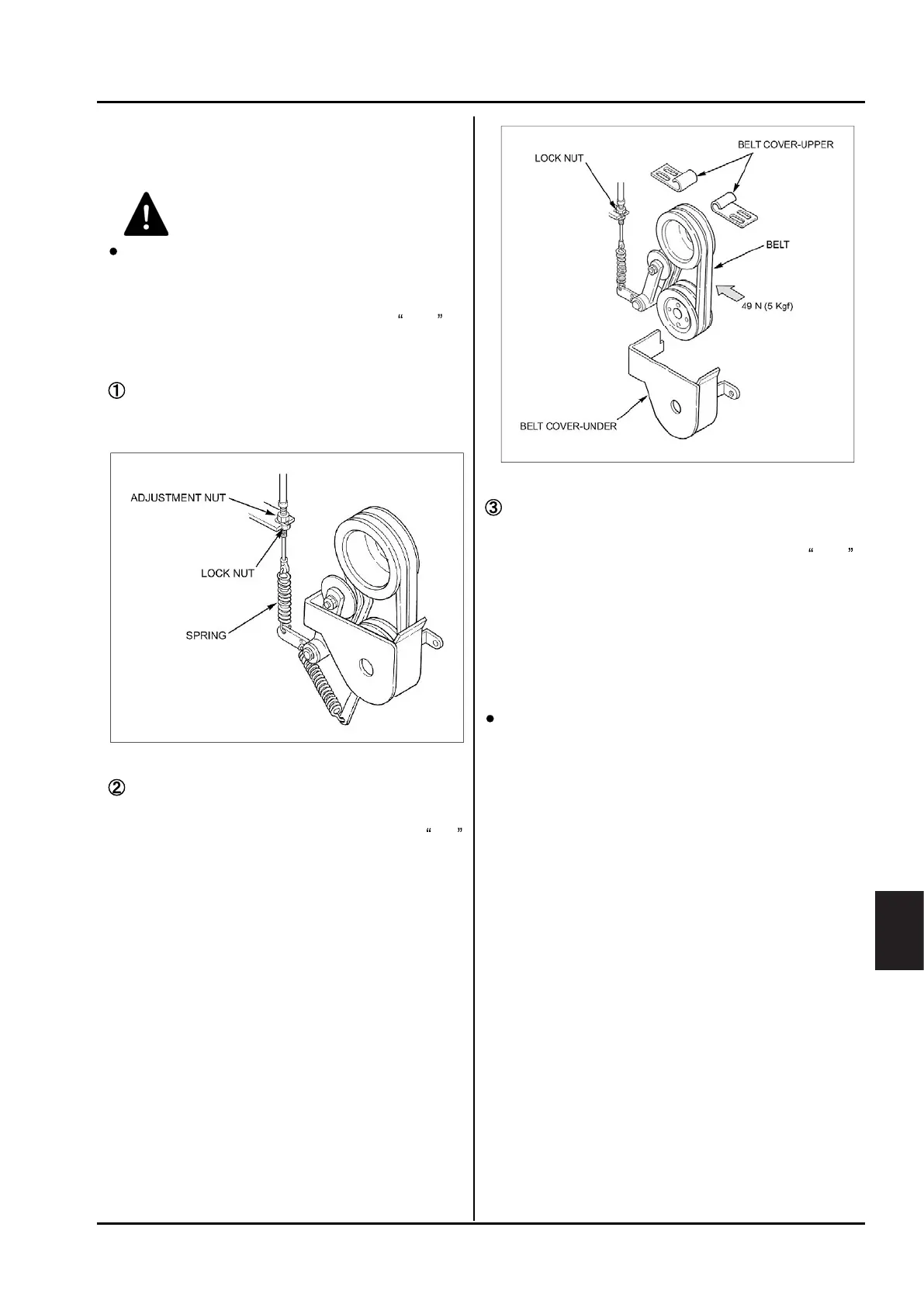

Adjustment of belt tension
(1) Open the bonnet.
(2) Set the mower clutch lever to the ON
position and adjust the belt tension.
Proper belt tension is such that the
approximate center is deflected 5mm when
pressed by a force of 49N (5kgf). Adjust the
tension properly in the procedure below.
(3) Loosen the tension wire lock nut and adjust
the wire length.
(4) After the belt tension is properly adjusted,
tighten the lock nut.
Replacement of belt
(1) Open the bonnet.
(2) Set the mower clutch lever to the OFF
position.
(3) Remove the upper and lower belt covers.
(4) Replace the belt and adjust the belt tension
as described above.
[Caution for Handling]
When replacing the belt, replace both at the
same time.
Warning
63
9
