Shimano Steps SW-EM800-L - Connecting EW-SD50 Electric Wire; Setting Plug to TL-EW02

15
Installation/removal
Electric wires
TECH TIPS

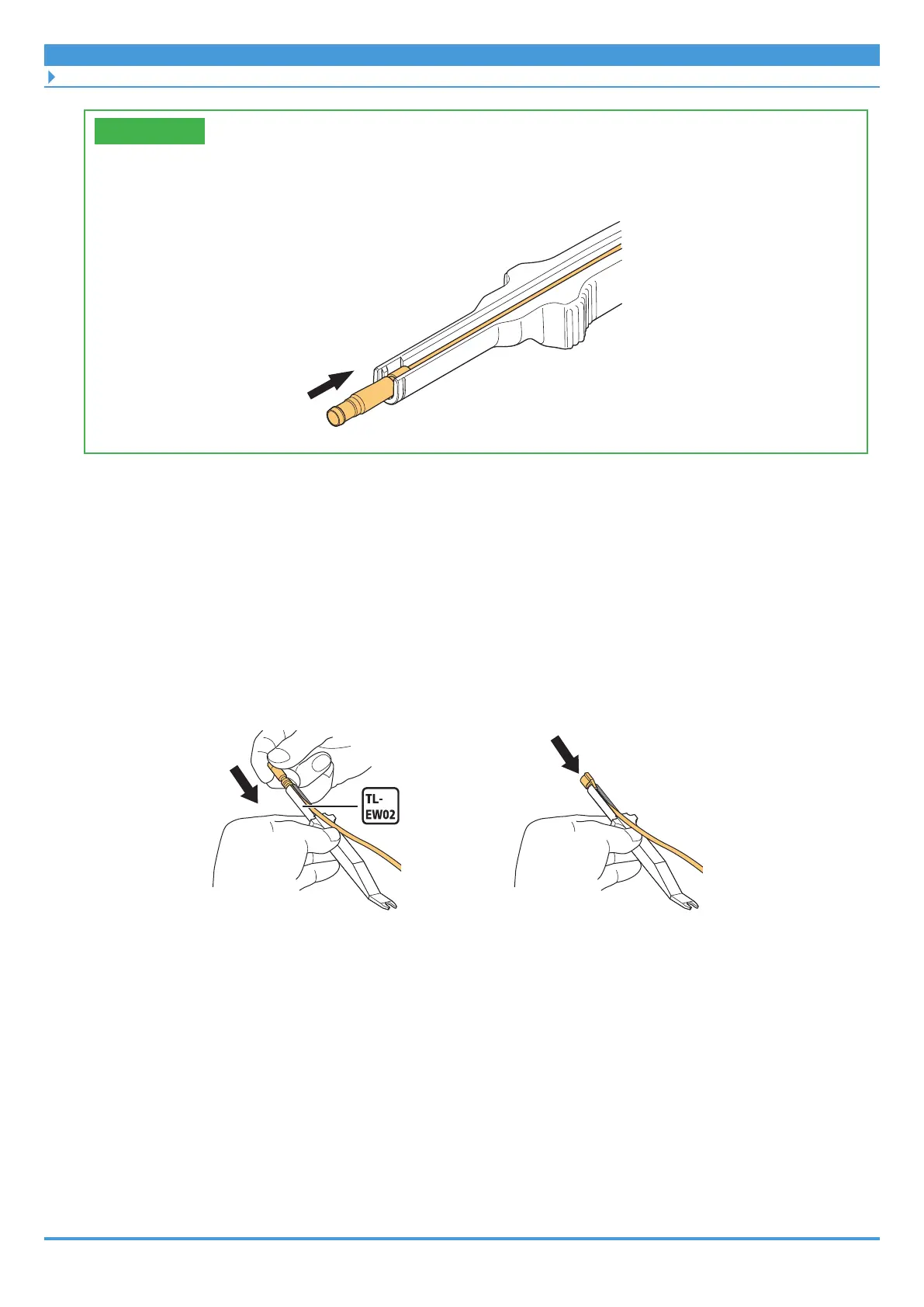

• If there is limited space to insert the tool, you can use the TL-EW300 as indicated
in the figure to disconnect the electric wire.
` Connecting the electric wire (EW-SD50)
Connect the electric wire to the E-TUBE port.
1. Set the plug of the electric wire to the TL-EW02.
If there is an alignment tab on the plug of the electric wire, set it aligned with the groove
on the SHIMANO original tool.
Without alignment tab on plug With alignment tab on plug
