Connection and communication with devices
Connection with all SHIMANO STEPS components
Clamp band type cycle computer

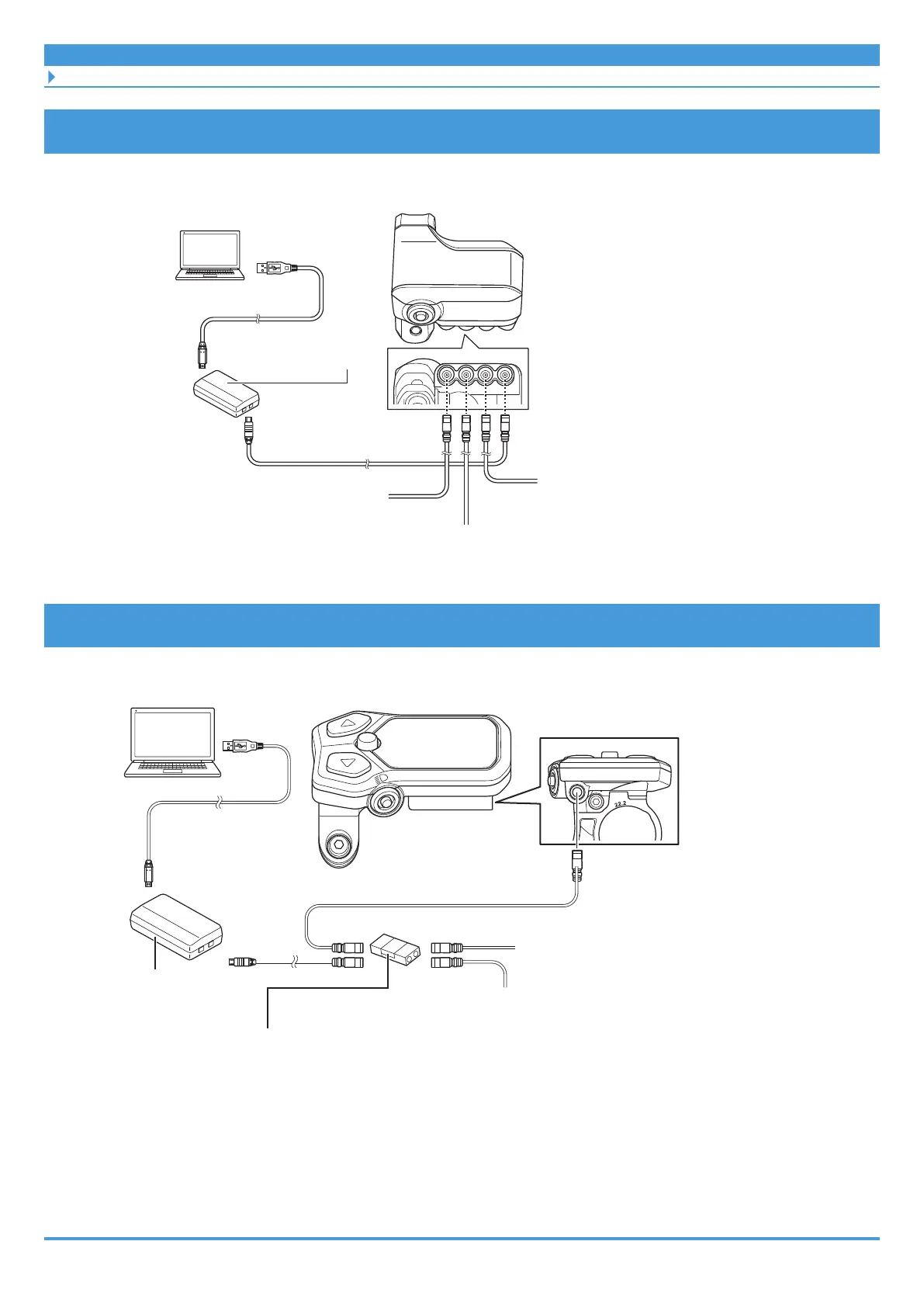

Refer to the figure when connecting.
SM-PCE1
SM-PCE02
Connect to drive unit
Connect to switch unit
Connect to switch unit
Switch unit integrated type cycle computer
Refer to the figure when connecting.
SM-PCE02
SM-PCE1
EW-JC304 (EW-SD300 type)
SM-JC40/SM-JC41 (EW-SD50 type)
Connect to switch unit
Connect to drive unit
