Temporarily secure the outer casing to the handlebar
(by using tape or similar material).
Installation of the brake
Outer casing
Tape
A A
Then wrap the handlebar with handlebar tape.
Cut the cable at the length at which it is not pulled
tight when the handlebar is turned all the way to
the left and right.
Note:
If a squeaking noise occurs after a long period of
use, lubricate the parts.
A
FOR
WARD
1 mm or more
FOR
WARD

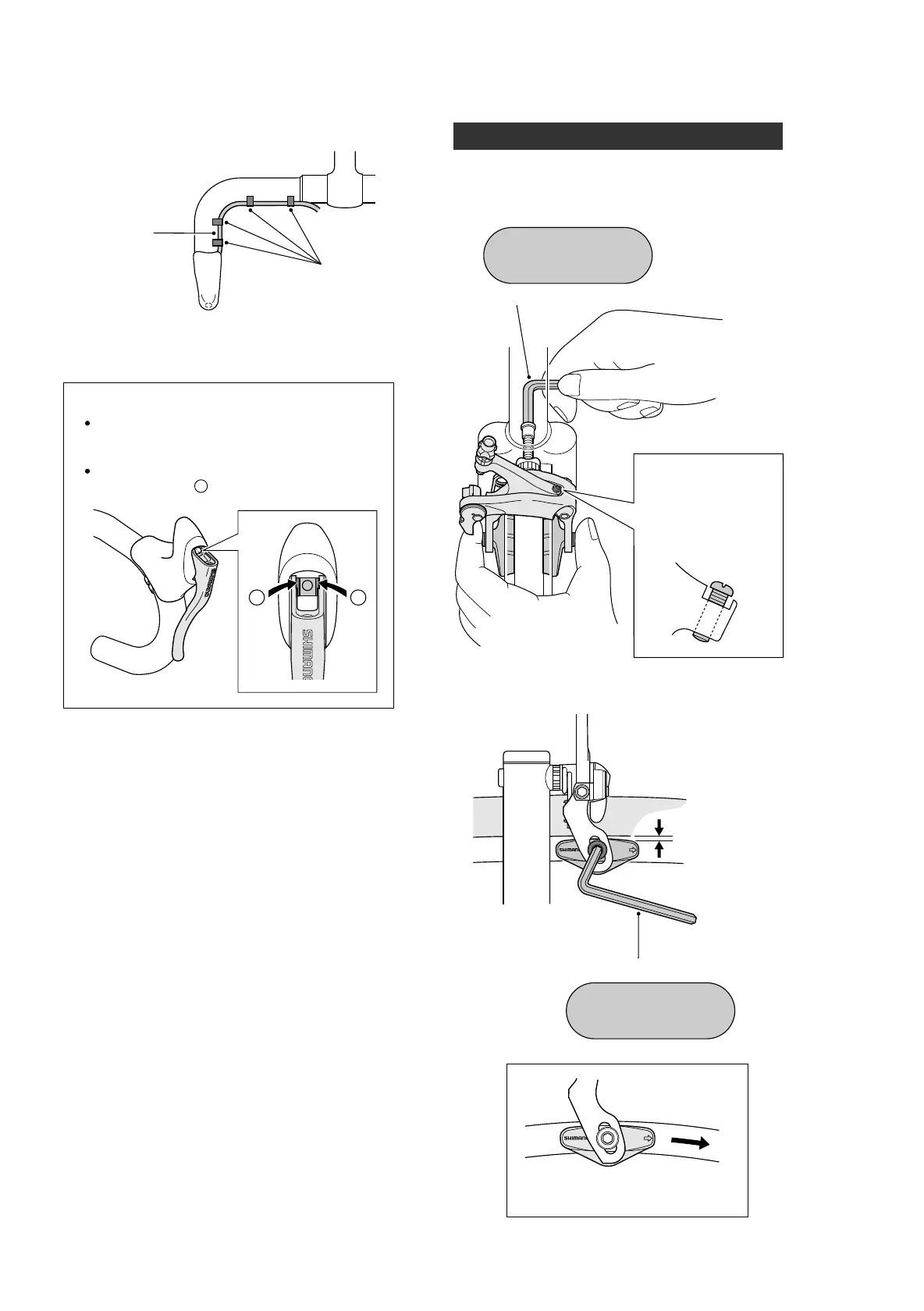

Installation of the brake itself
5 mm Allen key
The usual position
during installation is
when the head of the
centering adjustment
bolt is as shown in the
illustration.
Compress the arch‚ and set while the shoe is in firm
contact with the rim.
5 mm Allen key
Direction of
rim rotation
Brake shoe setting position
Tightening torque:
8 – 10 Nm
{69 – 87 in. lbs.}
Tightening torque:
5 – 7 Nm
{43 – 61 in. lbs.}
