INSTALLATION

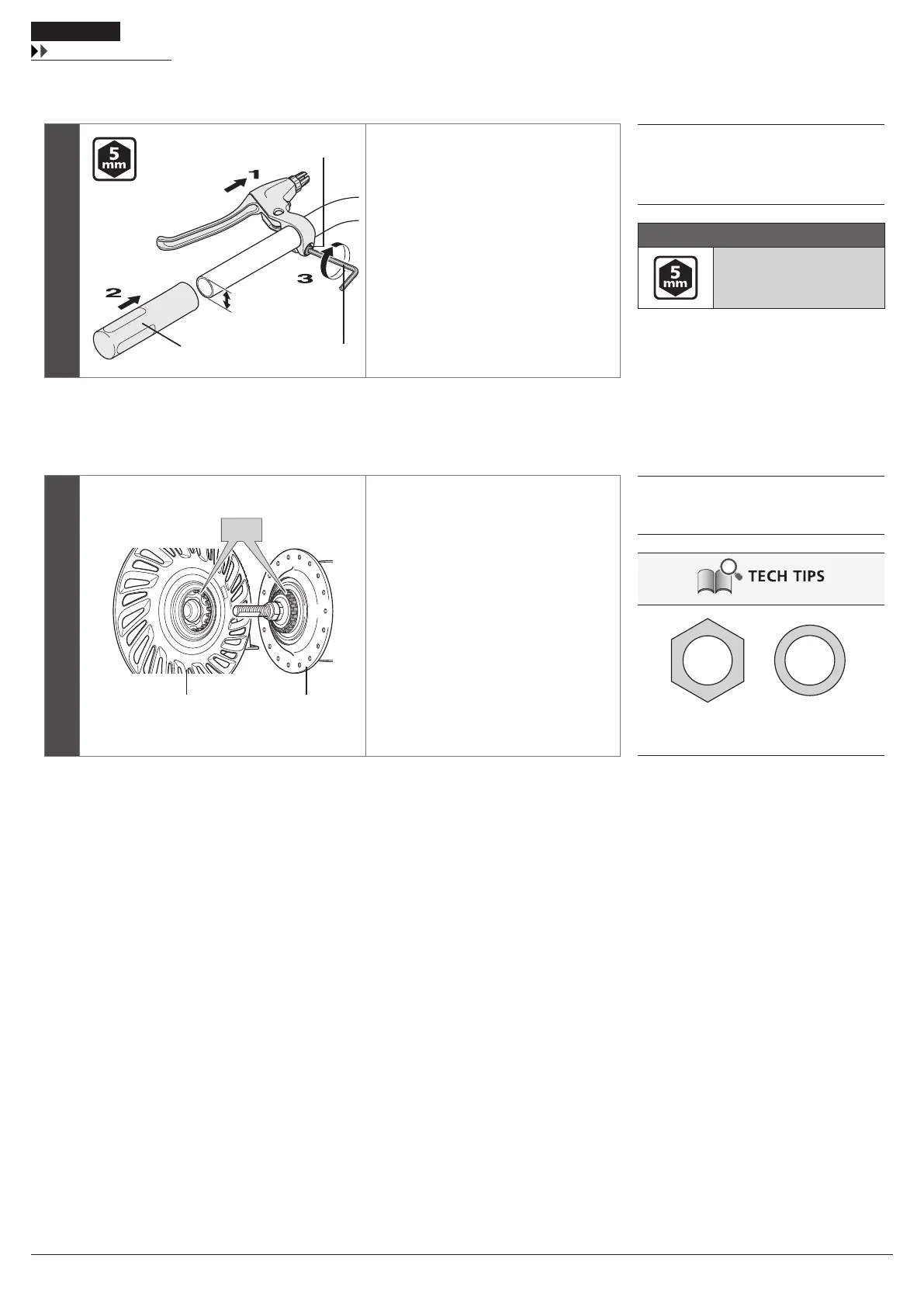

Installation of the lever
Installation of the lever
(C)
(A)
(a)
(B)
(a) ɸ22.2 mm
(A) Clamp bolt
(B) Grip
(C) 5 mm hexagon wrench
Tightening torque
6 - 8 N·m
Installing the INTER M brake to the hub body
(a)
(A)
(B)
Engage the serrations on the hub body
(B) with the serrations on the INTER M
brake (A), and then provisionally
tighten the brake unit fixing nut or
the brake unit fixing washer.
(a) Align the serrations.
(A) INTER M brake
(B) Hub body
Brake unit
fixing nut
Brake unit
fixing washer
