INSTALLATION
Spoke lacing
8
INSTALLATION
Spoke lacing

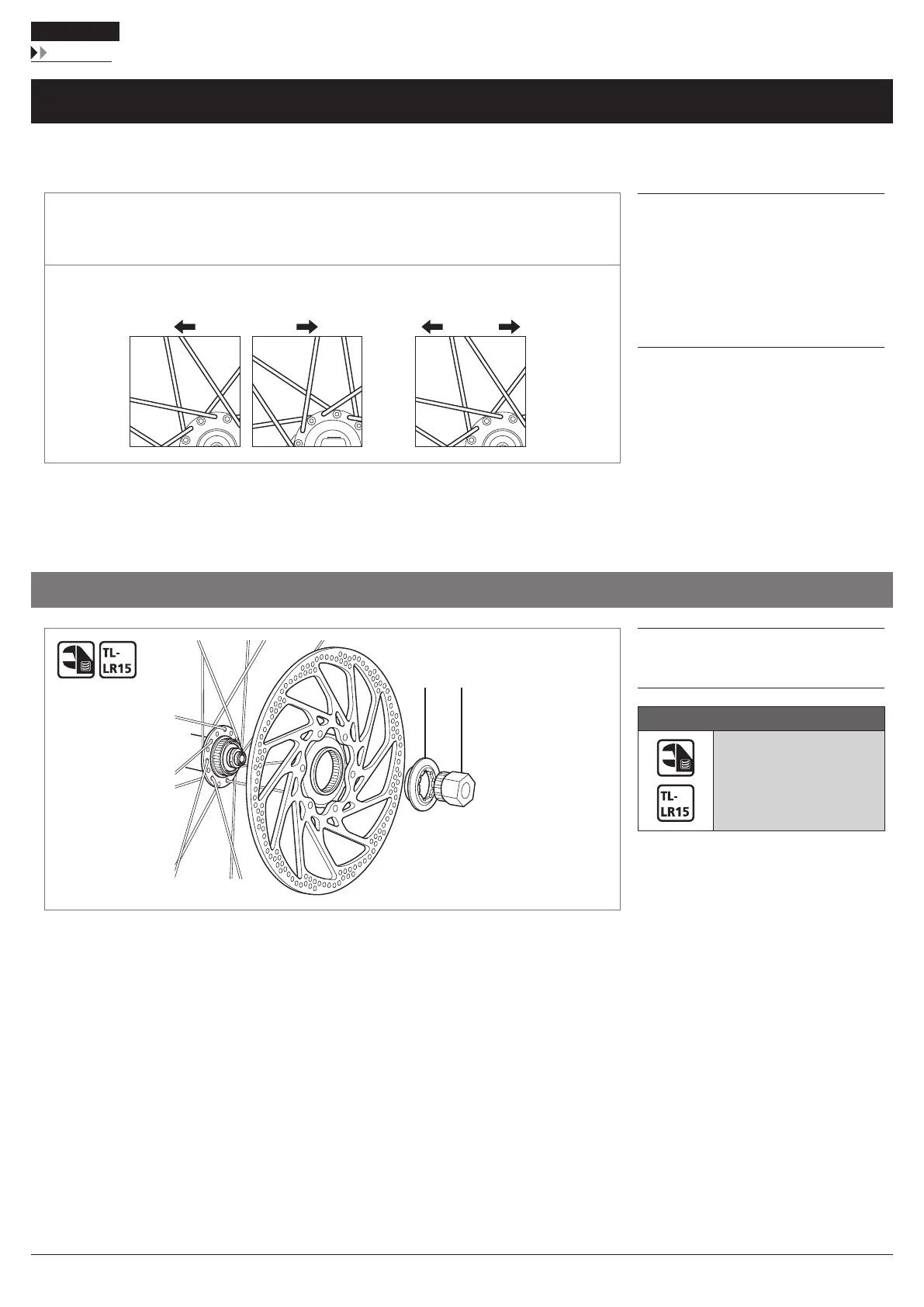

Check that the spokes have been laced as shown in the illustration.
A radial lacing cannot be used.
(w)
For front: Left (disc brake rotor)
side
(x)
For front: Right side
(y)
For rear: Left (disc brake rotor)
side
(z)
For rear: Right (sprocket) side
Rotating direction of wheel
(w) (x) (y) (z)
Installation of the disc brake rotor
Quick release type
(A) (B)
(A)
Disc brake rotor fixing lock ring
(B)
TL-LR15
Tightening torque
40 N·m
