EN
6
三
一二

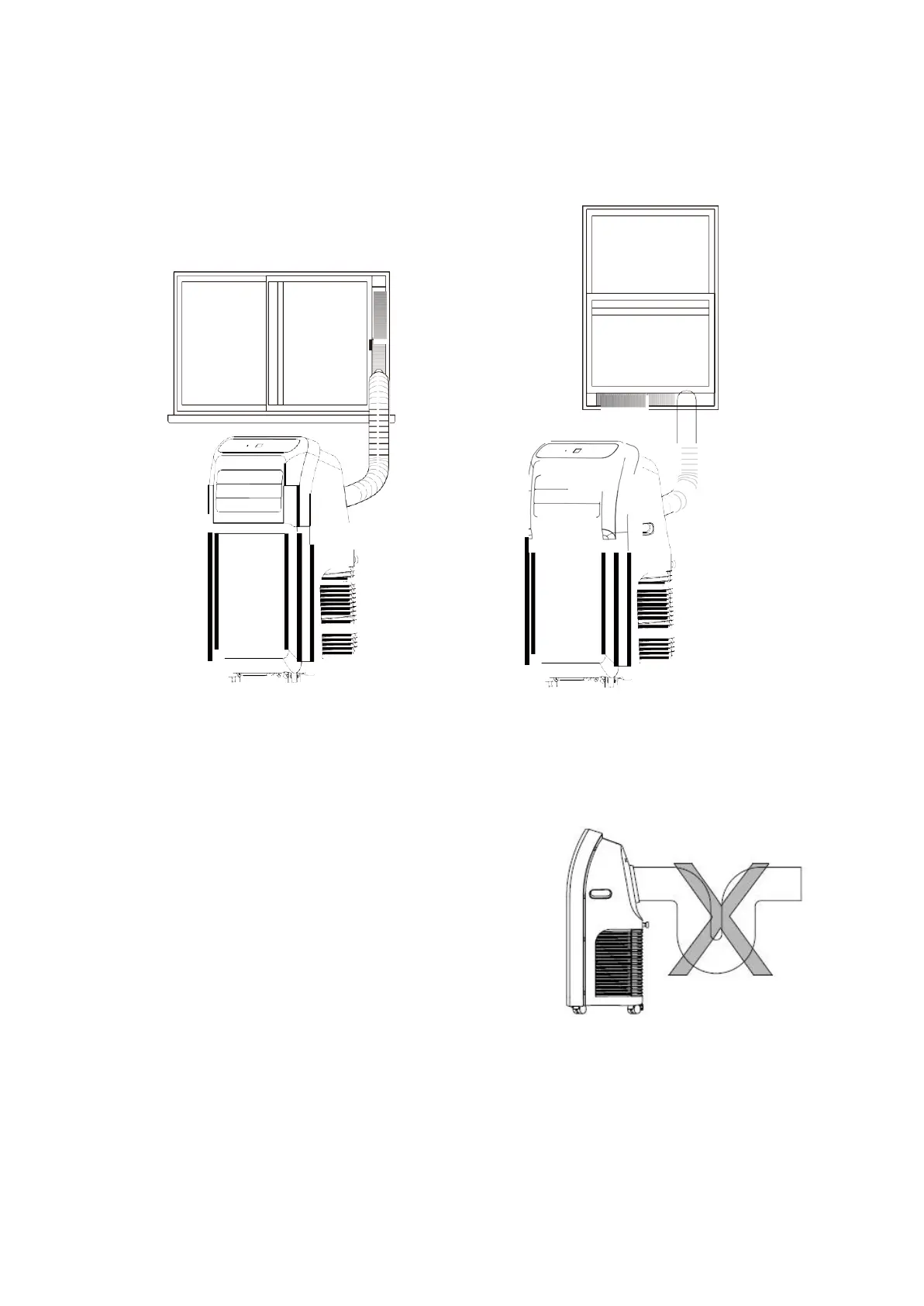

Insert the air exhaust hose into the window sealing plate, adjust opening width of
window so that the window can match with the sealing plate properly; length of the
sealing plate is adjustable.
一
员
, -'
＿
一 飞
Incorrect installation
｀
＿ 一一．三二
It’s important to keep the exhaust duct smooth. Incorrect installation will affect work of
the A/C.
Prevent the exhaust duct from seriously bending.
Ensure air can flow smoothly in the duct.
Warning:
The exhaust duct is designed especially for this model.
Don’t replace or lengthen it; otherwise, it will result in
failure.
Notice:
Max. developed length of the exhaust duct is 1,500mm. It’s better to shorten it while use
and keep it horizontal while installation.
