Shire Cubby - Joining Roof Panels; Fixing Roof Panels to Walls; Cover Strips Installation

17
GB-IE Fit cover strips at each corner with 3 nails each
Nail
(40mm) x12
Cover strip
(44C-1225) x04
44mm

16
15
Nail
(40mm)x22
Assembly from
Steps 12 –13

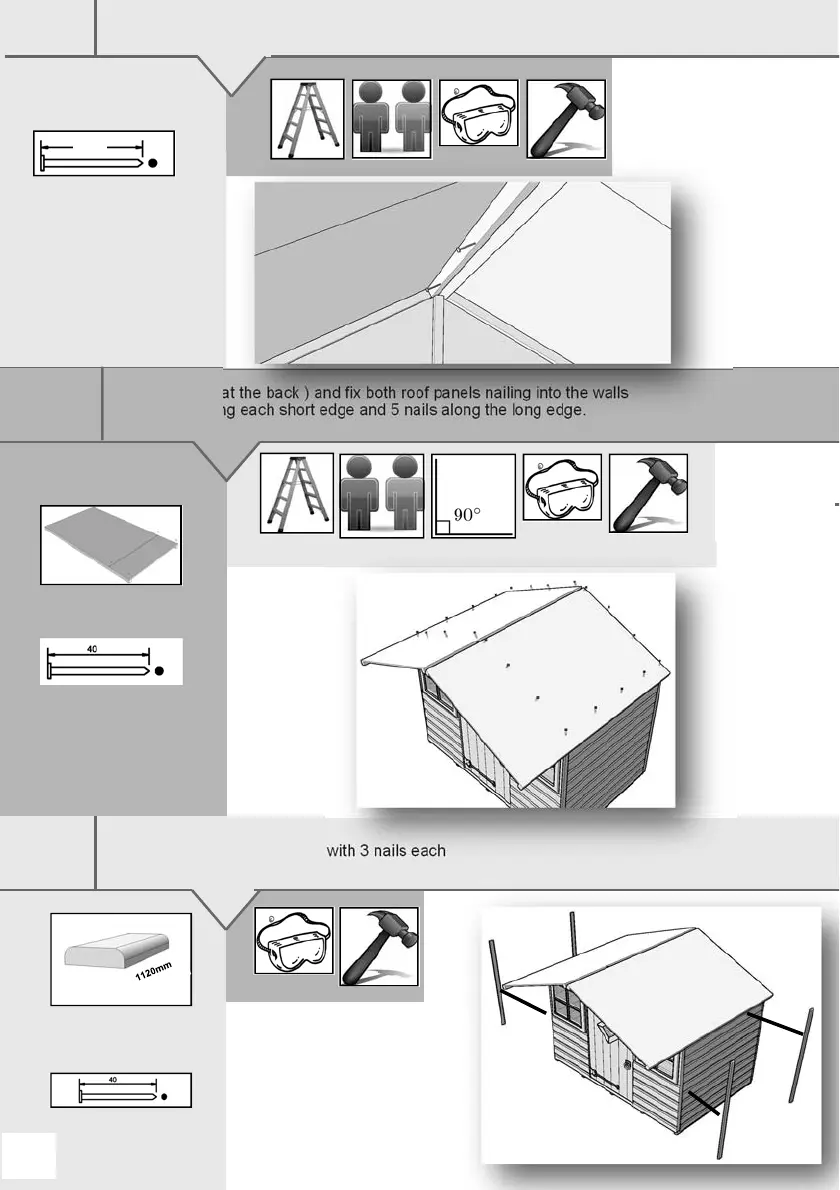

GB-IE Hold the roof panels together and nail together
GB-IE Position ( flush at the back ) and fix both roof panels nailing into the walls
Use 3 nails along each short edge and 5 nails along the long edge.
Nail
(60mm) x03
60
20
