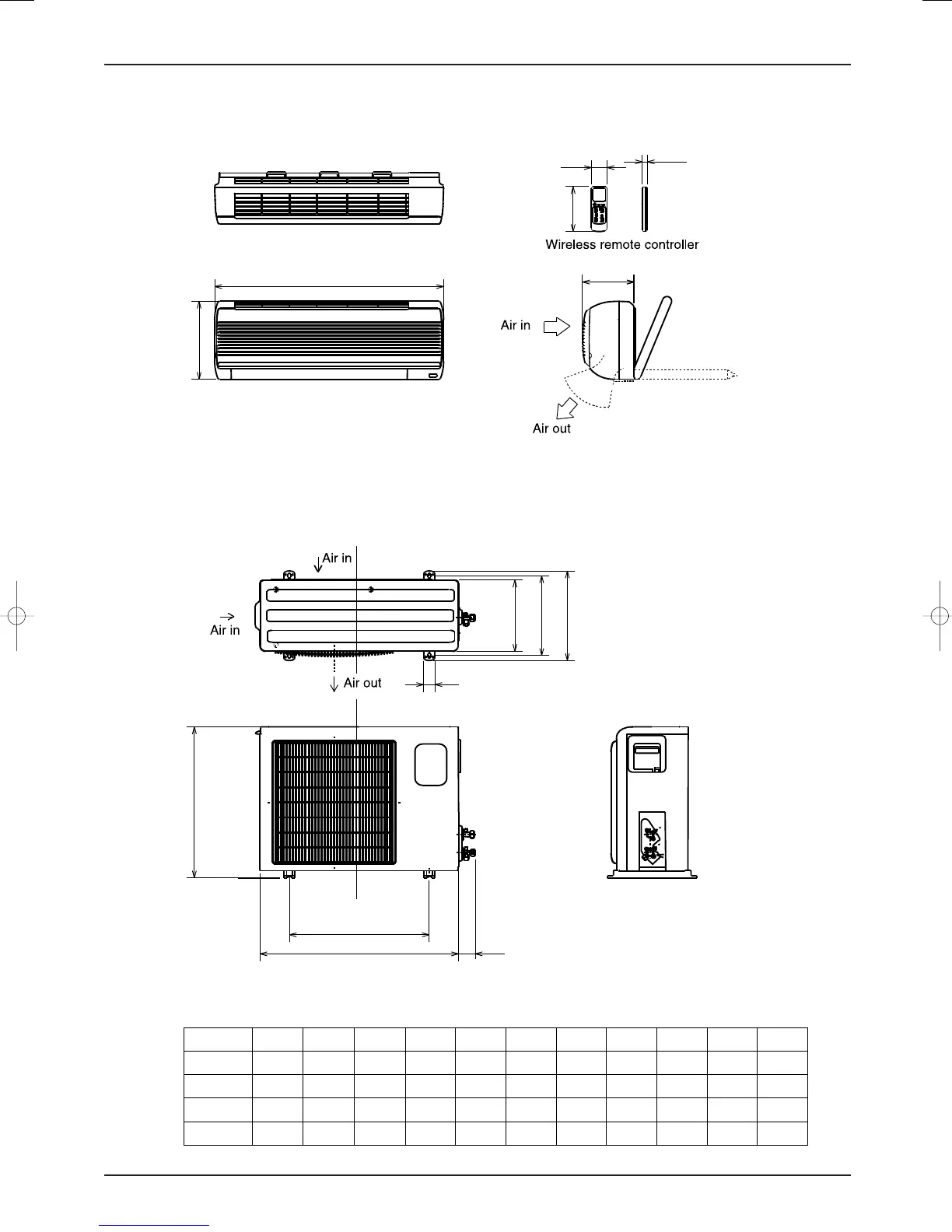

Product Dimensions
Outdoor Unit
OB207t-1qxp 25/9/97 8:51 PM Page 12
Indoor Unit
A
B
20 mm
400 mm
57 mm
C
H
G
F
I
K
J
D
E
Unit: mm
Capacity A B C D E F G H I J K
7K&9K 718 240 180 600 500 230 271 296 52 376 55
12K 770 240 180 700 552 256 290 328 48 439.2 55
18K 898 280 202 760 552 256 290 328 48 507.8 63
24K 898 280 202 902 650 307 349 399 65 753.5 63
Air Conditioner Service Manual
