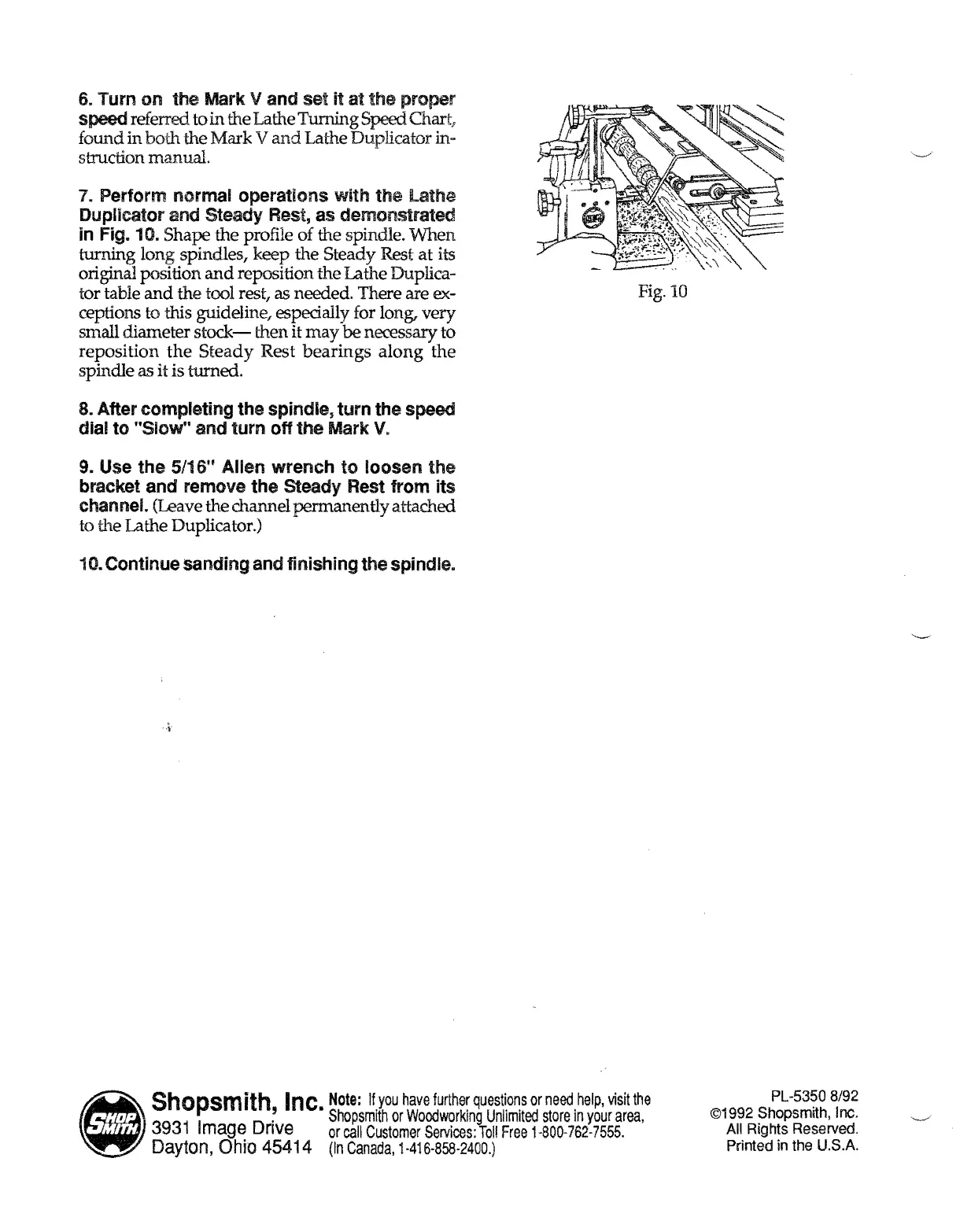

6.
Turn
on
the Mark V and
set
it
at
the
proper
speed
referred to
in
the Lathe Turning Speed Chart,
found in
both
the Mark V
and
Lathe Duplicator in-
struction manual.
7. Perform
normal
operations
with
the
lathe
Duplicator and Steady Rest,
as
demonstrated
in Fig. 10.
Shape
the
profile of the spindle.
When
turning long spindles, keep the Steady Rest
at
its
original position
and
reposition the Lathe Duplica-
tor table
and
the tool rest, as needed. There are ex-
ceptions to this guideline, especially for long, very
small diameter
stock-
then it
may
be
necessary to
reposition
the
Steady
Rest
bearings
along
the
spindle as
it
is turned.
8. After completing
the
spindle,
turn
the speed
dial
to
"Slow"
and
turn
off
the
Mark
V.
9.
Use
the
5/16"
Allen
wrench
to
loosen
the
bracket and remove
the
Steady Rest
from
its
channel. (Leave the channel permanently attached
to the Lathe Duplicator.)
10.Continue sanding and finishing the
spindle
.
Fig.
10
PL-5350
8/92
•
Sh
opsmith Inc
Note:
If
you
have
further
questions
or
need
help,
,;sit
the
I •
~.
Shopsmith
or
Woodworking
Unlimited
store
in
your
area,
©1992
Shopsmith,
Inc.
3931
Dnve
or
call
Customer
Services:
Toll
Free
1-800-762·7555.
All
Rights
Reserved.
Dayton,
Ohio
45414
(In
Canada,
1-416-858-2400.)
Printed
in
the
U.S.A.
