NOMENCLATURE
The Shopsmith MARK V will perform all the
functions of a Table Saw, Disc Sander, Drill
Press, Horizontal Boring Machine, and Wood
Lathe.
Basically, the MARK V is a rigid Bench that
holds the Headstock and a Worktable System.
The upper part of this Bench can be positioned
horizontally or vertically. The Headstock and
the Worktable slide independently and are
positioned along the Upper or Way Tubes.
You can mount Accessories to the Headstock
and operate them at different speeds. The
Worktable can be positioned over, under or
beside these accessories to hold stock at vari-
ous angles. In this way, the Bench, Headstock,
Worktable, and Accessories combine to make
a unique, capable and versatile Woodwork-
ing System.

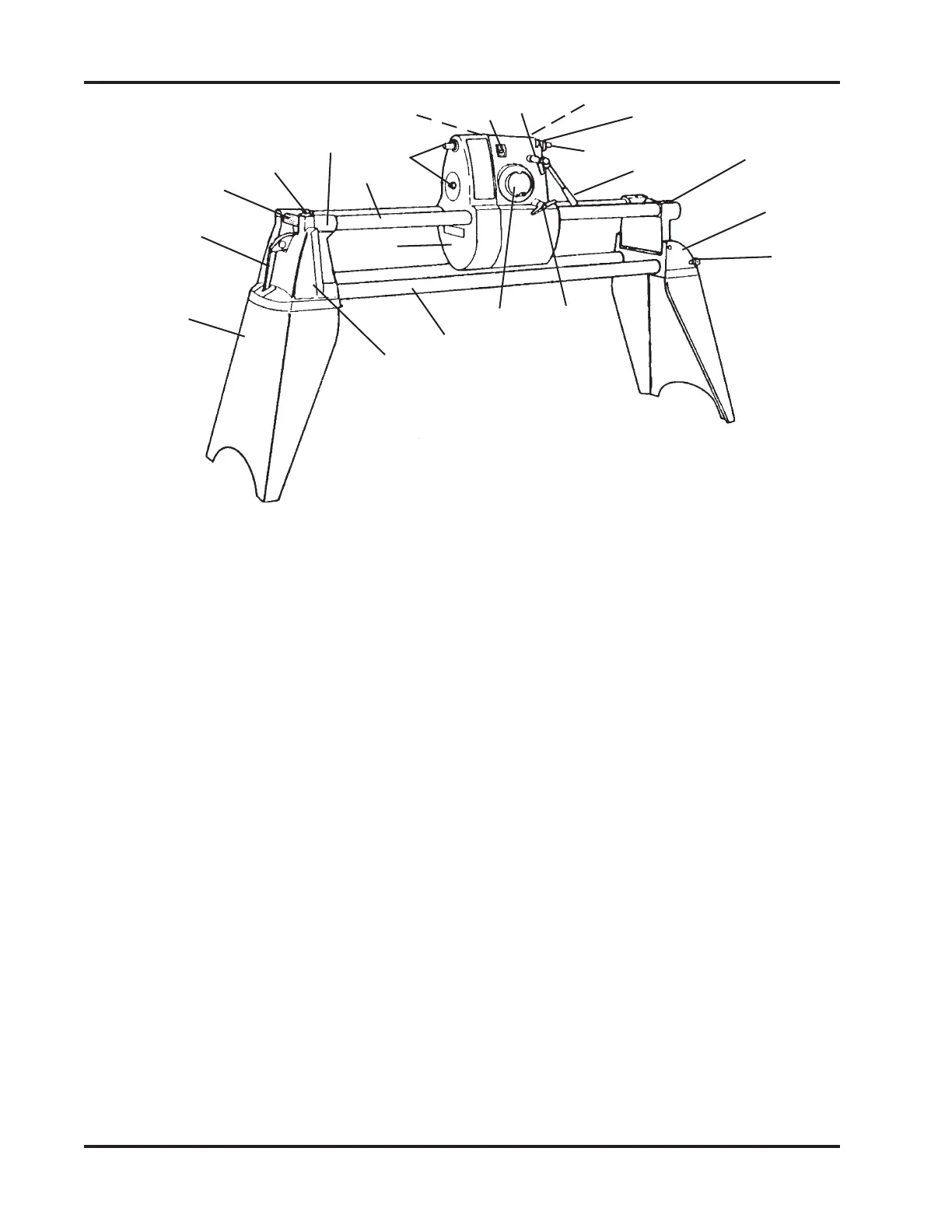

Before you proceed, familiarize yourself with
the MARK V's basic parts:
1. Legs - Support the Way Tubes and Bench
Tubes.
2. Headrest Lock - Secures the MARK V in
the horizontal position.
3. Accessory Mount Locks - Secures the
Extension Table, Major Accessories, and
the Lathe Tailstock.
4. Power Mount - Holds the Extension
Table and the Major Accessories.
5. Way Tube Tie Bar - Holds the free end of
the Way Tubes.
6. Way Tubes - Supports the Headstock
and Carriage and allows them to slide.
7. Auxiliary Spindles - The Upper Spindle
provides power to the Bandsaw, Belt
Sander, Strip Sander and Thickness
Planer. The Lower Spindle provides
power to the Jointer and Scroll Saw.
8. Logo Cover - Provides access to the wir-
ing and Speed Changer Mechanism.
Used for maintenance access. (Hidden
from view)
9. Power Switch - Turns the MARK V on
and off. Has a removable Safety Key on
newer MARK V’s or is a Toggle Switch
on older units.
10. Quill Lock - Secures the Quill in posi-
tion.
11. Quill Feed Stop - Stops the Quill at
predetermined distances out from the
