ACCESSORY INSTALLATION
ACCESSORY INSTALLATION
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Wdmt Fishing Rod Holder102511011
RS4 Quick-Connect Accessory Bracket (sold separate)
10067061
--
Accessory Connector Clamp 4.5 - Rs4
100282312
Bolt Bag - QC Accessory Connector Bracket
10044321
--
T Handle 3/8-16 x 1.5 x 2.5 w/ Cup Point
100087613
Bolt Carriage 3/8-16 x 1.0 SS 304
100195644
Nut Flange 3/8-16 Brass
10018024
5
1
4
3
2
5
Step 1. Attach fishing rod holder to accessory
bracket using 3/8 x 1 Carriage Bolts and 3/8 Flange
Nuts.
Step 2. Slide handle of fishing rod into tube.
Note: Not all fishing rods will work. Rod holder is
about 32" from deck surface and will accept up to a
1-3/8" diameter rod handle.
3
6
.
1
2
5
Ø 1-3/8" I.D.
QC Fishing Rod Holder
Instructions
Part #: 1016581
Dock Type Bracket Part Number
RS4 Dock 1006706
RS7 Dock 1006708
RS9 Dock 1006730
Poly Dock 1006608
Note: QC Fishing Rod holder will be attached to
one of four different type of Accessory Dock
Connectors in order to be attached to your dock.
Below is a list of the four different types of docks
and the required bracket.
Connect QC Fishing Rod holder to accessory
bracket (Sold Separately) according to accessory
bracket instructions.
DETAIL B
DETAIL A
B
A
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Cleat Attachment Bracket
100275921
Cleat
100108912
Screw 5/16 x 2.25
100052623
L
3
2
1
1

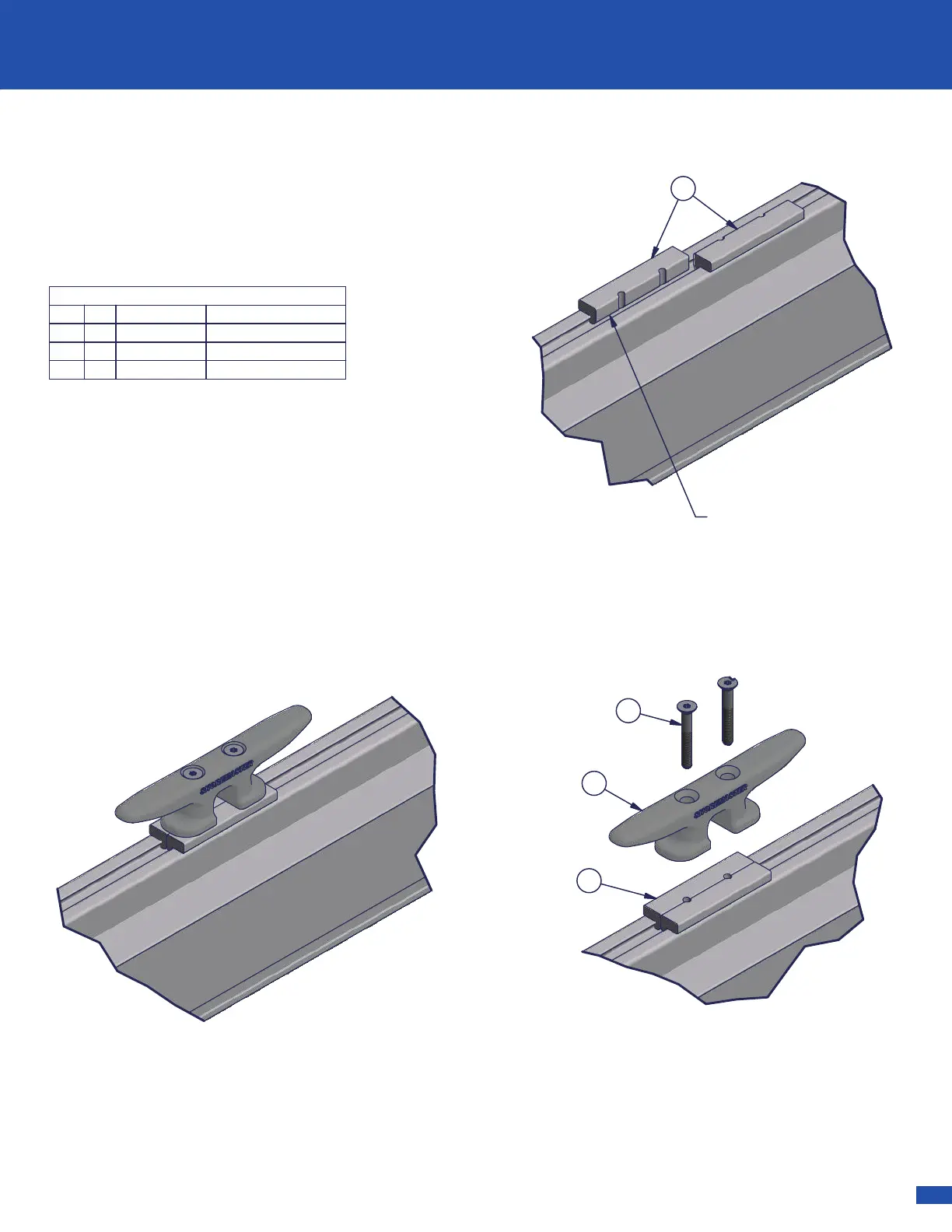

Step 1. Insert two Cleat Attachment
Brackets 4.0 into the Attachment Groove on
the top of the dock rail and slide together - as
shown in Detail "A".
Step 2. Set the Plastic Cleat 8.0 on the two
Cleat Attachement Brackets 4.0 and secure
with two 5/16 x 2 1/4 Screws using a Torx bit
driver - as shown in Detail "B".
Attachment Groove
QC Cleat Kit
Instructions
Part #: 1006655
