ACCESSORY INSTALLATION
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Poly Vertical Roto Bumper Black
100426111
Poly Vertical Roto Bumper Blue10042551
Poly Vertical Roto Bumper Tan
10042561
Poly Vertical Roto Bumper White10042541
QC Vertical Bumper Bracket w/Bolt Bag
10042651
-
QC Vertical Bumper Bracket Weldment
100379012
Slider Leg 37.75" Vert. Roto Bumper
100311913
Gray Cap 2 X 2 X 2
100086824
Bolt Bag Qc Vertical Bumper Bracket
10044331
-
Washer Flat 3/8 SS
10025993
5
Nut Flange 3/8-16 Brass
1001802
4
6
Nut Nyloc 3/8-16 Brass
10018053
7
Bolt Carriage 3/8-16 x 4.0 SS 304
100196328
Bolt Carriage 3/8-16 x 1.0 SS 304
1001956
5
9
Note: QC Vertical Dock Bumper will be attached to one of four
different type of Accessory Dock Connectors in order to be
attached to your dock. Below is a list of the four different types of
docks and the required bracket.
Dock Type
Bracket Part Number
RS4 Dock 1006706
RS7 Dock 1006708
RS9 Dock 1006730
Poly Dock 1006608
Note: In order to attach vertical dock bumper to a dock not listed
above use two 3/8 x 3-1/2 Carriage Bolts and two 3/8 Flange
Nuts (provided).
4
6
8
1
5
7
9
3
2

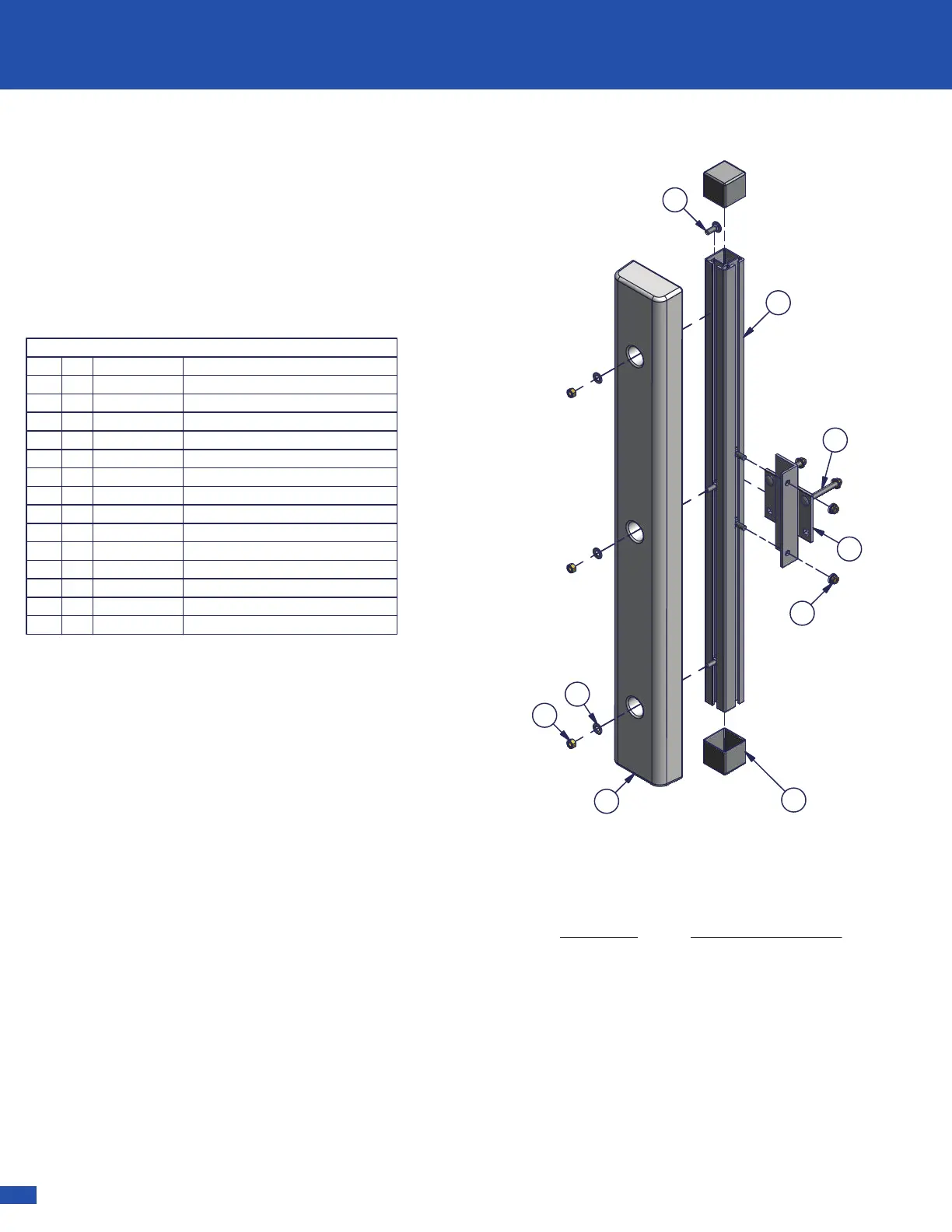

QC Vertical Roto Bumper
Instructions
Part #: 1006690 (Black)
Part #: 1006691 (Blue)
Part #: 1006692 (Tan)
Part #: 1006693 (White)
Step 1
. Attach QC accessory bracket to QC
vertical bumper bracket weldment using
hardware from QC accessory bracket 3/8 x 1
Carriage Bolts and 3/8 Flange Nuts.
Step 2.
Attach QC vertical bumper bracket to
slider leg (at desired height) using 3/8 x 1
Carriage Bolts and 3/8 Flange Nuts.
Step 3.
Attach Roto Bumper to slider leg using
3/8 x 1 Carriage Bolts and 3/8 Flange Nuts (set
to desired height before tightening nuts).
Step 4.
Slide the caps onto top and bottom of
slider leg.
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
QC Vertical Bumper Bracket Weldment
100379021
Slider Leg 37.75" Vert. Roto Bumper
100311922
Weldment QC - Canoe / Kayak Rack Arm
101676623
Bolt Bag QC - Canoe / Kayak Rack
10167651
--
Cap Blue #14 - 2.0 x 2.0 x 2.0
100181564
Bolt Carriage 3/8-16 x 1.0 SS 304
10019568
5
Nut Flange 3/8-16 Brass
100180286
RS4 QC Accessory Bracket (sold separate)
10067062
7
RS7 QC Accessory Bracket (sold separate)
10067082
7
TS9 QC Accessory Bracket (sold separate)
10067302
7
Poly Dock 6" Accessory Bracket (sold separate)
10066082
7
4
3
6
2
5
7
1
3
2
.
0
0
37
.
7
5
Note: Arm is 32" long and has
about 36" of vertical adjustment.
Added for
double option.
QC Canoe / Kayak Rack (Pair)
Instructions
Part #: 1016764
Step 1. Attach QC accessory bracket (sold
separately) to QC vertical bumper bracket weldment
using hardware from QC accessory bracket 3/8 x 1
Carriage Bolts and 3/8 Flange Nuts.
Step 2.
Attach QC vertical bumper bracket to slider
leg (at desired height) using 3/8 x 1 Carriage Bolts and
3/8 Flange Nuts.
Step 3.
Attach QC canoe / kayak rack arm to slider
leg using 3/8 x 1 Carriage Bolts and 3/8 Flange Nuts
(set to desired height before tightening nuts).
Step 4.
Slide the caps onto top and bottom of slider
leg and on end of QC canoe / kayak rack arm.
Step 5.
Attach QC canoe / kayak rack to dock using
accessory bracket, space racks apart so the racks are
towards the end of the canoe or kayak.
Note: Use a bungee cord to secure canoe or kayak to
rack. Use the holes in the bottom of QC canoe / kayak
rack arm to secure the bungee cord.
