Step 14. Place the assembled canopy frame into the exposed U-shaped channels (saddles) of the
canopy legs. Slide the canopy frame into desired position.
Step 15. Place canopy cover over canopy frame. Position cover so it fits equally over the entire frame.
Note: Frame position should match estimated boat and motor position. Most boats are positioned forward
in lift to provide proper balance and support. The side access door should be near the center of the lift.

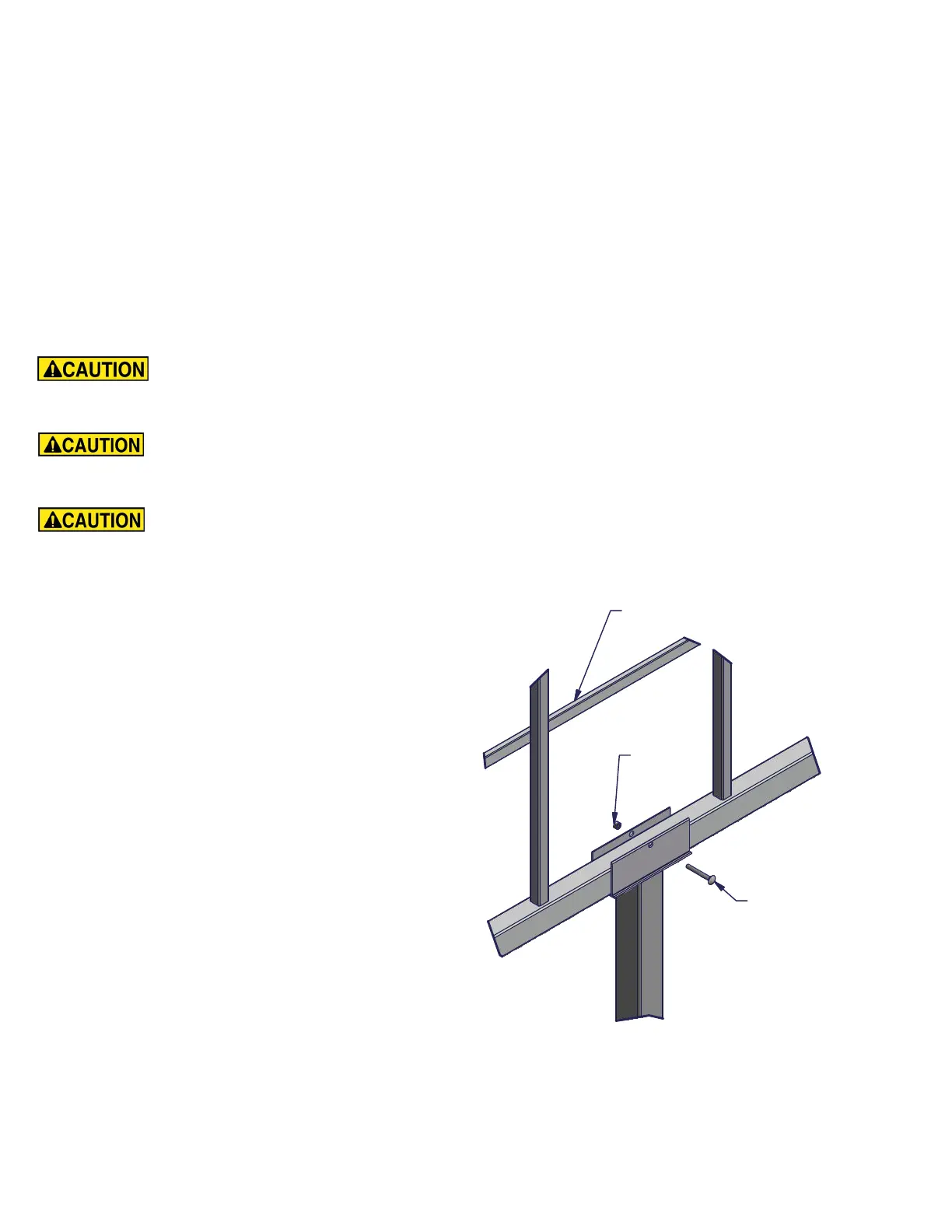

Step 16. Bolt the frame in position with four 5/16 carriage bolts, 5/16 nuts, and 5/16 washers. One
attached to each canopy leg as shown. Make sure head of carriage bolt is facing to the outside of the lift
as shown.
To avoid personal injury attach nuts and bolts holding canopy frame to canopy legs very
tight. Not securing this properly could result in frame sliding or falling out of position resulting in damage to
canopy, boat, or lift. A falling or slipping canopy could cause injury to anyone in the area.
Canopy cover is a hazard if exposed to high winds! To avoid personal injury do not attach
cover to canopy frame if wind affects your ability to safely fasten. Do not leave cover unattended on frame
when attaching.
Stretching and attaching bungee cords requires strength and proper balance. To avoid
personal injury always wear proper protective clothing and safety glasses. Do not let go of bungee cords
when under tension. An eye injury or other bodily injury could occur.
Step 17. Be sure the frame is in the desired
position before proceeding.
Step 18. Secure the cover to the frame with
the bungee cords on the inside of the cover.
Take the bungee cord and pull it toward the
outside of the canopy frame, down around the
bottom beam of the canopy frame, and hook
the end to the welded angle strip on the
inside of the canopy bows.
NOTE: Bungees are only needed at every
rib/bow of the cover. On the door end, wrap
bungees around the door opening to the
canopy bows. Some adjustments may be
needed to keep the cover from wrinkling.
Hex Nut
Carriage Bolt
Bungee Attachment Angle
