Shoremaster TowerMax - Wiring Information

BATTERY
MALE
CONNECTOR
FEMALE
CONNECTOR
REMOTE
BOX
MALE
CONNECTOR
FEMALE
CONNECTOR
MALE
CONNECTOR
FEMALE
CONNECTOR
A
C
T
U
A
T
O
R
A
C
T
U
A
T
O
R
FEMALE
CONNECTOR
MALE
CONNECTOR
MALE
CONNECTOR
FEMALE
CONNECTOR
REMOTE
BOX
FEMALE
CONNECTOR
MALE
CONNECTOR
TRANSFORMER

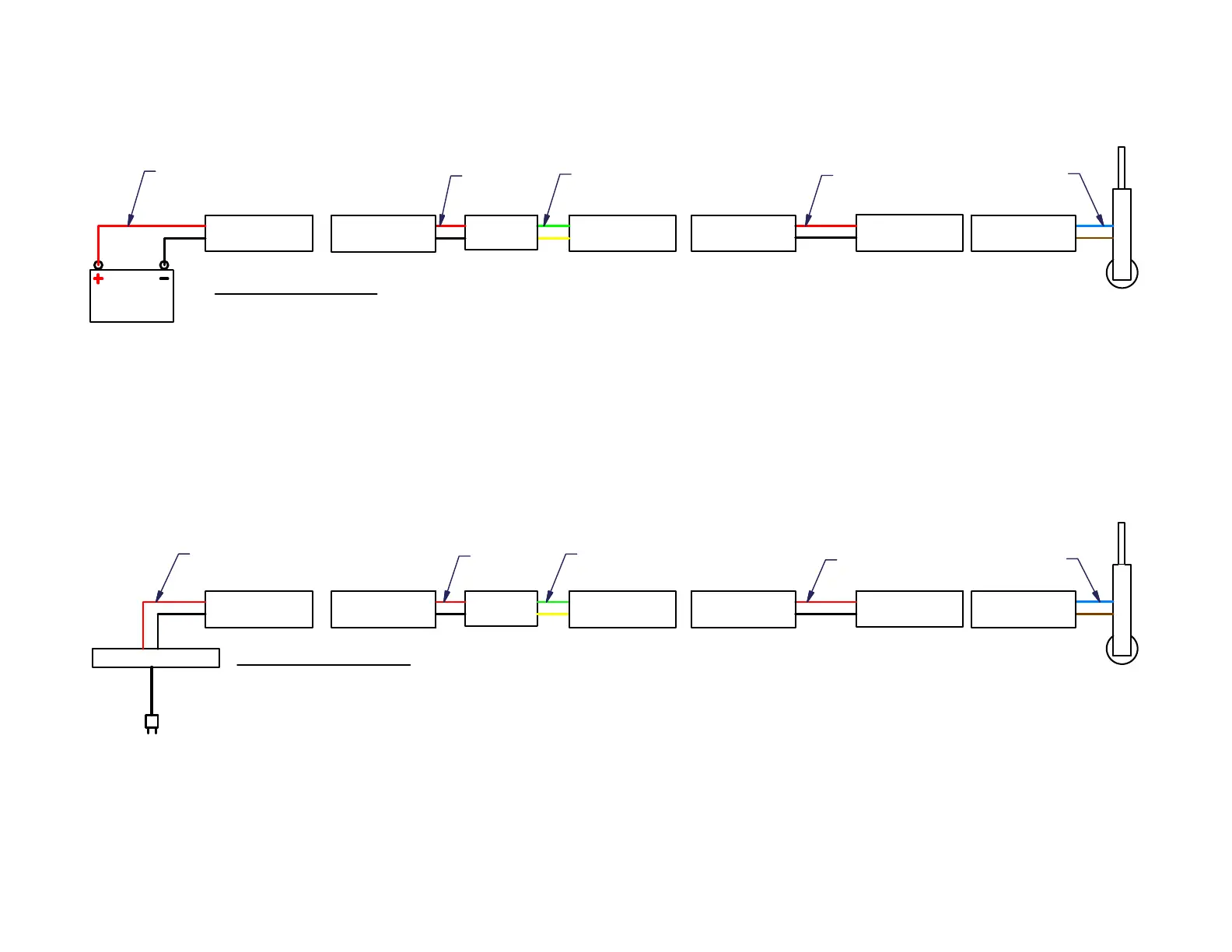

Wiring Information
12V DC System: Connect ring terminals to positive and negative terminals on one battery. The red
wire should go to the (+) terminal. The black wire should go to the (-) terminal. Connect the other side
(male connector) to the female connector of the remote box, this should also have a red and black wire.
Connect the other side of the remote box with a male connector (green and yellow wire) to the female
connector side of the 20ft harness. Connect the other side of the 20ft harness to the wiring harness of
the actuator.
Use the zip ties to tie the wiring to the canopy structure, out of the way.
120V AC System: Connect the male connector side of the transformer to the female side of the
remote box. Connect the other side of the remote box (male connector) to the female connector of the
20ft harness.Connect the other side of the 20ft harness to the wiring harness of the actuator.
Plug the 120V plug on the transformer into the provided GFCI splitter. This can be used to run your
motor as well and should be plugged into your power supply to the lift.
Use the zip ties to tie the wiring to the canopy structure, out of the way.
Consult a qualified electrician for installation or any additional questions.
RED
RED
GREEN
RED
BLUE
RED
RED
GREEN
RED
BLUE
