E N
Nome file:
7540028EN - CUSTOMER MANUAL SF15_200 TOP EN.docx Rev. 1 12/06/2017
15-28

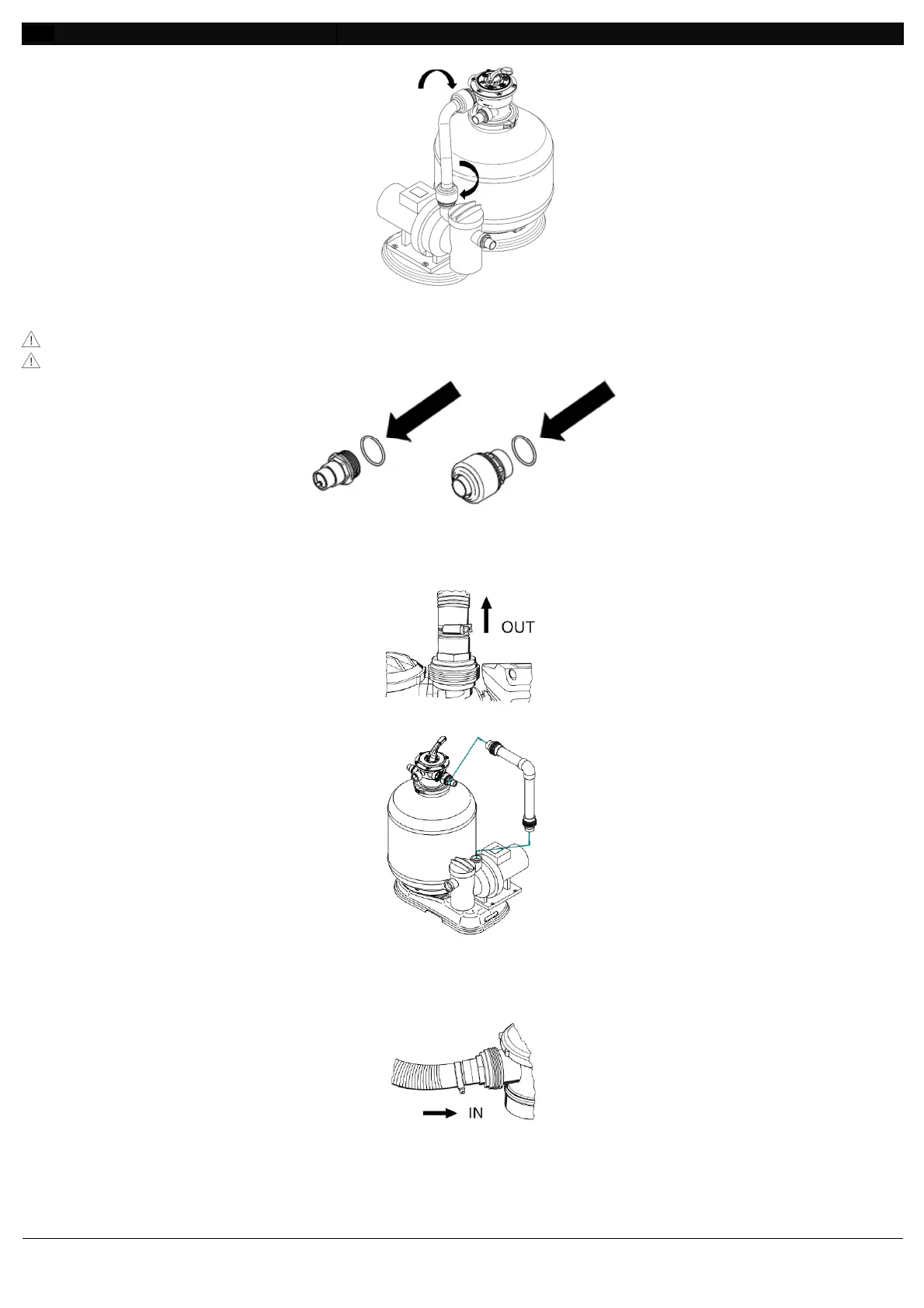

Fig. 25
Connection to the skimmer and to the pump.
5.6.4
Apply some supplied teflon around the hose connector (hydraulic parts) to guarantee a safe sealing.
Position the O-rings on the hosetail (Fig. 26).
Fig. 26
1. Pressure connection (Fig. 30, # 1): join the filter pump (outlet Fig. 27, OUT) to the multifunction
valve (PUMP), using the corrugated pipes or the rigid connection (Fig. 28).
Fig. 27
Fig. 28
2. Skimmer tube (Fig. 30, # 2): join the skimmer connection to the frontal connection of the filter
pump (inlet Fig. 29, IN).
Fig. 29
3. Return-tube (Fig. 30, # 3): join the connection on the 4 or 6 ways multifunctional valve marked with
RETURN/POOL to the entrance mouth connection of the swimming pool. Tight with special hose
clamps the tubes on the connections (hydraulic parts).
